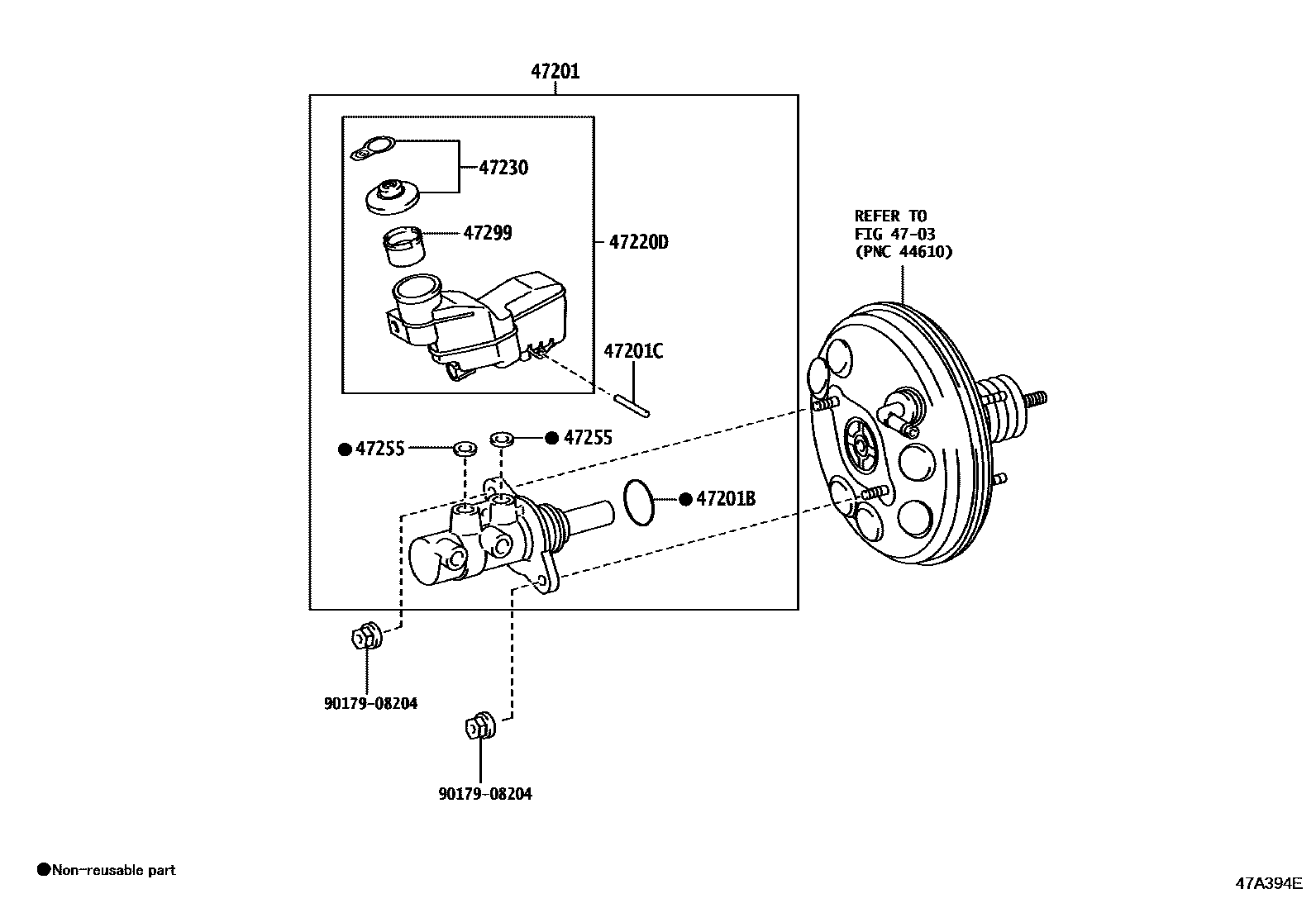

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D510iNSP170..CVT..G..TH201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47201-0D510iNSP170..CVT..(E,G,V)..IDN201907

main47201-0D520iNSP170..Q;NSP170..CVT..TH201607-201907

main47201-0D530iNSP170..6F..TH201607-202203

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNSP170201607-201910

main90016-AH903iNSP170..6F..TH201910-202203

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP170..CVT;NSP170..6F..IDN201607-202203

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D270iNSP170..CVT201607-201907

main47220-0D280iNSP170..6F201607-202203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iNSP170..CVT;NSP170..6F..IDN201607-202203

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT004iNSP170201607-202203

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iNSP170201607-202203

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
