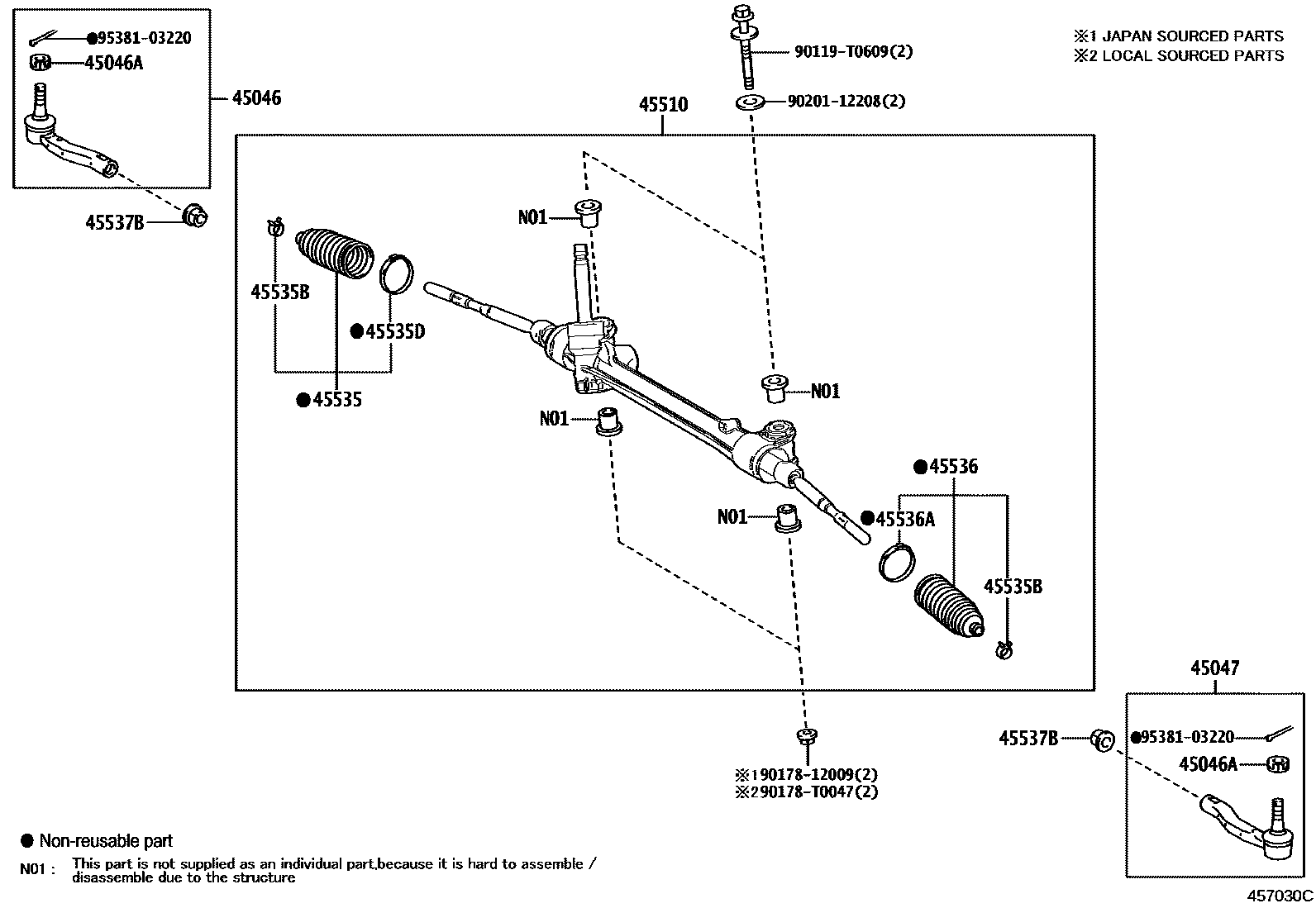

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09760iNSP170..CVT;NSP170..6F..IDN201607-202203

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNSP170..CVT;NSP170..6F..IDN¥130201607-202203

(J)

main90171-T0004iNSP170..CVT;NSP170..6F..IDN201607-202203

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09390iNSP170201607-202203

45510GEAR ASSY, STEERING

main45510-0D440iNSP170..E,G201607-202203

main45510-0D560iNSP170..Q,V201607-201907

45535BOOT, STEERING RACK, NO.1

main45535-09330iNSP170..6F..TH201607-202203

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D090iNSP170201607-202203

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D030iNSP170201607-202203

45536BOOT, STEERING RACK, NO.2

main45535-09330iNSP170201607-202203

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D030iNSP170201607-202203

45537BNUT, RACK END LOCK

main90170-14012iNSP170¥110201607-202203

90119T0609

main90119-T0609

9017812009

main90178-12009¥120

90178T0047

main90178-T0047

9020112208

main90201-12208¥190

9538103220

main95381-03220¥70

15 parts on this diagram · 1 diagram in section
