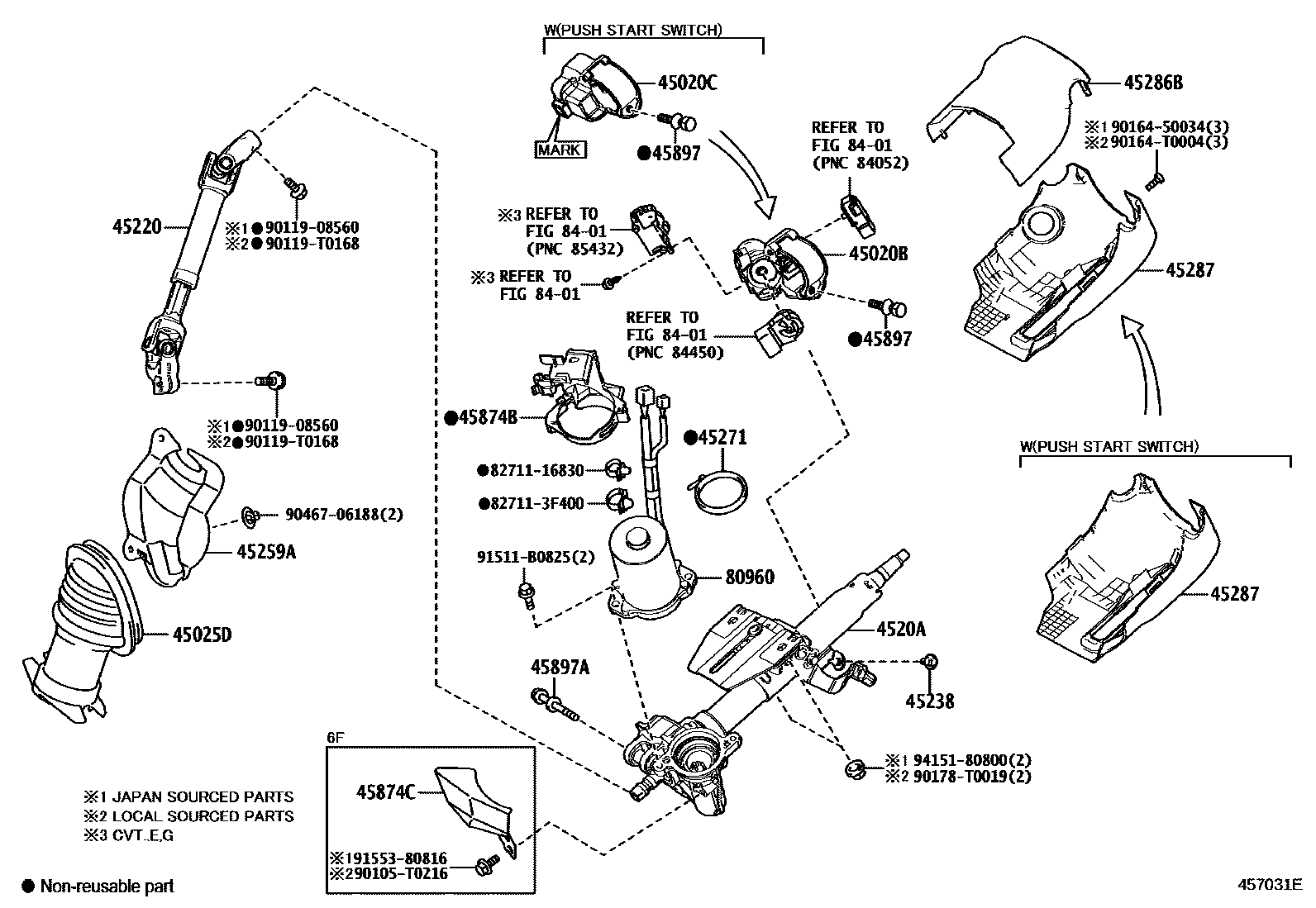

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0D210iNSP170..CVT..(E,G)201607-201907

main45280-0D220iNSP170..6F..TH201607-202203

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K210iNSP170..Q,V201907

main45020-0K210iNSP170..Q,V201807-201907

MARK T:REFER ILLUST.

main45020-30B20iNSP170..Q,V¥14,300201607-201807

MARK A:REFER ILLUST.

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D190iNSP170201607-202203

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D010iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201607-202203

main4520A-0D020iNSP170..Q,V201607-201907

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D030iNSP170201607-202203

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP170¥70201607-202203

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D210iNSP170201607-202203

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNSP170¥90201607-202203

45286BCOVER, STEERING COLUMN, UPR

main45286-0D260-C0iNSP170..E,G201607-202203

BLACK,TRIM2#

main45286-0D270-C0iNSP170..Q,V201907

BLACK,TRIM2#

main45286-0D270-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

45287COVER, STEERING COLUMN, LWR

main45287-0D220-C0iNSP170..6F..TH201607-202203

BLACK,TRIM2#

main45287-0D230-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main45287-0D230-C0iNSP170..Q,V201907

BLACK,TRIM2#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iNSP170¥1,260201607-202203

45874CPROTECTOR, STEERING COLUMN, NO.1

main45874-0D050iNSP170..6F..TH201607-202203

45897BOLT, STEERING LOCK SET

main45897-12020iNSP170..6F..TH¥210201607-202203

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iNSP170..6F..TH¥190201607-202203

(J)

main90119-T0441iNSP170..6F..TH201607-202203

(L)

80960MOTOR ASSY, POWER STEERING

main80960-0D190iNSP170201607-201907

main80960-0D380iNSP170..6F..TH201907-202203

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830¥100

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400¥130

90105T0216

main90105-T0216

9011908560

main90119-08560¥110

90119T0168

main90119-T0168

9016450034

main90164-50034¥70

90164T0004

main90164-T0004¥110

90178T0019

main90178-T0019

9046706188

main90467-06188¥160

91511B0825

main91511-B0825¥140

9155380816

main91553-80816¥80

9415180800

main94151-80800¥80

28 parts on this diagram · 1 diagram in section
