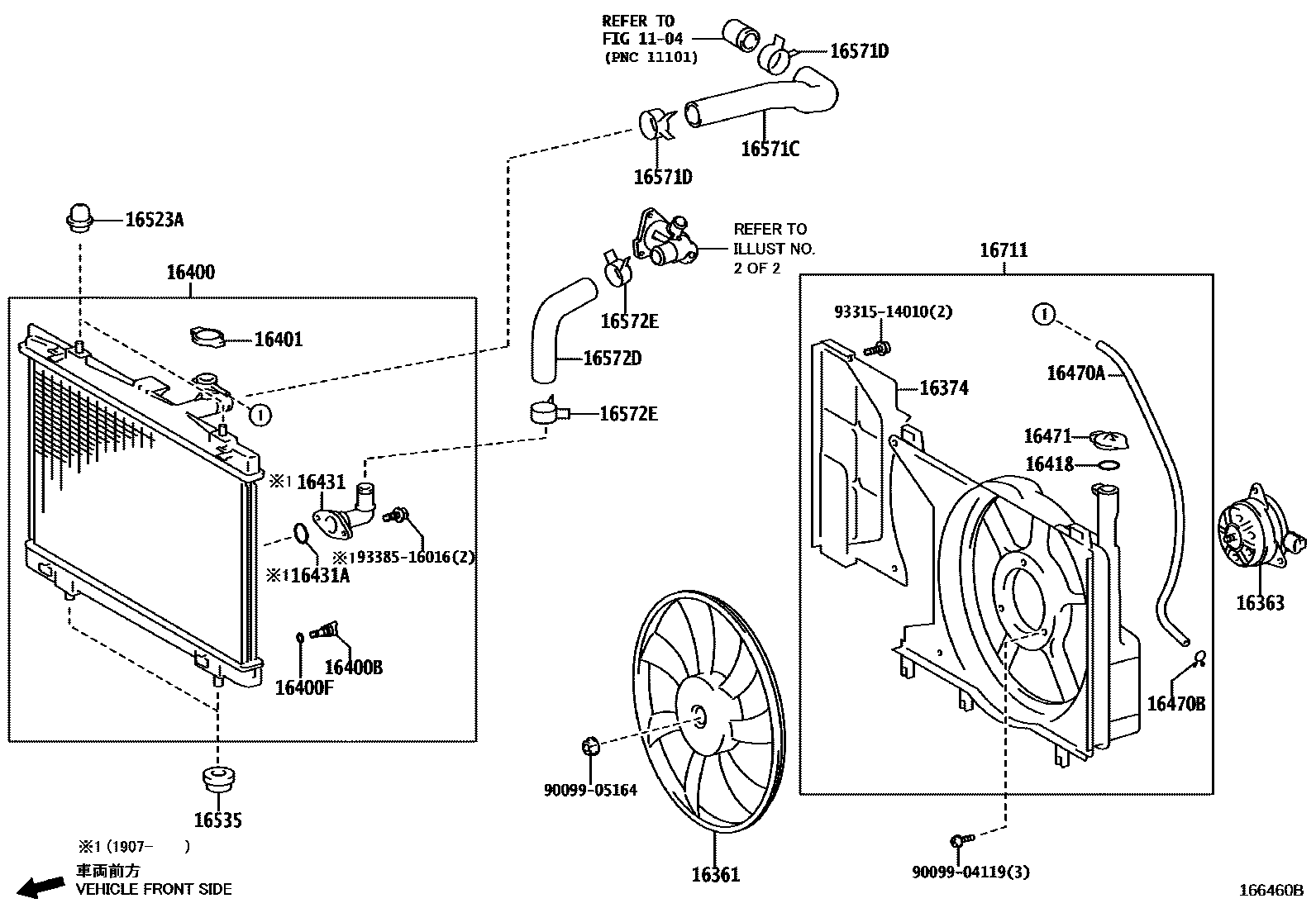

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1SINGAPORE SPEC 0005 1

1104

16361FAN

main16361-0M120i2NRFE..NSP170..6F..TH201607-202203

16363MOTOR, COOLING FAN

main16363-0Y050i2NRFE..NSP170201607-202006

main16363-0Y140i2NRFE..NSP170..6F..TH202007-202203

16374INSULATOR, COOLING FAN MOTOR

main16366-0Y120i2NRFE..NSP170201607-202007

16400RADIATOR ASSY

main16400-0Y130i2NRFE..NSP170201607-202203

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2NRFE..NSP170201607-202203

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2NRFE..NSP170201607-202203

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i2NRFE..NSP170201902-202203

16418PACKING

main16476-0M150i2NRFE..NSP170201607-202007

16431INLET, RADIATOR WATER

main16431-0Y190i2NRFE..NSP170..6F..TH201907-202203

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y130i2NRFE..NSP170..6F..TH201907-202203

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0Y120i2NRFE..NSP170201607-202007

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2NRFE..NSP170201607-202007

16471CAP SUB-ASSY, RESERVE TANK

main16376-0M150i2NRFE..NSP170201607-202007

16523ACUSHION, RADIATOR SUPPORT

main16523-0M030i2NRFE..NSP170201607-202203

16535SUPPORT, RADIATOR, LOWER

main90480-22025i2NRFE..NSP170201607-202203

16571CHOSE, RADIATOR, NO.1

main16571-0Y100i2NRFE..NSP170201607-201610

sub16571-0Y101

main16571-0Y280i2NRFE..NSP170201610-202203

16571DCLIP, RADIATOR HOSE, NO.1

main90467-33006i2NRFE..NSP170201607-201907

main96136-43901i2NRFE..NSP170..6F..TH201907-202203

16572DHOSE, RADIATOR, NO.2

main16572-0Y120i2NRFE..NSP170201607-201610

main16572-47150i2NRFE..NSP170201610-202203

16572ECLIP, RADIATOR HOSE, NO.2

main90467-33006i2NRFE..NSP170201607-201907

main96136-43901i2NRFE..NSP170..6F..TH201907-202203

16711SHROUD, FAN

main16711-0Y090i2NRFE..NSP170201607-202203

9009904119

main90099-04119

9009905164

main90099-05164

9331514010

main93315-14010

9338516016

main93385-16016

25 parts on this diagram · 5 diagrams in section
