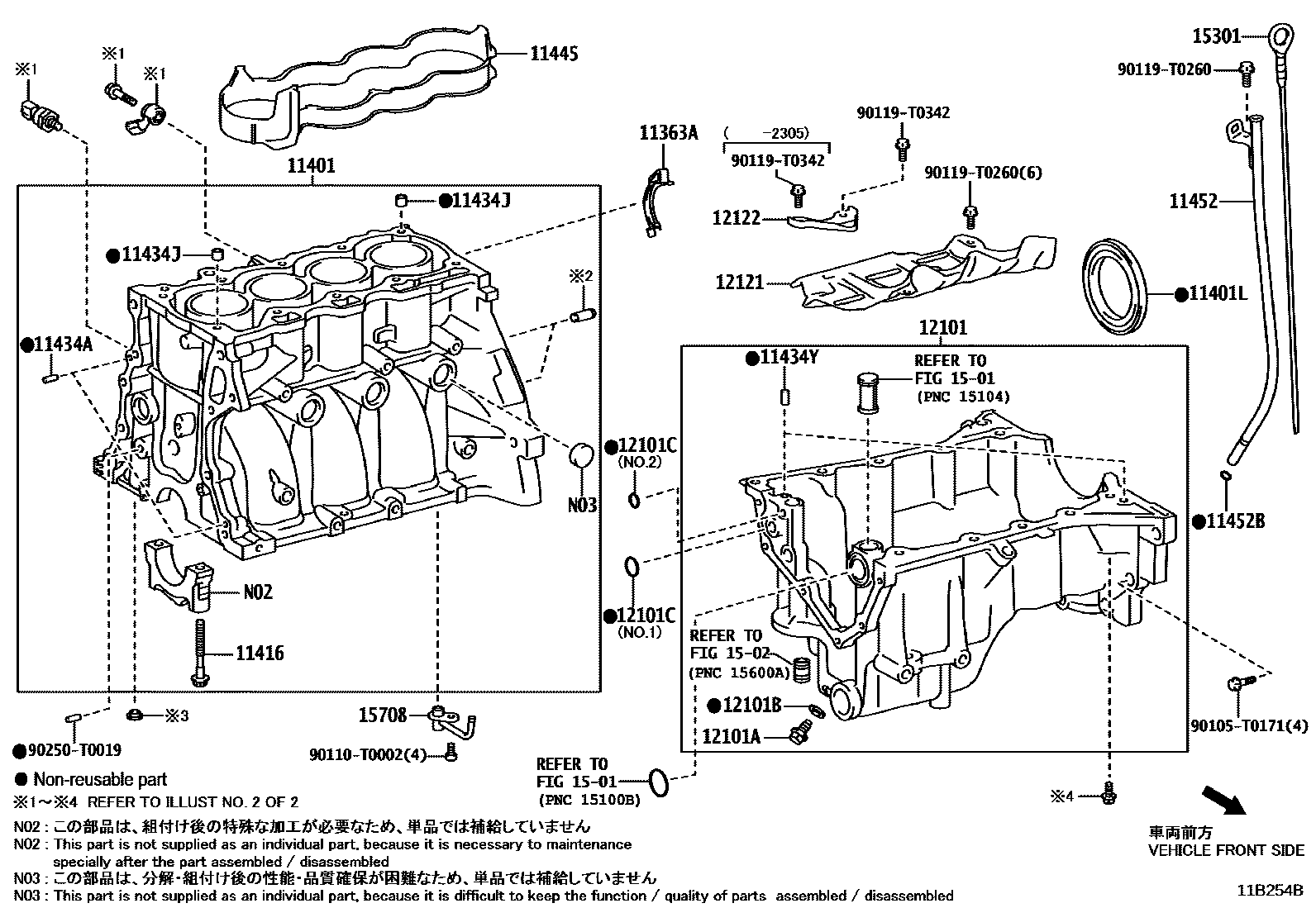

CYLINDER BLOCK

0001 1 0002 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Y020i2NRFE..NSP170..6F..TH201607-202203

11401BLOCK SUB-ASSY, CYLINDER

main11410-09700i2NRFE..NSP170201607-202203

11401LSEAL, ENGINE REAR OIL

main90311-T0074i2NRFE..NSP170¥1,390201607-202203

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-T2013i2NRFE..NSP170201607-202203

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2NRFE..NSP170¥50201607-202203

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i2NRFE..NSP170¥140201607-202203

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i2NRFE..NSP170¥140201607-202203

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i2NRFE..NSP170201607-202203

11452GUIDE, OIL LEVEL GAGE

main11452-0Y020i2NRFE..NSP170201607-202203

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-T0060i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN¥130201607-202203

12101PAN SUB-ASSY, OIL

main12101-0Y040i2NRFE..NSP170..6F..TH201607-202203

12101APLUG(FOR OIL PAN DRAIN)

main90341-T0017i2NRFE..NSP170201607-202203

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-T0024i2NRFE..NSP170..6F..TH201607-202203

12101CRING, O(FOR OIL PAN)

main90301-T0055i2NRFE..NSP170201607-202203

NO.2:REFER ILLUST.

main90301-T0057i2NRFE..NSP170201607-202203

NO.1:REFER ILLUST.

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y030i2NRFE..NSP170201607-202203

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-0Y010i2NRFE..NSP170201607-202305

main12122-0Y011i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN202305

1501

1502

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Y010i2NRFE..NSP170201607-202203

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040i2NRFE..NSP170¥820201607-202203

90105T0171

main90105-T0171¥120

90110T0002

main90110-T0002

90119T0260

main90119-T0260

90119T0342

main90119-T0342

90250T0019

main90250-T0019

25 parts on this diagram · 2 diagrams in section
