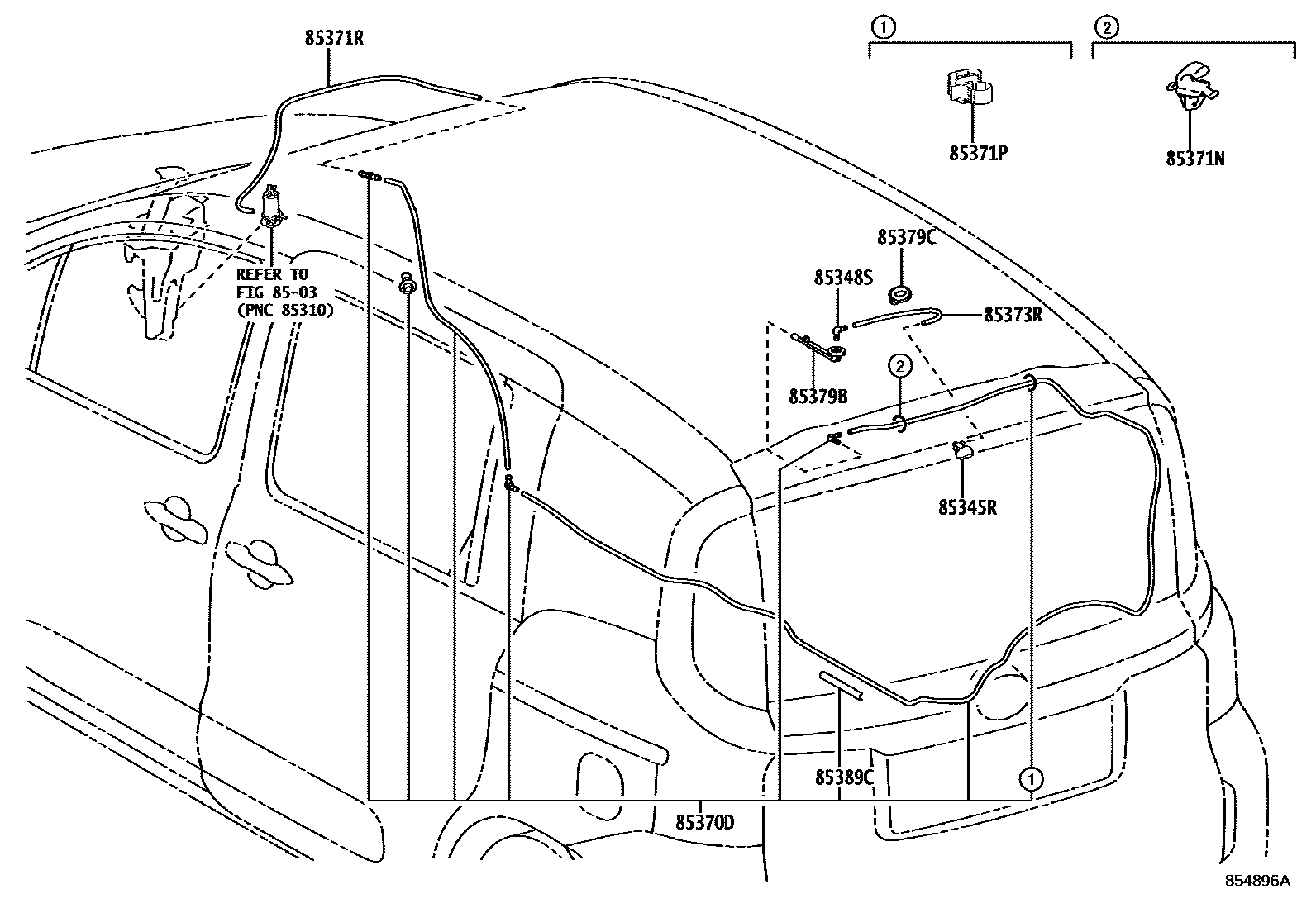

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-52240iMXPC10..N202207-202405

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iMXPC10..N202207-202405

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-52750iMXPC10..N202207-202405

85371NCLAMP, REAR WASHER HOSE

main85371-12040iMXPC10..N202207-202405

85371PCLAMP, REAR WASHER HOSE, NO.2

main82711-45020iMXPC10..N202207-202405

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62226iMXPC10..N202207-202405

L=820

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iMXPC10..N202207-202405

L=1450(*H,L=310)

85379BGROMMET, WASHER, A

main85372-20040iMXPC10..N202207-202405

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20020iMXPC10..N202207-202407

main85373-52030iMXPL10;MXPC10..U202408

85389CPROTECTOR, WASHER

main85389-12880iMXPC10..N202207-202405

11 parts on this diagram · 1 diagram in section
