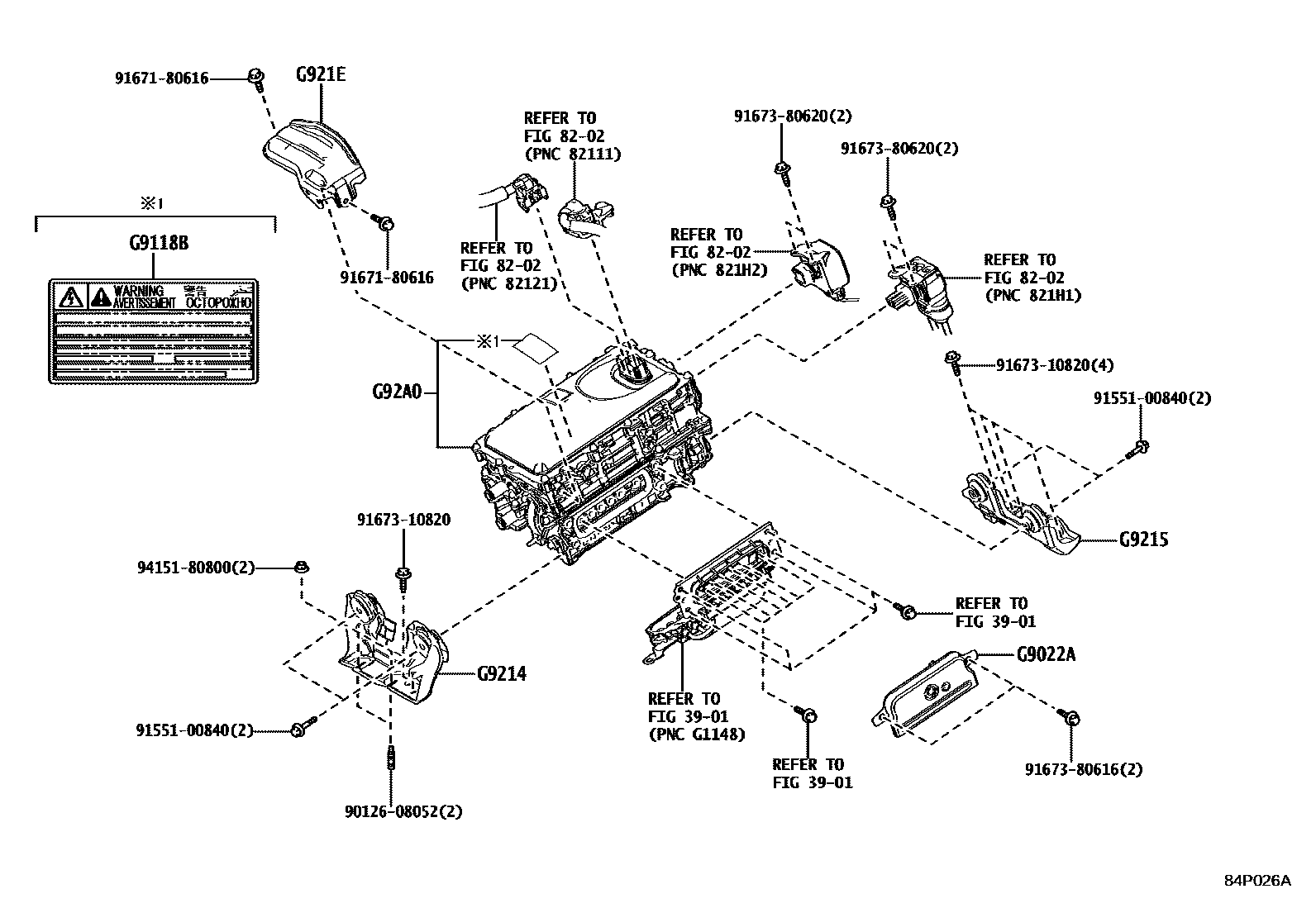

HEV INVERTER

0001 1 0002 1HV CONVERTER KIT

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iMXPL10202207

G9118BLABEL, POWER CONTROL UNIT CAUTION

mainG911876010iMXPL10202207

G9214BRACKET, INVERTER, NO.1

mainG9214K0010iMXPL10202207

G9215BRACKET, INVERTER, NO.2

mainG9215K0010iMXPL10202207

G921EPROTECTOR, INVERTER

mainG921EK0010iMXPL10202207

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A0K2011iMXPL10202207-202404

subG92A0-K2012

mainG92A0K2012iMXPL10202405

9012608052

main90126-08052

9155100840

main91551-00840

9167180616

main91671-80616

9167310820

main91673-10820

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
