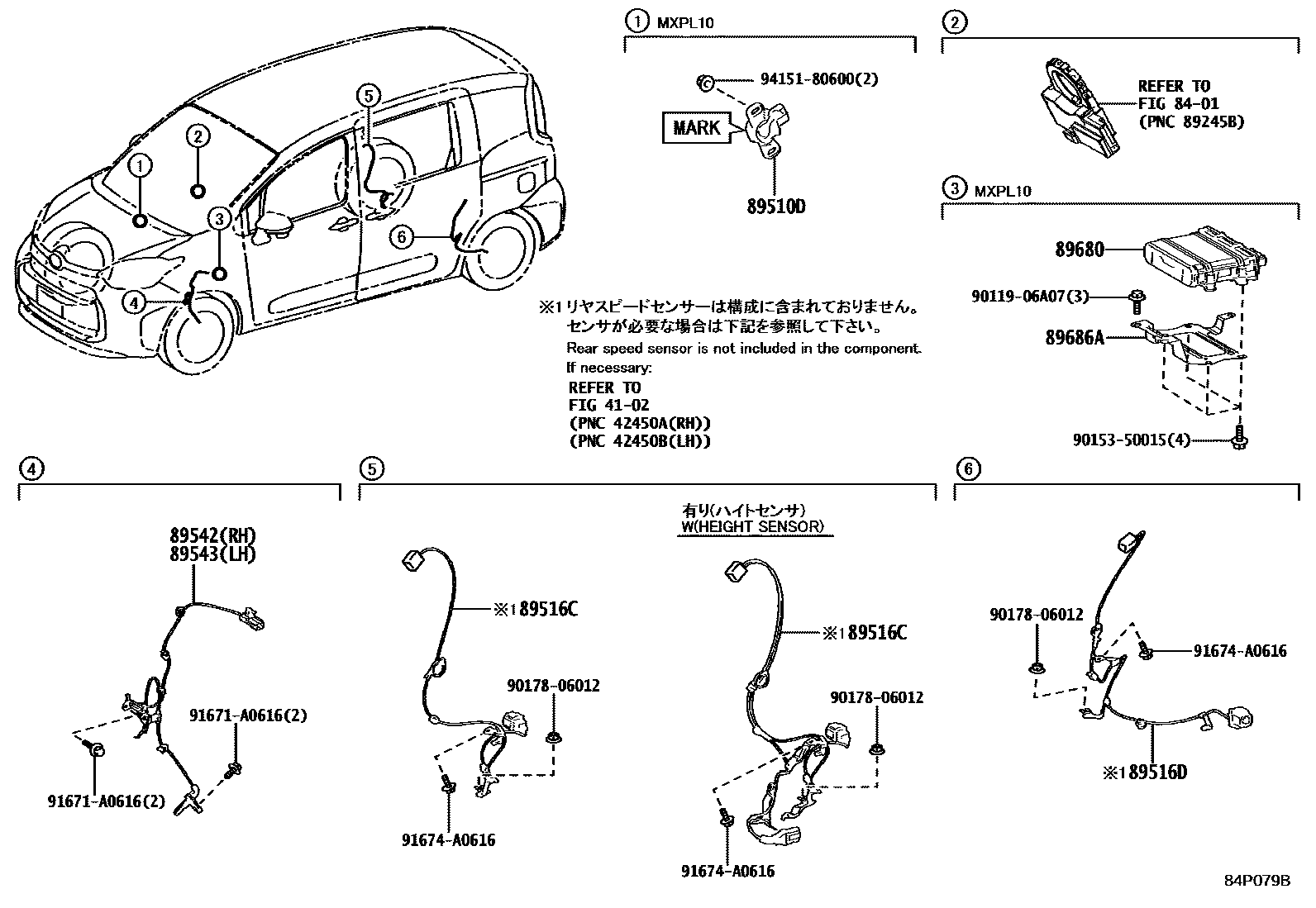

ABS & VSC

4102

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iMXPL10¥7,900202207-202212

P/N LABEL=8951042020

main89510-47030iMXPL10¥7,900202212-202508

P/N LABEL=8951047030

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52210iMXPC10..N¥1,430202207-202508

main89516-52230iMXPC10,MXPL10..U¥3,750202207-202508

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52220iMXPC10..N¥1,430202207-202508

89542SENSOR, SPEED, FRONT RH

main89542-K0011iMXPC10..N¥8,100202207-202405

89543SENSOR, SPEED, FRONT LH

main89543-K0011iMXPC10..N¥8,100202207-202405

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iMXPL10¥24,900202207

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-52010iMXPL10¥1,050202207

9011906A07

main90119-06A07¥60

9015350015

main90153-50015¥60

9017806012

main90178-06012¥80

91671A0616

main91671-A0616¥60

91674A0616

main91674-A0616¥60

9415180600

main94151-80600¥60

15 parts on this diagram · 1 diagram in section
