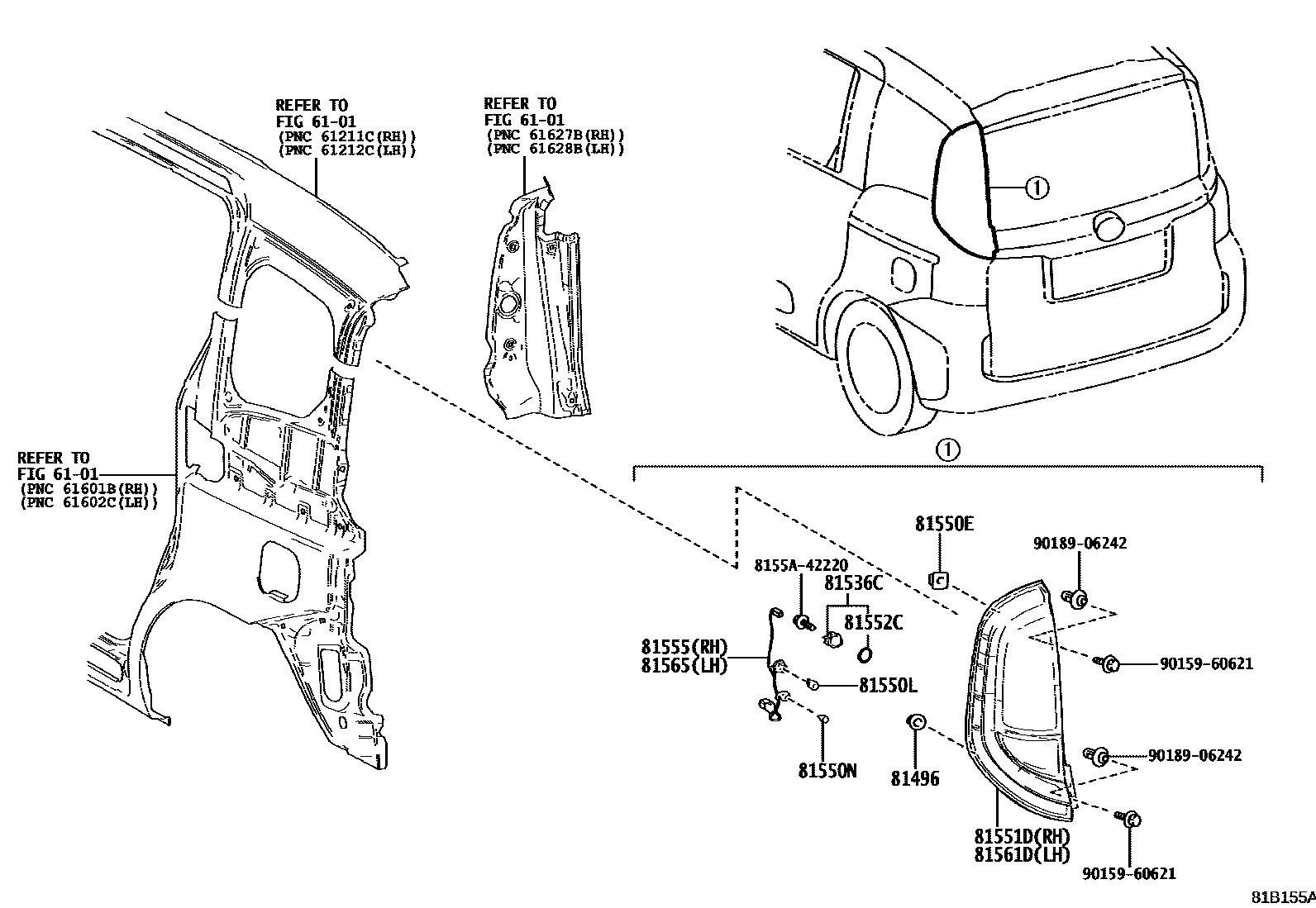

REAR COMBINATION LAMP

0001 1HEADLAMP=WITHOUT(*AHS) 0002 1HEADLAMP=WITH(*AHS)

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iMXPC10..N202207-202405

81536CLED, TAIL & STOP LAMP

main81536-42230iMXPC10..N202207-202405

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040iMXPC10..N202207-202405

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iMXPC10..N202207-202405

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iMXPC10..N202207-202405

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52F60iMXPC10..N202207-202405

main81551-52F70iMXPC10,MXPL10..U202207

81552CGASKET, REAR COMBINATION LAMP

main81538-42200iMXPC10..N202207-202405

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52F60iMXPC10..N202207-202405

main81555-52F70iMXPC10,MXPL10..U202207

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52F60iMXPC10..N202207-202405

main81561-52F70iMXPC10,MXPL10..U202207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52F60iMXPC10..N202207-202405

main81555-52F70iMXPC10,MXPL10..U202207

8155A42220

main8155A-42220

9015960621

main90159-60621

9018906242

main90189-06242

14 parts on this diagram · 2 diagrams in section
