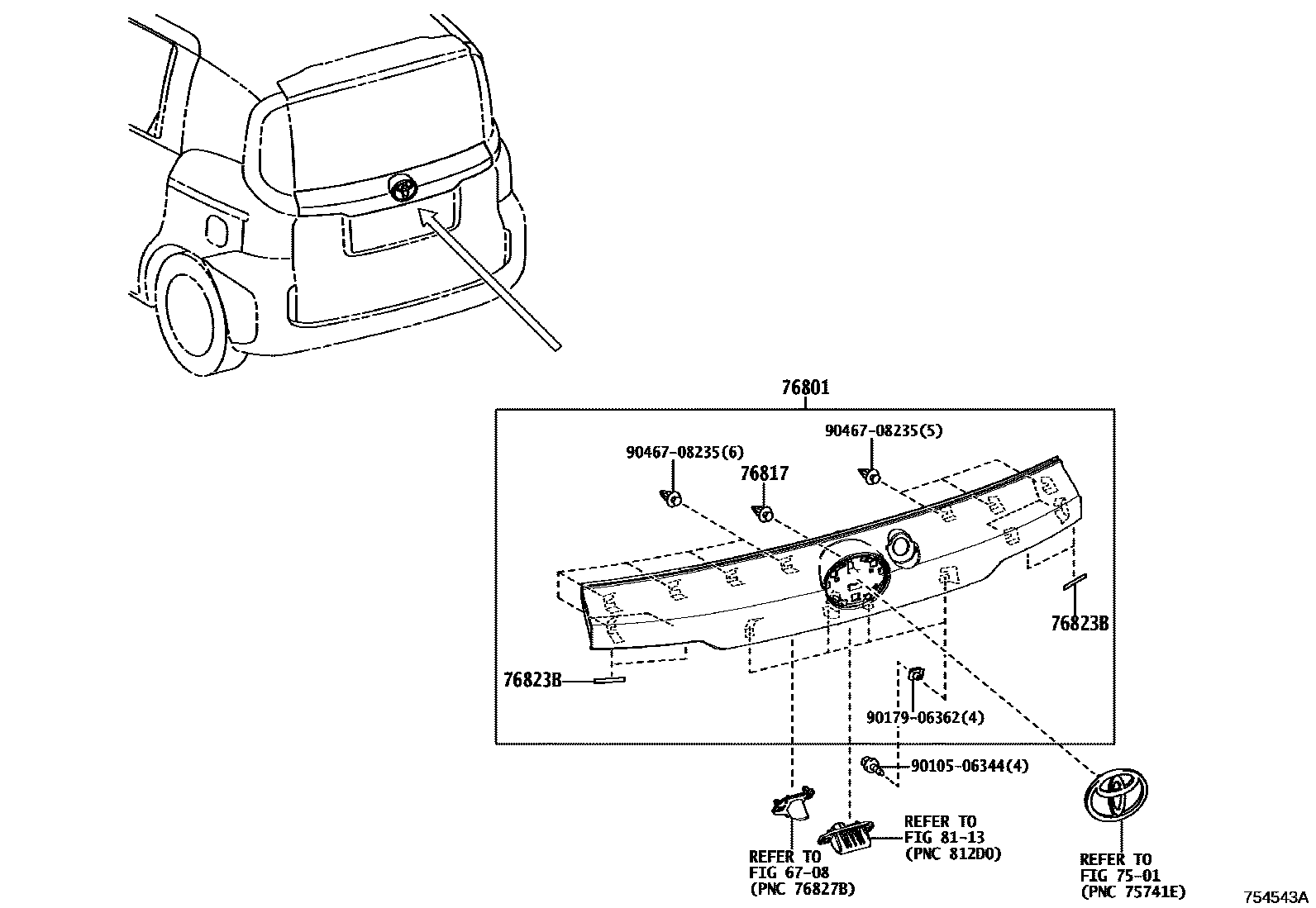

REAR MOULDING

6708

7501

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52570iMXPC10..N¥18,600202207-202405

NO PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iMXPC10..N¥80202207-202405

76823BPROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE

main76824-42030iMXPC10..N¥280202207-202405

8113

9010506344

main90105-06344¥60

9017906362

main90179-06362¥60

9046708235

main90467-08235¥60

9 parts on this diagram · 1 diagram in section
