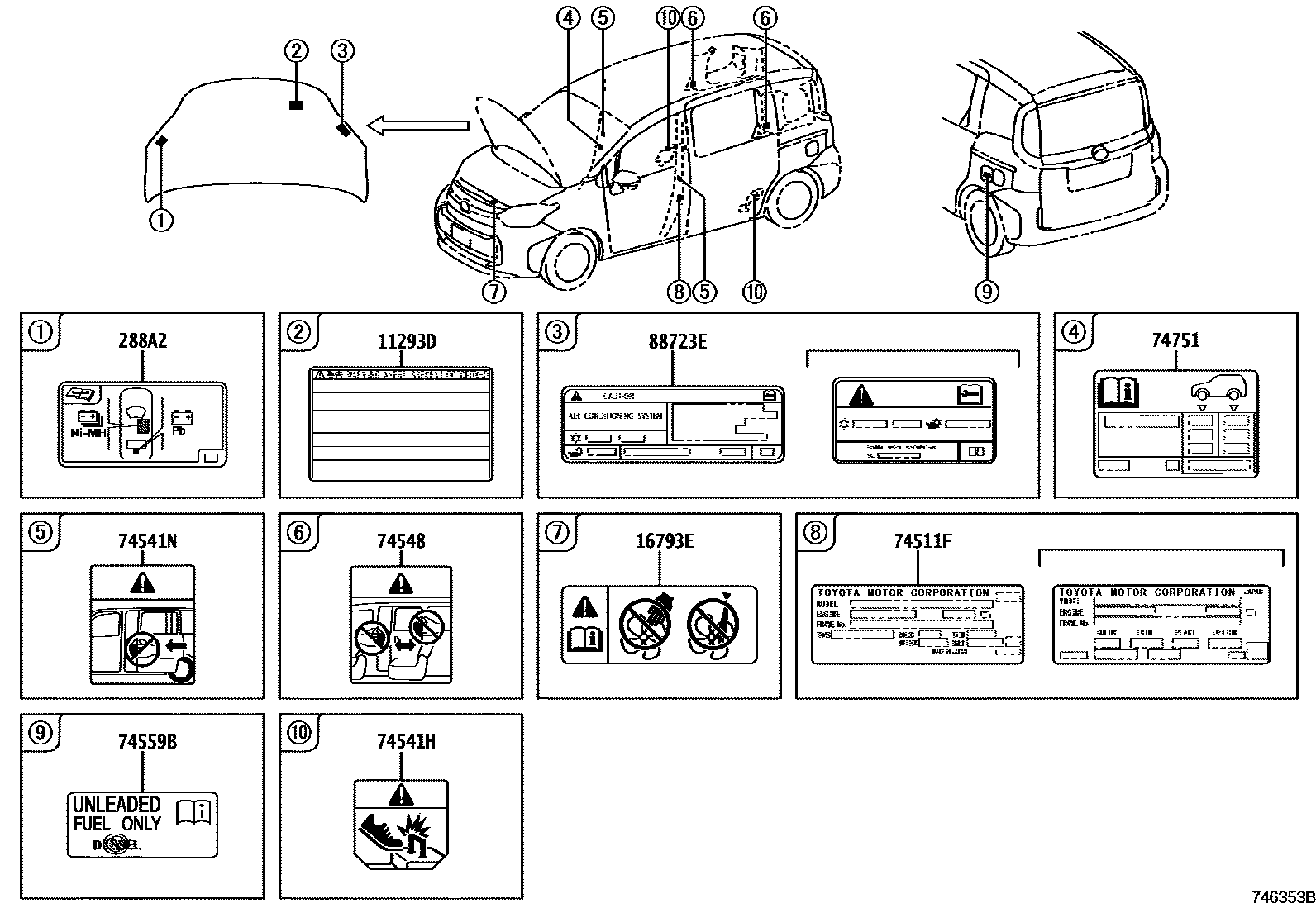

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11293DLABEL, ENGINE CAUTION

main11293-36070iM15AFXE..MXPL10202207

16793ELABEL, COOLING FAN CAUTION

main16793-36030iM15AFKS..MXPC10..N202207-202405

288A2LABEL, BATTERY LOCATION

main288A2-15010iM15AFXE..MXPL10202207

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iMXPC10,MXPL10202207-202405

*111

main74511-30A80iMXPL10;MXPC10..U202405

*111

74541HPLATE, BODY CAUTION

main7454C-52010×2iMXPC10..07S..N202207-202405

74541NLABEL, BODY CAUTION

main74541-28120×2iMXPC10..N202207-202405

74548PLATE, BODY CAUTION

main74541-28160×2iMXPC10..N202207-202405

74559BLABEL, FUEL INFORMATION

main74559-20140iMXPC10..N202207-202405

74751LABEL, TIRE PRESSURE INFORMATION

main42661-52M40iMXPC10..N202207-202405

88723ELABEL, COOLER SERVICE CAUTION

main88723-K0120iMXPC10..N202207-202405

main88723-K0130iMXPL10202207

10 parts on this diagram · 2 diagrams in section
