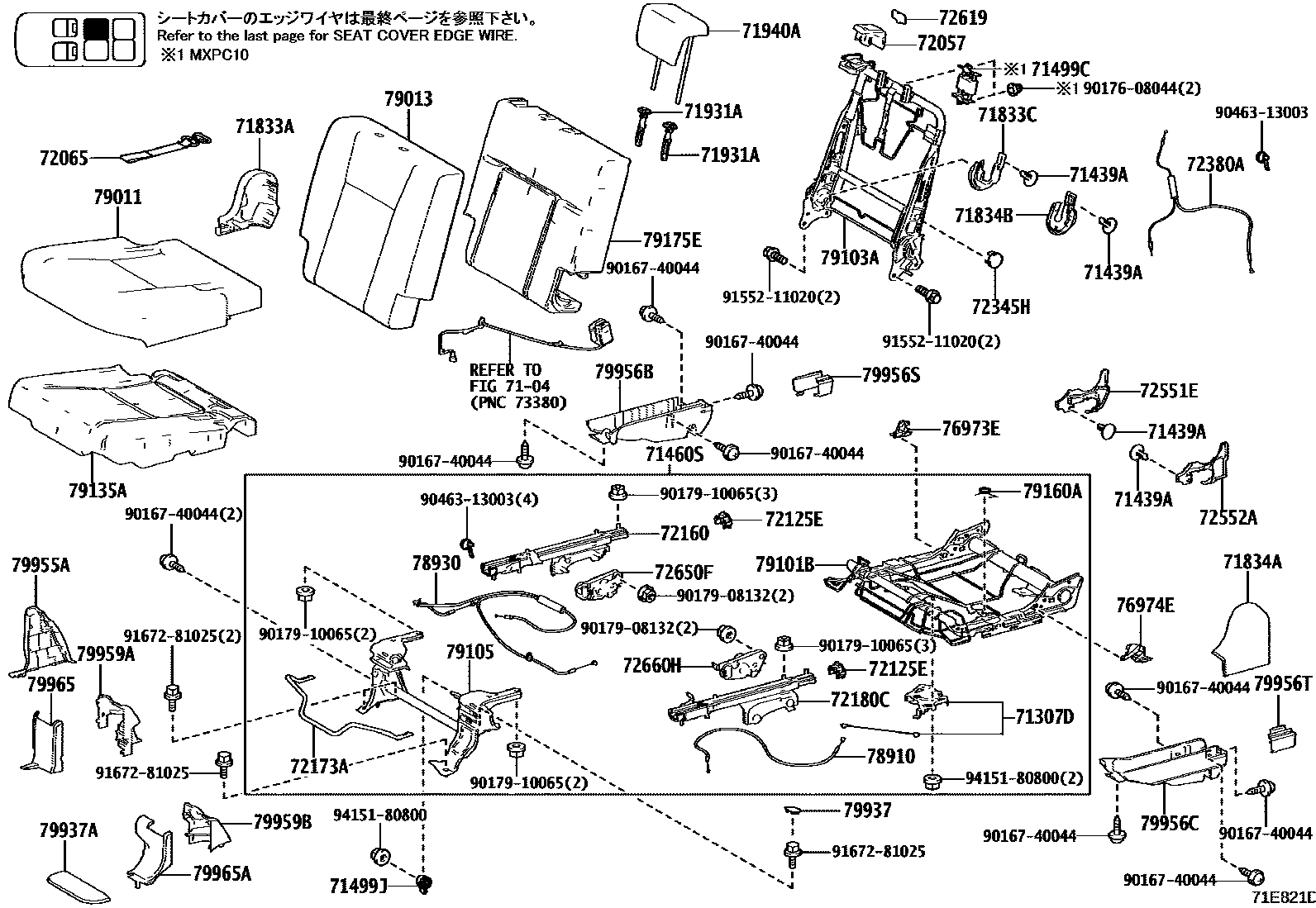

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT RH 0002 1REAR NO.1 SEAT LH 0003 1REAR NO.2 SEAT 0004 1REAR NO.1 SEAT RH 0005 1REAR NO.1 SEAT LH 0006 1SEAT COVER EDGE WIRE

7104

71307DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH

main71307-52031iMXPC10,MXPL10..07S202207-202403

sub71307-52032

main71307-52032iMXPC10,MXPL10..07S202403

71439ACLIP

main67771-26230iMXPC10..05S202207-202405

main67771-26230-C1iMXPL10..N202207

BLACK,TRIM2#,4#

main67771-26230-C1iMXPC10..07S..N202207-202405

BLACK,TRIM2#

71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

main71460-5C450iMXPC10..05S202207-202405

main71460-5CF40iMXPL10;MXPC10..U202207-202403

sub71460-5CF41

main71460-5CF41iMXPL10;MXPC10..U202404

71499CDAMPER, REAR SEAT CUSHION SPRING

main71499-46020iMXPC10..07S..N202207-202405

71499JDAMPER, REAR SEAT CUSHION SPRING, RH

main71499-15010iMXPC10..07S..N202207-202405

main71499-42030iMXPC10..05S202207-202405

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52230-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main71833-52230-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71833-52270-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main71833-52270-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71833-52250-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main71833-52250-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

71834BCOVER, REAR SEAT RECLINING, NO.2 LH

main71834-52280-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main71834-52280-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21iMXPC10..05S202207-202405

W(LOCK),BLACK,TRIM2#

sub71930-44020

sub71930-02370

main71930-44020-21iMXPC10,MXPL10..U202207

W(LOCK),BLACK,TRIM2#,4#

sub71930-44020

sub71930-02370

main71931-47010-C8iMXPL10..N202207

W/O(LOCK),BLACK,TRIM2#,4#

sub71931-47010

sub71931-42020

main71931-47010-C8iMXPC10..05S202207-202405

W/O(LOCK),BLACK,TRIM2#

sub71931-47010

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-52M30-C1iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main71940-52M50-B1iMXPC10,MXPL10..U202207

BLACK,TRIM2#

main71940-52M50-E2iMXPC10,MXPL10..U202207

KHAKI,TRIM4#

main71940-52M60-C1iMXPC10..05S202207-202405

BLACK,TRIM2#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-52040-C1iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

sub72057-52040

main72057-52040-C1iMXPC10..N202207-202405

BLACK,TRIM2#

sub72057-52040

72065BELT SUB-ASSY, REAR SEAT HOOK, RH

main72065-52040-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main72065-52040-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

72125ECOVER, SEAT TRACK, UPPER REAR RH

main71848-52120iMXPC10,MXPL10..07S202207

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-52100iMXPL10;MXPC10..U202207-202405

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-52050iMXPC10..07S..N202207-202405

72180CTRACK ASSY, REAR SEAT, INNER RH

main72180-52030iMXPC10..07S..N202207-202405

72345HCAP, SEAT STAND FRAME

main72345-52070iMXPC10..07S..N202207-202405

72380ACABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

main72380-52030iMXPC10..05S202207-202405

main72380-52050iMXPC10..07S..N202207-202405

72551ECOVER, RECLINING HINGE, RH

main72551-52120-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main72551-52120-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

72552ACOVER, RECLINING HINGE, LH

main72551-52130-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

main72551-52130-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#

main72552-52130-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-52100-C1iMXPL10..N202207-202405

BLACK,TRIM2#

sub72615-52100

main72615-52100-C1iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

sub72615-52100

72650FLOCK ASSY, REAR SEAT, RH

main72650-52030iMXPC10..07S..N202207-202405

72660HLOCK ASSY, REAR NO.2 SEAT, LH

main72660-52070iMXPC10..07S..N202207-202405

76973ECOVER, REAR UNDER SIDE, RH

main76973-52040iMXPL10;MXPC10..U202207-202405

FOR RH SEAT

main76974-52050iMXPL10;MXPC10..U202207-202405

FOR LH SEAT

76974ECOVER, REAR UNDER SIDE, LH

main76973-52050iMXPL10;MXPC10..U202207-202405

FOR RH SEAT

main76974-52060iMXPL10;MXPC10..U202207-202405

FOR LH SEAT

78910CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

main78910-52040iMXPC10..07S..N202207-202405

78930CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

main78910-52060iMXPL10;MXPC10..U202207-202405

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-52280-B0iMXPC10,MXPL10..07S..N202207-202308

BLACK,TRIM2#

sub79011-52281

main79011-52281-B0iMXPC10..07S..N202309-202405

BLACK,TRIM2#

main79011-52300-B0iMXPC10,MXPL10..U202207-202308

BLACK,TRIM2#

sub79011-52301

main79011-52300-E0iMXPC10,MXPL10..U202207-202308

KHAKI,TRIM4#

sub79011-52301

main79011-52301-B0iMXPC10,MXPL10..U202309

BLACK,TRIM2#

main79011-52301-E0iMXPC10,MXPL10..U202309

KHAKI,TRIM4#

main79011-52330-C0iMXPC10..05S202207-202308

BLACK,TRIM2#

sub79011-52331

main79011-52331-C0iMXPC10..05S202309-202405

BLACK,TRIM2#

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-52370-C2iMXPC10..07S..N202207-202508

BLACK,TRIM2#

main79013-52390-C2iMXPC10,MXPL10..U202207-202508

BLACK,TRIM2#

main79013-52390-E0iMXPC10,MXPL10..U202207-202508

KHAKI,TRIM4#

main79013-52420-C0iMXPC10..05S202207-202308

BLACK,TRIM2#

sub79013-52421

main79013-52421-C0iMXPC10..05S202309-202405

BLACK,TRIM2#

sub79013-52422

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-52060iMXPC10,MXPL10..07S202207-202402

sub79101-52061

main79101-52061iMXPC10..07S..N202403-202405

79103AFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-52130iMXPC10..07S202207-202401

sub79103-52131

main79103-52131iMXPC10..07S..N202402-202405

main79103-52140iMXPL10202207-202401

sub79103-52141

main79103-52141iMXPL10202402

main79103-52160iMXPC10..05S202207-202401

sub79103-52161

main79103-52161iMXPC10..05S202402-202405

79105LEG SUB-ASSY, NO.1 SEAT, RH

main79105-52040iMXPC10..07S..N202207-202405

79135APAD, NO.1 SEAT CUSHION, RH

main79135-52080iMXPC10..07S..N202207-202405

main79135-52110iMXPC10..05S202207-202405

79160ASPRING ASSY, NO.1 SEAT CUSHION, RH

main79191-52010iMXPC10,MXPL10..07S202207-202402

sub79191-52011

main79191-52011iMXPC10..07S..N202403-202405

79175EPAD, NO.1 SEATBACK, RH

main79175-52100iMXPC10..07S..N202207-202405

main79175-52130iMXPC10..05S202207-202405

79937COVER, REAR SEAT LEG, NO.2

main79937-52040-C1iMXPL10..N202207

BLACK,TRIM2#,4#

main79937-52040-C1iMXPL10..N202207-202405

BLACK,TRIM2#

79937ACOVER, REAR SEAT LEG, NO.2

main79926-52080-C0iMXPL10..N202207

BLACK,TRIM2#,4#

main79926-52080-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

79955ACOVER, REAR SEAT FRONT BRACKET, RH

main79955-52070-C0iMXPL10..N202207-202405

BLACK,TRIM2#

main79955-52070-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

main79955-52090-C0iMXPC10..05S202207-202405

BLACK,TRIM2#

79956BCOVER, REAR SEAT LEG SIDE, RH

main79956-52080-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main79956-52080-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

79956CCOVER, REAR SEAT LEG SIDE, LH

main79956-52170-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

main79956-52170-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

79956SCOVER, REAR SEAT LEG SIDE

main79956-52250-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main79956-52250-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

79956TCOVER, REAR SEAT LEG SIDE

main79956-52270-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main79956-52270-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

79959COVER, RR SEAT LEG

main79959-52390-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main79959-52390-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

79959ACOVER, REAR SEAT LEG, RH

main79959-52350-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#,FOR RH SEAT

main79959-52350-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#,FOR RH SEAT

main79959-52370-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#,FOR LH SEAT

main79959-52370-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#,FOR LH SEAT

79959BCOVER, REAR SEAT LEG, LH

main79965-52080-C0iMXPL10..N202207-202405

BLACK,TRIM2#,FOR RH SEAT

main79965-52080-C0iMXPL10..N202207

BLACK,TRIM2#,4#,FOR RH SEAT

main79965-52150-C0iMXPL10..N202207-202405

BLACK,TRIM2#,FOR LH SEAT

main79965-52150-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#,FOR LH SEAT

79965COVER, REAR SEAT LEG SIDE, NO.2

main79959-52360-C0iMXPL10..N202207

BLACK,TRIM2#,4#,FOR RH SEAT

main79959-52360-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#,FOR RH SEAT

main79959-52380-C0iMXPC10,MXPL10..U202207-202405

BLACK,TRIM2#,FOR LH SEAT

main79959-52380-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#,FOR LH SEAT

79965ACOVER, REAR SEAT LEG SIDE, NO.2

main79965-52090-C0iMXPL10..N202207-202405

BLACK,TRIM2#,FOR RH SEAT

main79965-52090-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#,FOR RH SEAT

main79965-52120-C0iMXPL10..N202207-202405

BLACK,TRIM2#,FOR LH SEAT

main79965-52120-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#,FOR LH SEAT

9016740044

main90167-40044

9017608044

main90176-08044

9017908132

main90179-08132

9017910065

main90179-10065

9046313003

main90463-13003

9155211020

main91552-11020

9167281025

main91672-81025

9415180800

main94151-80800

57 parts on this diagram · 6 diagrams in section
