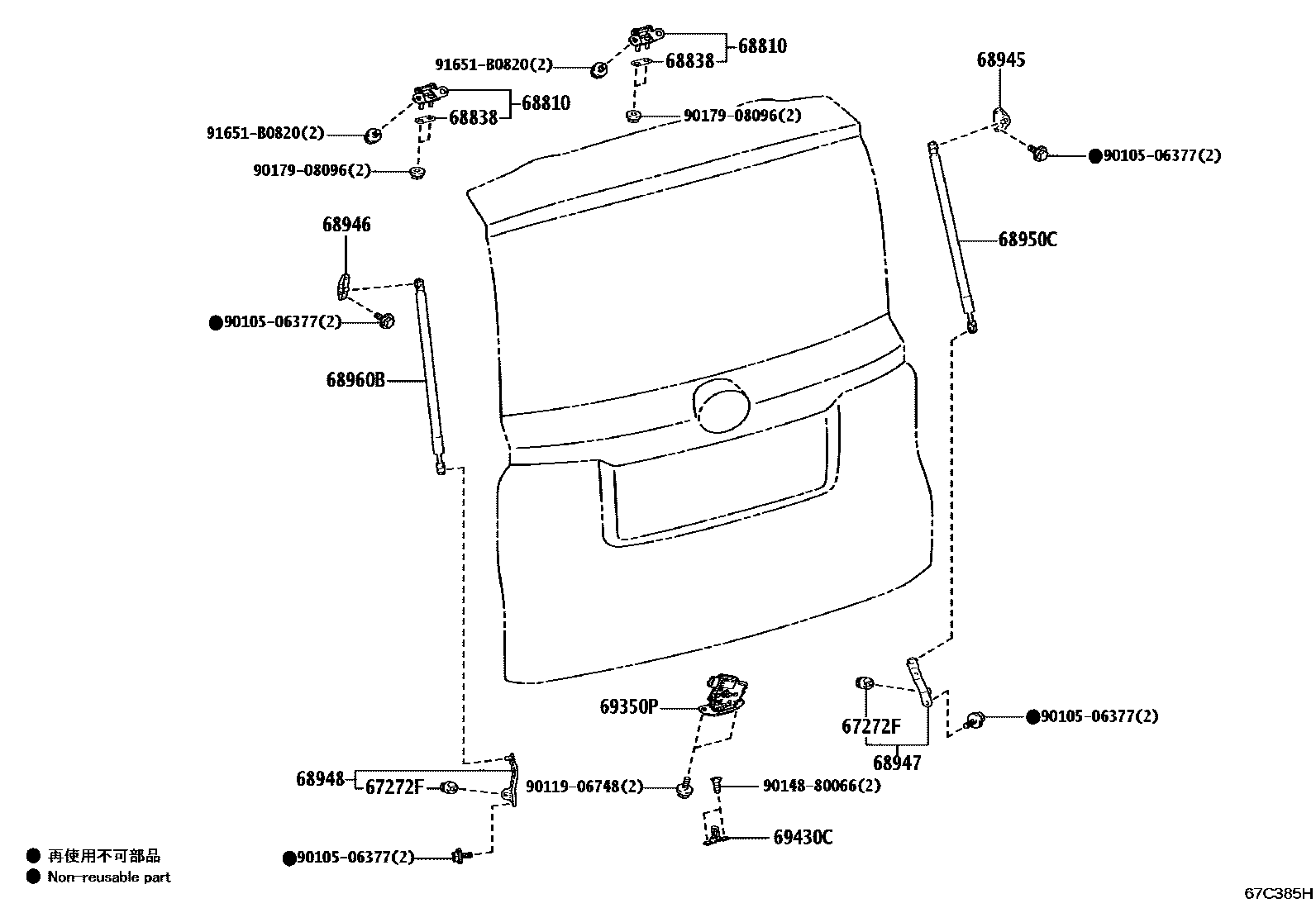

BACK DOOR LOCK & HANDLE

67272FCUSHION, BACK DOOR STOPPER, NO.2

main69477-12020iMXPC10..N202207-202405

68810HINGE ASSY, BACK DOOR, UPPER

main68810-52240iMXPC10..N202207-202405

68838PAD, BACK DOOR HINGE, NO.1

main68838-47010iMXPL10;MXPC10..U202207-202405

T=1.0

main68838-47020iMXPC10..N202207-202405

T=1.5

main68838-47030iMXPC10..N202207-202405

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52200iMXPC10..N202207-202405

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52130iMXPL10;MXPC10..U202207-202405

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52080iMXPC10..N202207-202405

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52080iMXPC10..N202207-202405

68950CSTAY ASSY, BACK DOOR, RH

main68950-52510iMXPC10..N202207-202405

68960BSTAY ASSY, BACK DOOR, LH

main68960-52480iMXPC10..N202207-202405

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52401iMXPC10..N202207-202405

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iMXPC10..N202207-202405

9010506377

main90105-06377

9011906748

main90119-06748

9014880066

main90148-80066

9017908096

main90179-08096

91651B0820

main91651-B0820

16 parts on this diagram · 1 diagram in section
