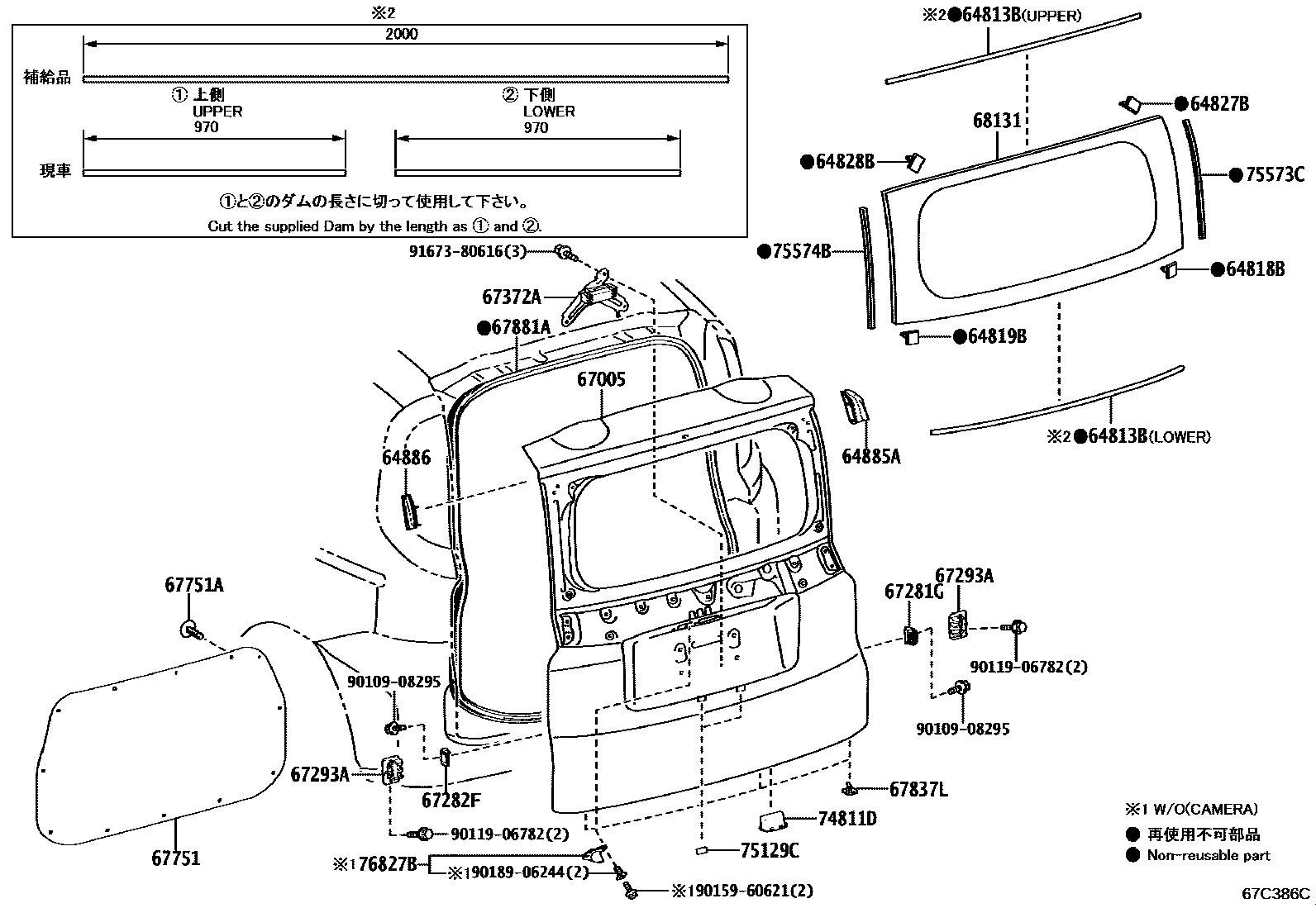

BACK DOOR PANEL & GLASS

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iMXPC10..N202207-202405

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-52090iMXPC10..N202207-202405

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-52090iMXPC10..N202207-202405

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52140iMXPC10..N202207-202405

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52140iMXPC10..N202207-202405

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-52060iMXPC10..N202207-202405

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-52060iMXPC10..N202207-202405

67005PANEL SUB-ASSY, BACK DOOR

main67005-52J30iMXPC10..N202207-202405

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-15011iMXPC10..N202207-202405

67282FSTOPPER, BACK DOOR, LWR LH

main67281-15011iMXPC10..N202207-202405

67293ACUSHION, BACK DOOR STOPPER

main67293-15010×2iMXPC10..N202207-202405

67372AWEIGHT, BACK DOOR

main67372-52070iMXPC10..N202207-202405

67751BOARD, BACK DOOR TRIM

main67750-52170-B0iMXPC10..N202207-202405

DARK GRAY,TRIM2#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08186-C3×12iMXPL10..N202207

BLACK,TRIM2#,4#

67837LSEAL, DOOR DUST PROOF

main67837-30120×3iMXPL10;MXPC10..U202405

main67837-52040×3iMXPC10,MXPL10202207-202404

67881AWEATHERSTRIP, BACK DOOR

main67881-52280iMXPC10..N202207-202405

68131GLASS, BACK DOOR

main68131-52880iMXPC10..N202207-202405

74811DHANDLE, DOOR PULL

main74811-13010-C2iMXPL10..N202207

BLACK,TRIM2#,4#

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iMXPC10..N202207-202405

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-52290iMXPC10..N202207-202405

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-52140iMXPC10..N202207-202405

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-52100iMXPC10..N202207-202405

9010908295

main90109-08295

9011906782

main90119-06782

9015960621

main90159-60621

9018906244

main90189-06244

9167380616

main91673-80616

27 parts on this diagram · 1 diagram in section
