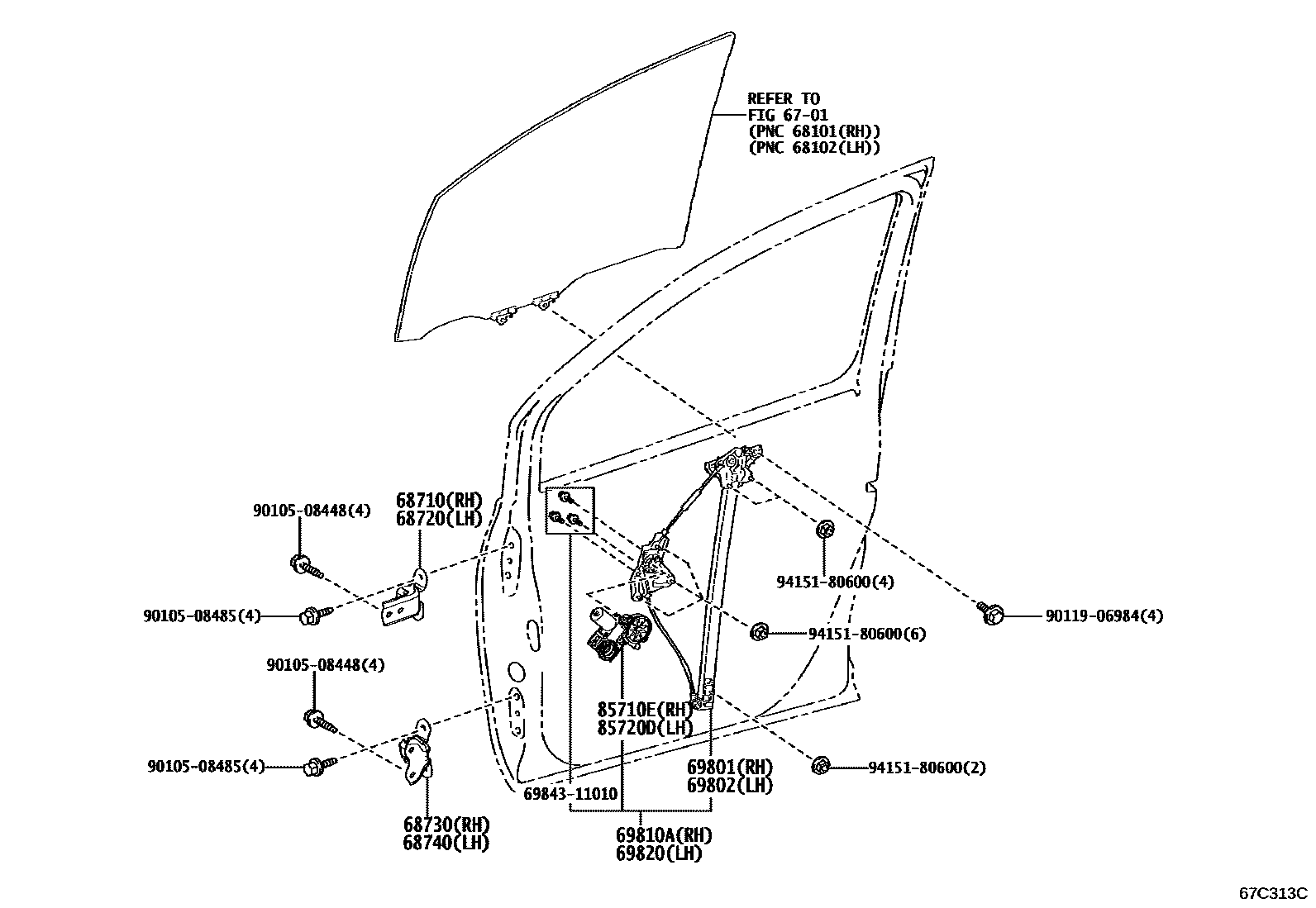

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMXPC10..N202207-202405

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMXPC10..N202207-202405

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMXPC10..N202207-202405

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMXPC10..N202207-202405

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52200iMXPC10..N202207-202405

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52180iMXPC10..N202207-202405

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-52570iMXPC10..N202207-202405

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-52480iMXPC10..N202207-202405

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52260iMXPC10..N202207-202405

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52230iMXPC10..N202207-202405

6984311010

main69843-11010

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
