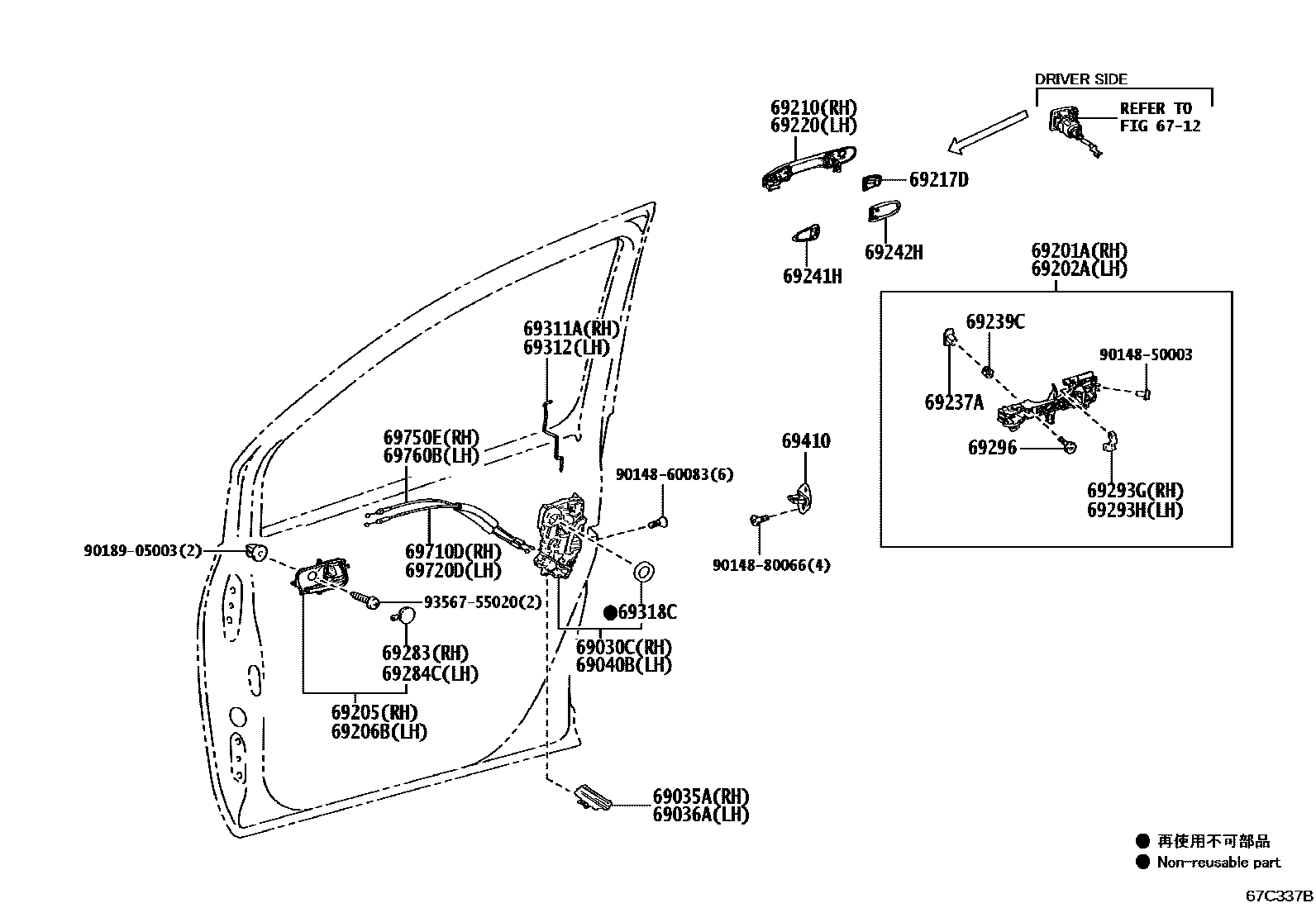

FRONT DOOR LOCK & HANDLE
6712
69030CLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040BLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
FROMAGE,TRIM21
BLACK,TRIM20,4#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
FROMAGE,TRIM21
BLACK,TRIM20,21,4#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2WQ
PLATINUM WHITE PEARL MC.,089 ,2YP
PLATINUM WHITE PEARL MC.,089
BLACK,202
SCARLET ME.,2WR ,3U4
SCARLET ME.,3U4
BEIGE,4V6
BEIGE,2WS ,4V6
CLEAR BEIGE ME.,2WT ,4Y3
CLEAR BEIGE ME.,4Y3
URBAN KHAKI,6X3
URBAN KHAKI,2WU ,6X3
GRAYISH BLUE,2WV ,8W2
GRAYISH BLUE,8W2
DK.GRAY,1L7
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2WQ
PLATINUM WHITE PEARL MC.,089 ,2YP
PLATINUM WHITE PEARL MC.,089
BLACK,202
SCARLET ME.,2WR ,3U4
SCARLET ME.,3U4
BEIGE,4V6
BEIGE,2WS ,4V6
CLEAR BEIGE ME.,4Y3
CLEAR BEIGE ME.,2WT ,4Y3
URBAN KHAKI,2WU ,6X3
URBAN KHAKI,6X3
GRAYISH BLUE,2WV ,8W2
GRAYISH BLUE,8W2
DK.GRAY,1L7
69237ANUT, FRONT DOOR HANDLE
sub69237-0E010
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
FROMAGE,TRIM21
BLACK,TRIM2#
BLACK,TRIM20,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
FROMAGE,TRIM21
BLACK,TRIM20,4#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
34 parts on this diagram · 1 diagram in section
