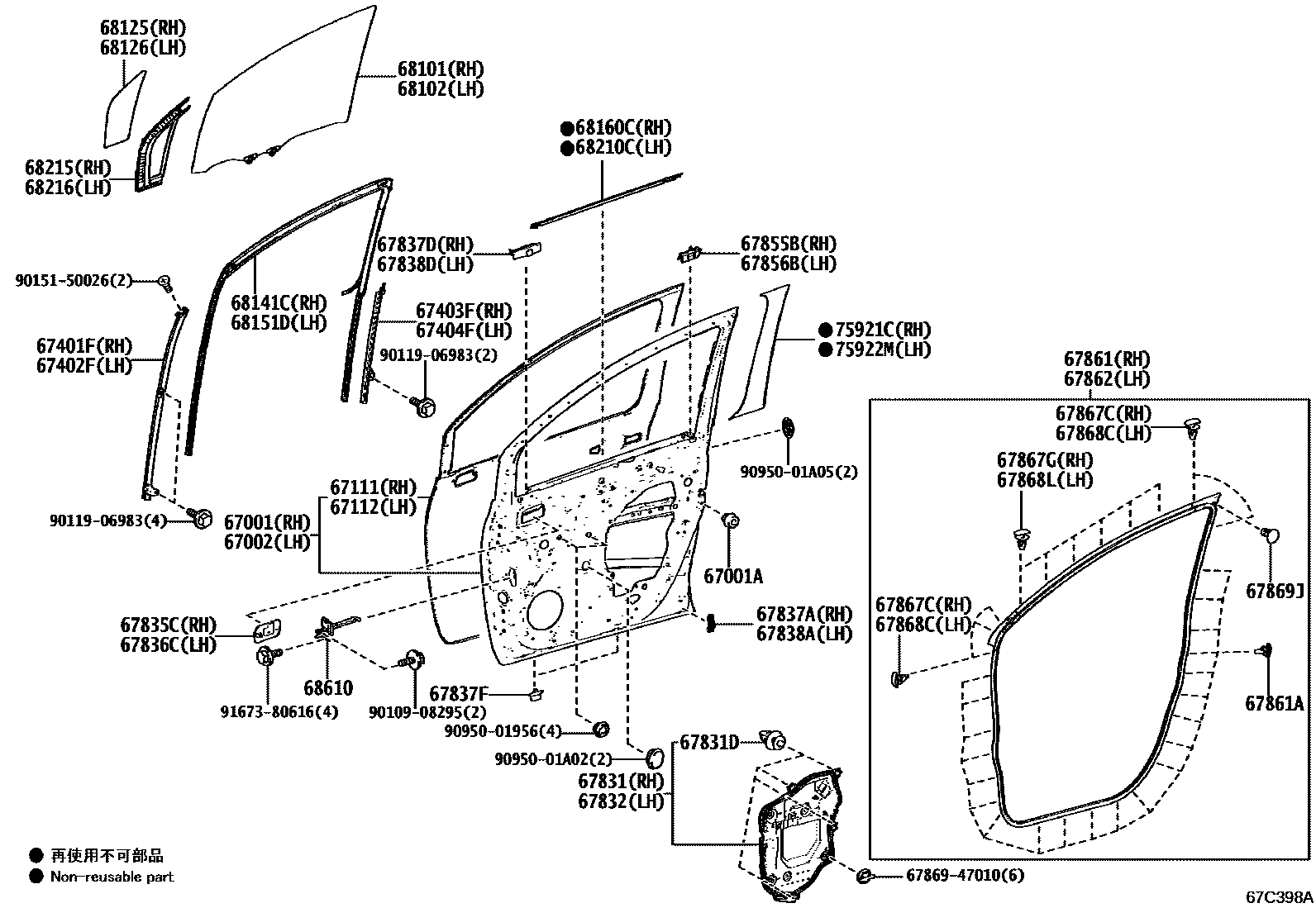

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52640iMXPC10..N202207-202405

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×2iMXPC10..N202207-202405

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52650iMXPC10..N202207-202405

67111PANEL, FRONT DOOR, OUTER RH

main67111-52300iMXPC10..N202207-202405

67112PANEL, FRONT DOOR, OUTER LH

main67112-52280iMXPC10..N202207-202405

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52230iMXPC10..N202207-202405

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52210iMXPC10..N202207-202405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52290iMXPC10..N202207-202405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52250iMXPC10..N202207-202405

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52520iMXPC10..N202207-202405

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iMXPC10..N202207-202405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52380iMXPC10..N202207-202405

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-52010iMXPC10..N202207-202405

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-52030iMXPC10..N202207-202405

67837ASEAL, FRONT DOOR VENT, RH

main67837-52130iMXPC10..N202207-202405

67837DSEAL, FRONT DOOR VENT, RH

main67837-52140iMXPC10..N202207-202405

67837FSEAL, DOOR DUST PROOF

main67837-47060×2iMXPC10..N202207-202405

67838ASEAL, FRONT DOOR VENT, LH

main67838-52060iMXPC10..N202207-202405

67838DSEAL, FRONT DOOR VENT, LH

main67838-52070iMXPC10..N202207-202405

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-52030iMXPC10..N202207-202405

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-52030iMXPC10..N202207-202405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52390iMXPC10..N202207-202405

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×42iMXPC10..N202207-202405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52360iMXPC10..N202207-202405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-30110×5iMXPC10..N202207-202405

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52060×6iMXPC10..N202207-202405

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-30110×5iMXPC10..N202207-202405

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-30080×6iMXPC10..N202207-202405

67869JCLIP, FRONT DOOR WEATHERSTRIP

main90467-06084×2iMXPC10..N202207-202405

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52210iMXPC10..N202207-202405

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-52140iMXPC10..N202207-202405

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-52140iMXPC10..N202207-202405

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-52110iMXPC10..N202207-202405

68141CRUN, FRONT DOOR GLASS, RH

main68141-52380iMXPC10,MXPL10202207-202209

main68141-52381iMXPC10..N202210-202405

68151DRUN, FRONT DOOR GLASS, LH

main68151-52330iMXPC10,MXPL10202207-202209

main68151-52331iMXPC10..N202210-202405

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52270iMXPC10..N202207-202405

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52270iMXPC10..N202207-202405

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-52090iMXPC10..N202207-202405

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-52080iMXPC10..N202207-202405

68610CHECK ASSY, FRONT DOOR

main68610-52240×2iMXPC10..N202207-202405

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52180iMXPC10..N202207-202405

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52170iMXPC10..N202207-202405

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9167380616

main91673-80616

50 parts on this diagram · 2 diagrams in section
