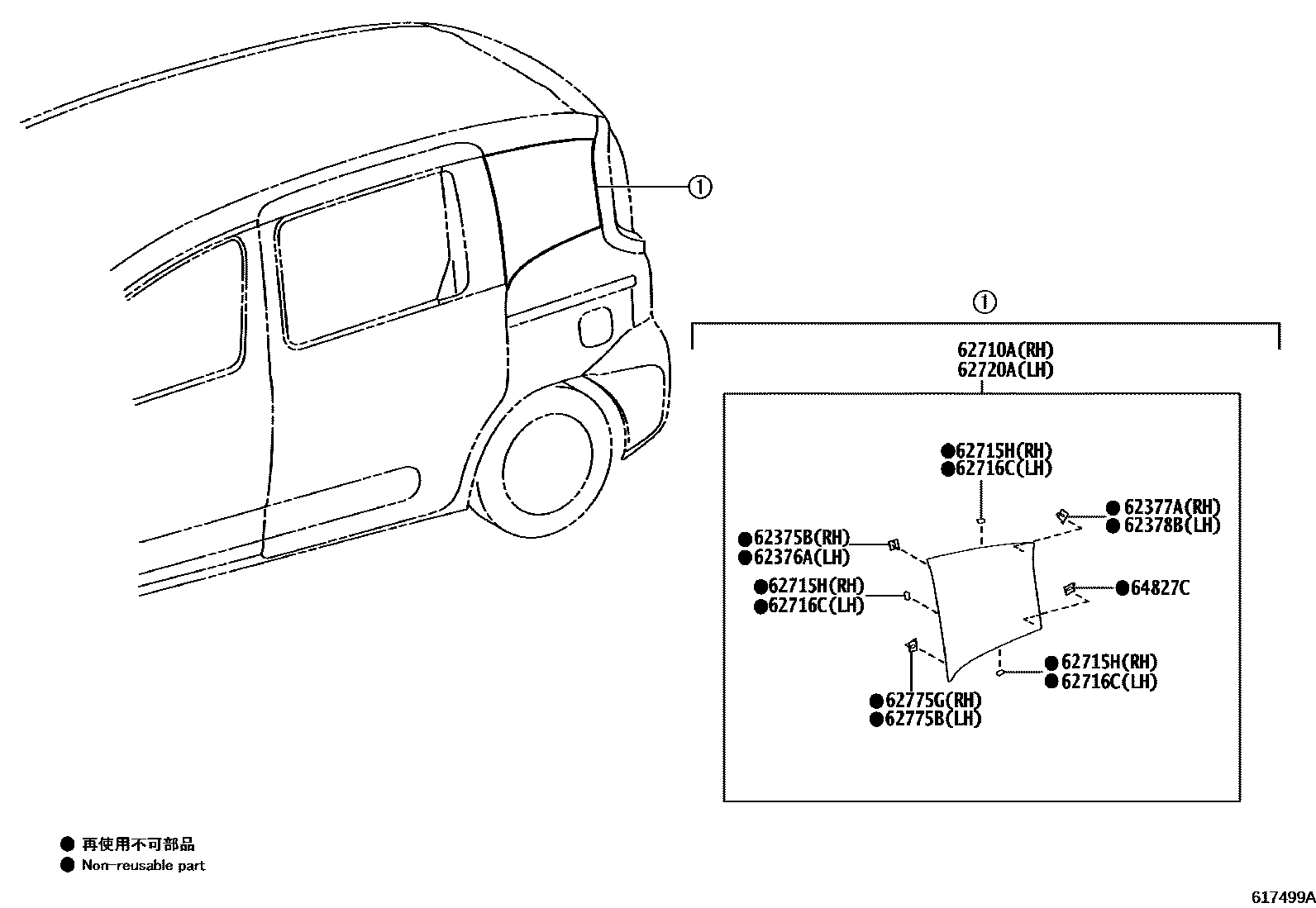

QUARTER WINDOW

62375BCLIP, SIDE WINDOW, NO.1

main62775-52130iMXPC10..N202207-202405

62376ACLIP, SIDE WINDOW, NO.2

main62775-52230iMXPC10..N202207-202405

62377ACLIP, SIDE WINDOW, NO.3

main62775-52120iMXPC10..N202207-202405

62378BCLIP, SIDE WINDOW, NO.4

main62775-52210iMXPC10..N202207-202405

62710AWINDOW ASSY, QUARTER, RH

main62710-52330iMXPC10..N202207-202405

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62785-12050iMXPC10..N202207-202405

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62785-12050iMXPC10..N202207-202405

62720AWINDOW ASSY, QUARTER, LH

main62720-52360iMXPL10;MXPC10..U202207-202405

62775BCLIP, QUARTER WINDOW, LH

main62775-52200iMXPC10..N202207-202405

62775GCLIP, QUARTER WINDOW, RH

main62775-52110iMXPL10;MXPC10..U202207-202405

64827CCLIP, QUARTER WINDOW GLASS

main62775-52240iMXPC10..N202207-202405

RH

main62775-52250iMXPC10..N202207-202405

LH

11 parts on this diagram · 1 diagram in section
