MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55216CPAD, DASH PANEL INSULATOR, NO.4
58450CCLIP
BLACK,TRIM2#,4#
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58562CSILENCER, FRONT FLOOR, NO.2
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
58575EPAD, FRONT FLOOR, REAR NO.1
58576CPAD, FRONT FLOOR, REAR NO.2
65343BOARD, FLOOR, NO.3
9046707215
main90467-07215

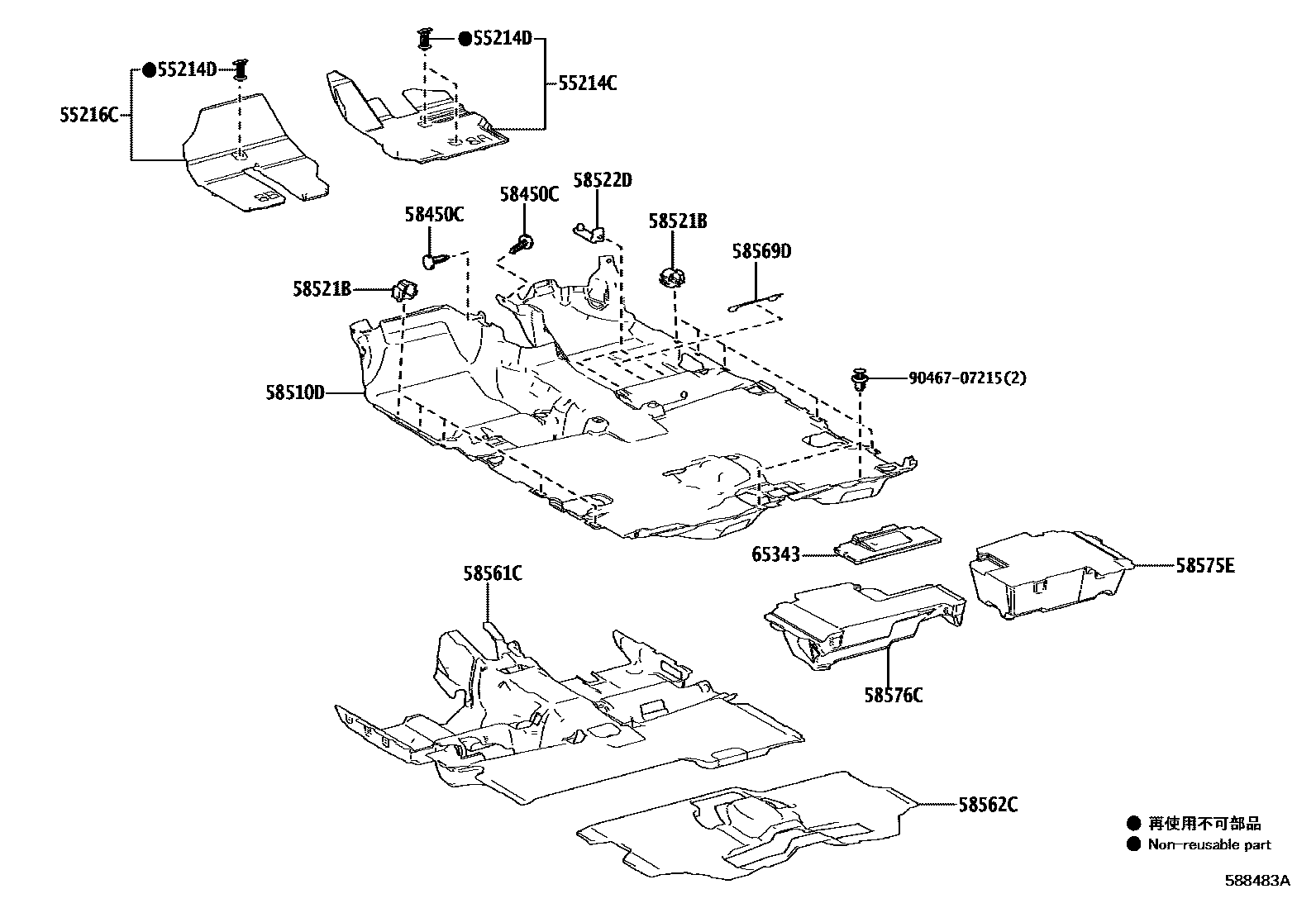

14 parts on this diagram · 2 diagrams in section
