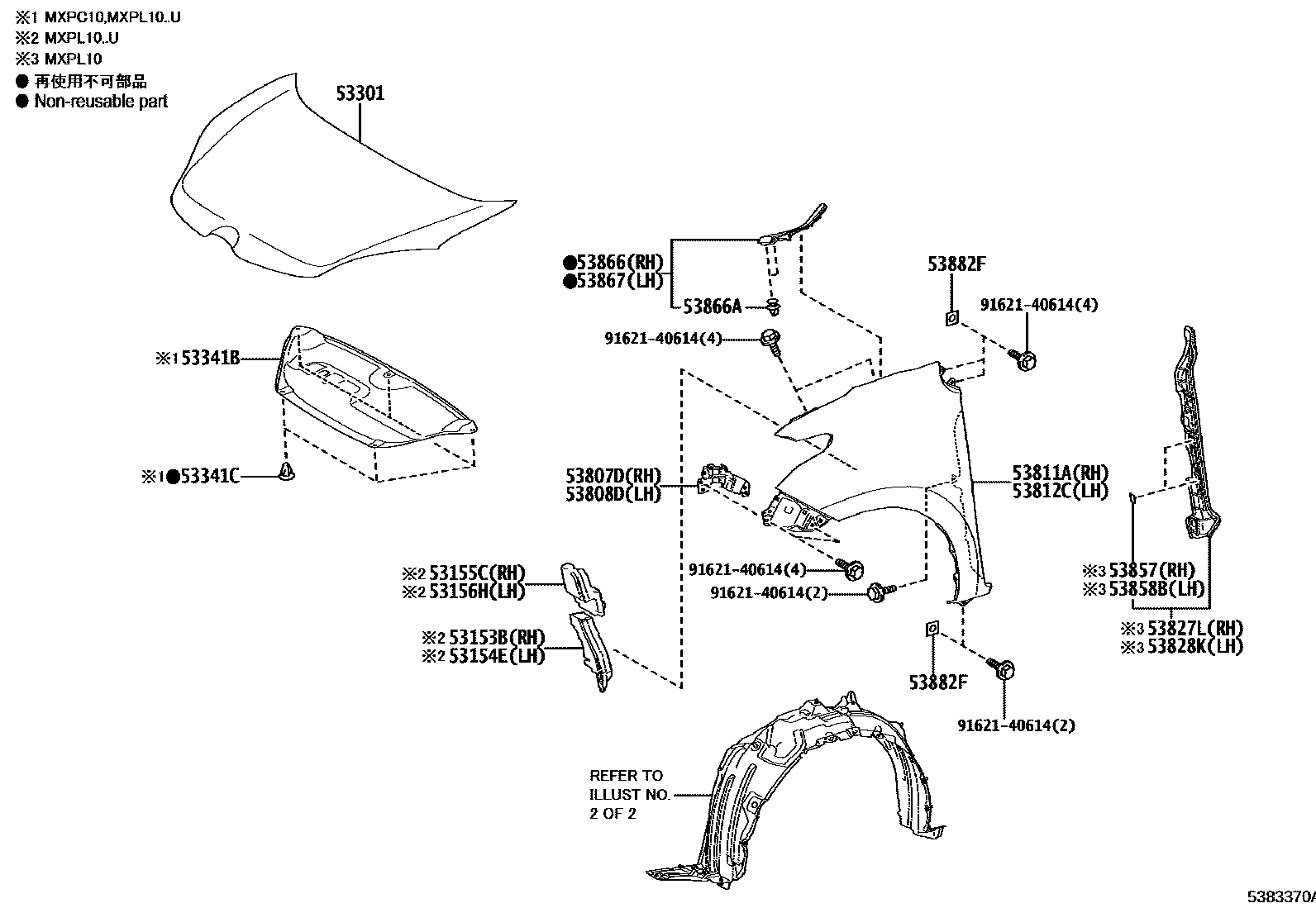

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-52070iMXPL10..U¥2,160202207

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-52070iMXPL10..U¥2,160202207

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-52120iMXPL10..U¥2,190202207

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-52050iMXPL10..U¥2,300202207

53301HOOD SUB-ASSY

main53301-52451iMXPC10..N¥24,000202207-202405

53341BINSULATOR, HOOD

main53341-52260iMXPC10..N¥4,530202207-202405

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMXPC10..N¥120202207-202405

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-52020iMXPC10..N¥1,320202207-202405

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-52030iMXPC10..N¥1,320202207-202405

53811APANEL, FRONT FENDER, RH

main53811-52620iMXPC10..N¥19,300202207-202405

53812CPANEL, FRONT FENDER, LH

main53812-52620iMXPC10..N¥19,300202207-202405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52240iMXPL10¥1,930202207

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52250iMXPL10¥1,930202207

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMXPL10¥100202207

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMXPL10¥100202207

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52210iMXPC10..N¥890202207-202405

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-74020iMXPC10..N¥70202207-202405

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52220iMXPC10..N¥870202207-202405

53882FSEAL, FRONT FENDER

main53882-16030iMXPC10..N¥60202207-202405

9162140614

main91621-40614¥80

20 parts on this diagram · 2 diagrams in section
