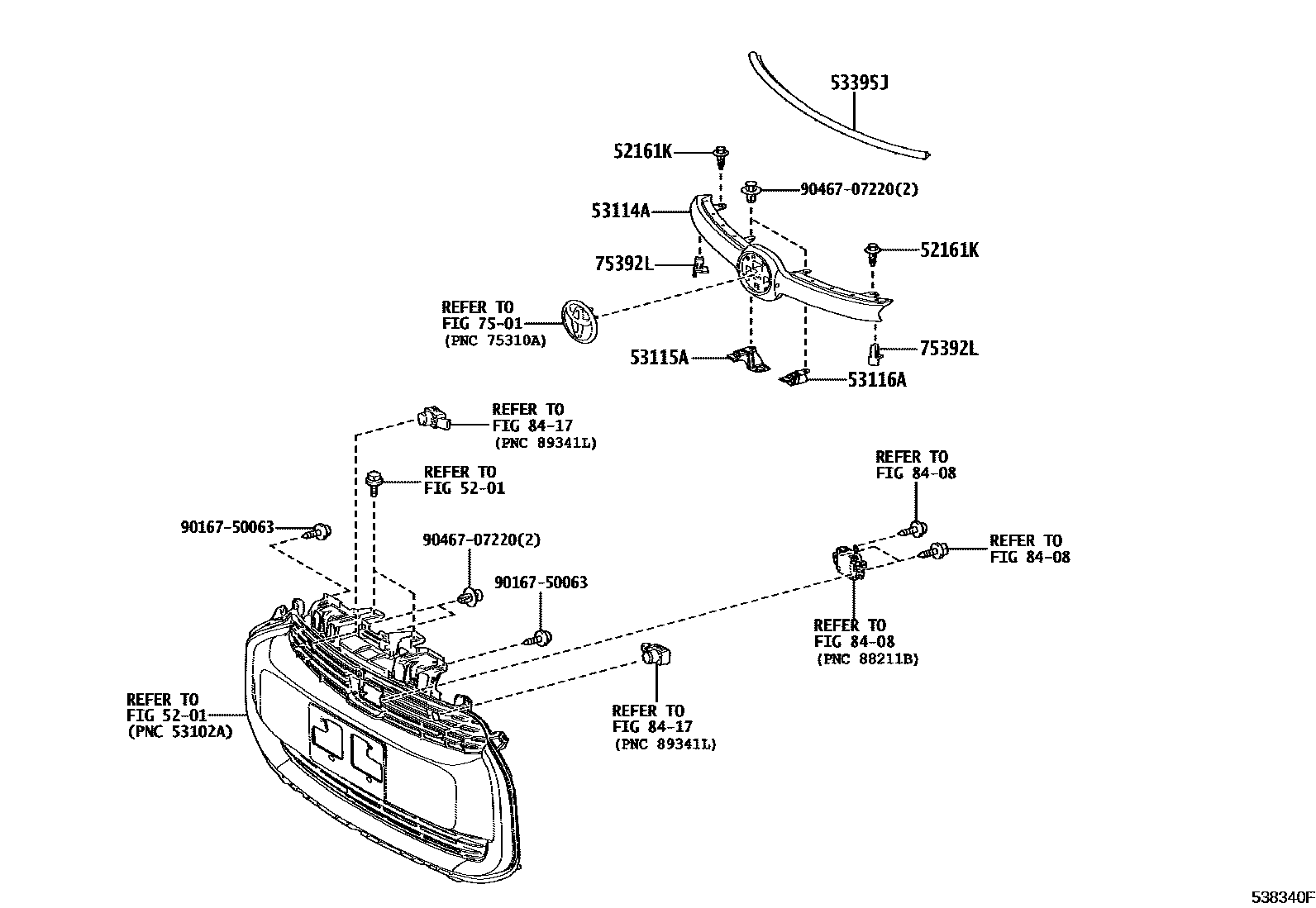

RADIATOR GRILLE

5201

52161KPIECE, FRONT BUMPER

main52161-16010×2iMXPC10..N202207-202405

sub52161-0K040

53114AGRILLE, RADIATOR, INNER

main53114-52200iMXPC10..N202207-202405

53115ABRACKET, RADIATOR GRILLE, RH

main53115-52060iMXPC10..N202207-202405

53116ABRACKET, RADIATOR GRILLE, LH

main53116-52020iMXPC10..N202207-202405

53395JSEAL, HOOD TO FRONT END PANEL

main53395-52170iMXPC10..N202207-202405

7501

75392LRETAINER, OUTSIDE MOULDING

main75392-52030×2iMXPC10..N202207-202405

8408

8417

9016750063

main90167-50063

9046707220

main90467-07220

12 parts on this diagram · 1 diagram in section
