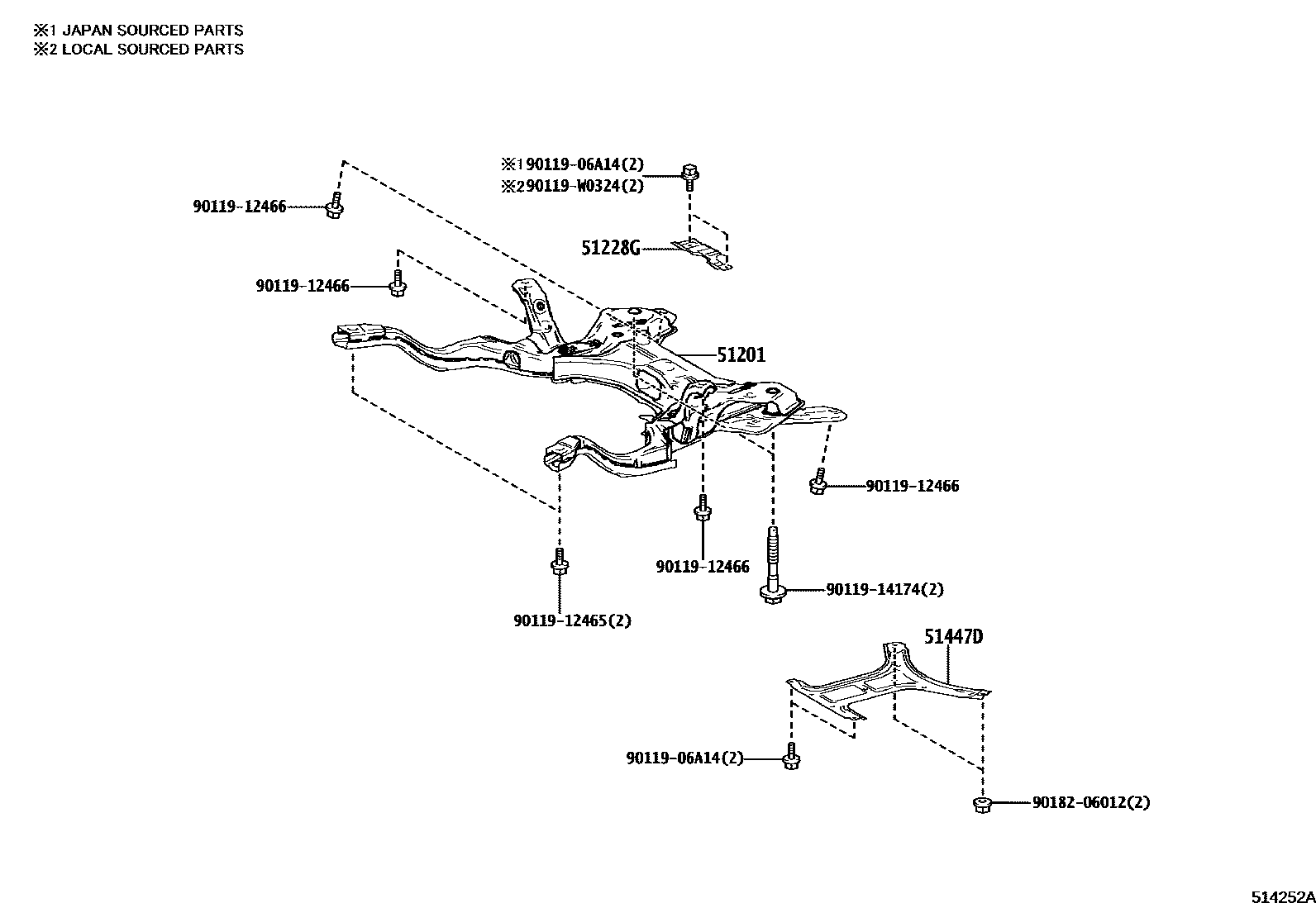

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0003 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52120iMXPC10,MXPL10202207-202208

sub51201-52121

main51201-52121iMXPC10..N202208-202405

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-52030iMXPL10;MXPC10..U202207-202405

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-52070iMXPC10..N202207-202405

9011906A14

main90119-06A14

9011912465

main90119-12465

9011912466

main90119-12466

9011914174

main90119-14174

90119W0324

main90119-W0324

9018206012

main90182-06012

9 parts on this diagram · 3 diagrams in section
