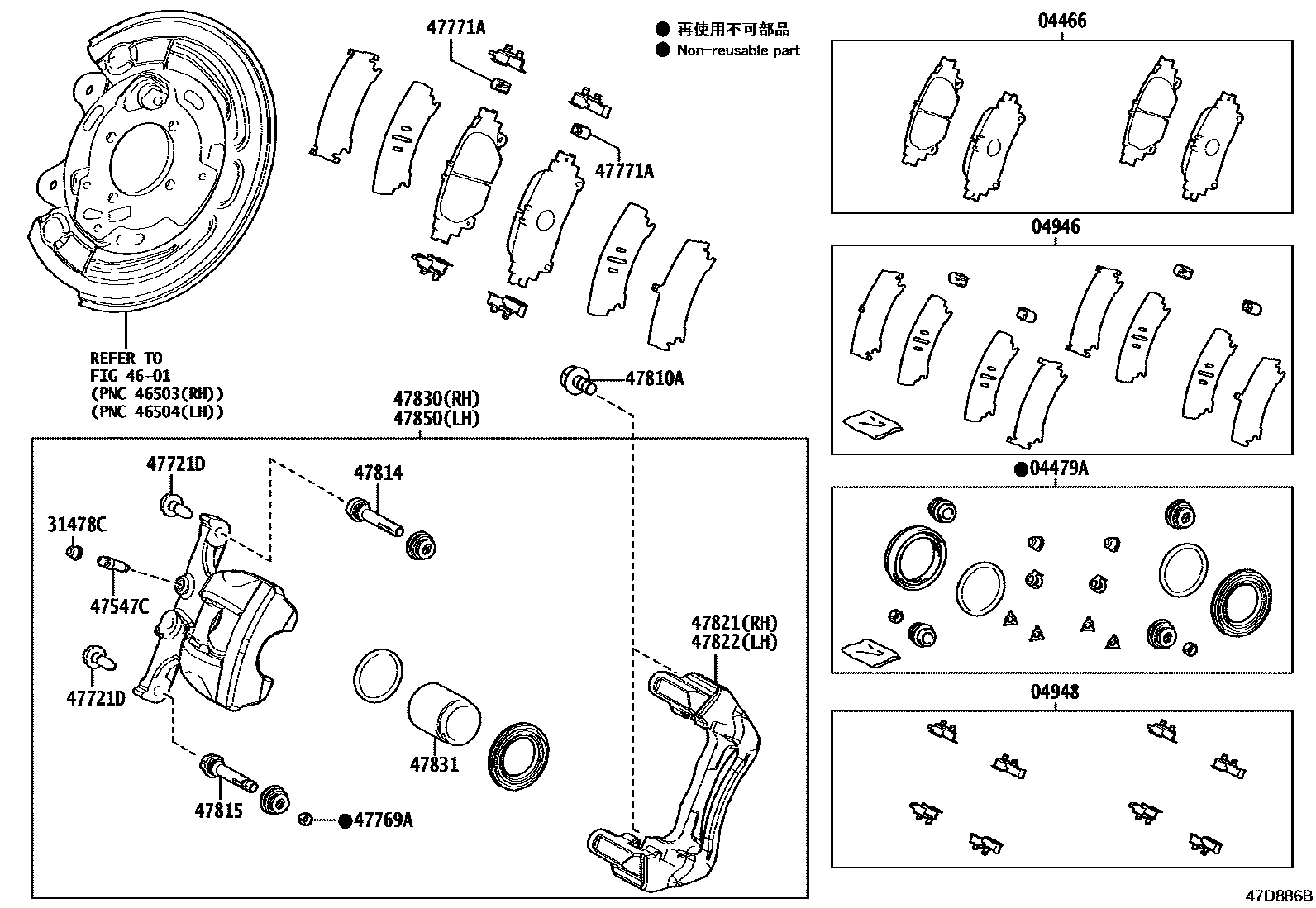

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52180iMXPC10..N202207-202508

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52260iMXPC10..N202207-202508

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47080iMXPC10..N202207-202508

04948FITTING KIT, DISC BRAKE, REAR

main04948-30240iMXPC10..N202207-202508

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMXPC10..N202207-202508

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMXPC10..N202207-202508

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iMXPC10..N202207-202508

*8-1.00PX23-15

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iMXPC10..N202207-202508

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-72010iMXPC10..N202207-202508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12430iMXPC10..N202207-202508

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iMXPC10..N202207-202508

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iMXPC10..N202207-202508

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-52210iMXPC10..N202207-202508

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-52210iMXPC10..N202207-202508

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52210iMXPC10..N202207-202508

47831PISTON, REAR DISC BRAKE

main47831-30330iMXPC10..N202207-202508

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52210iMXPC10..N202207-202508

18 parts on this diagram · 1 diagram in section
