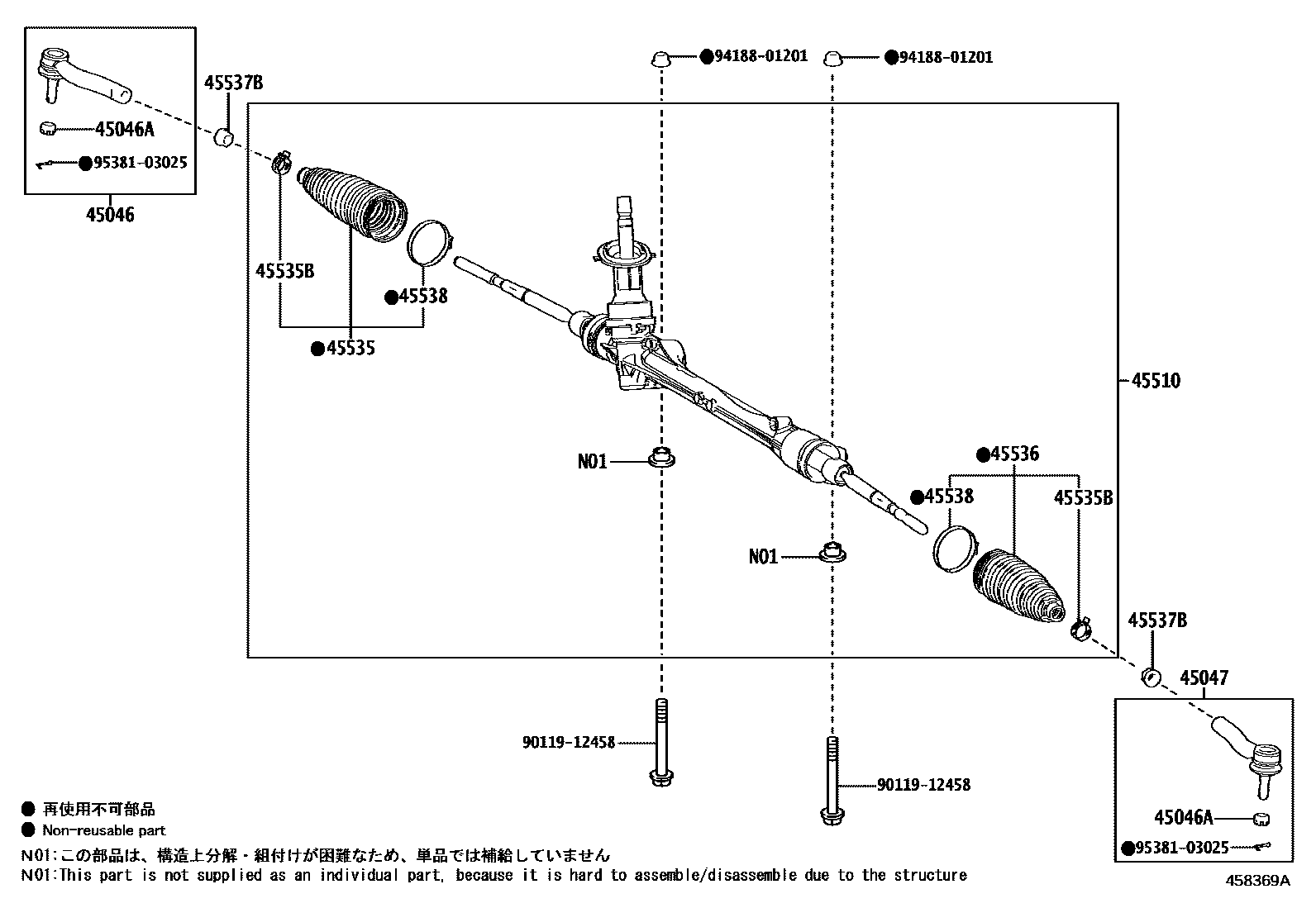

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-K9015iMXPC10..N¥2,570202207-202405

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMXPC10..N¥130202207-202405

45047END SUB-ASSY, TIE ROD, LH

main45047-K9015iMXPC10..N¥2,570202207-202405

45510GEAR ASSY, STEERING

main45510-K0010iMXPC10..N¥29,800202207-202405

45535BOOT, STEERING RACK, NO.1

main45535-59075iMXPC10..N¥790202207-202405

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iMXPC10..N¥320202207-202405

45536BOOT, STEERING RACK, NO.2

main45535-59075iMXPC10..N¥790202207-202405

45537BNUT, RACK END LOCK

main90179-14019iMXPC10..N¥130202207-202405

45538RETAINER, STEERING RACK BOOT

main45538-48020iMXPC10..N¥240202207-202405

9011912458

main90119-12458¥360

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

12 parts on this diagram · 1 diagram in section
