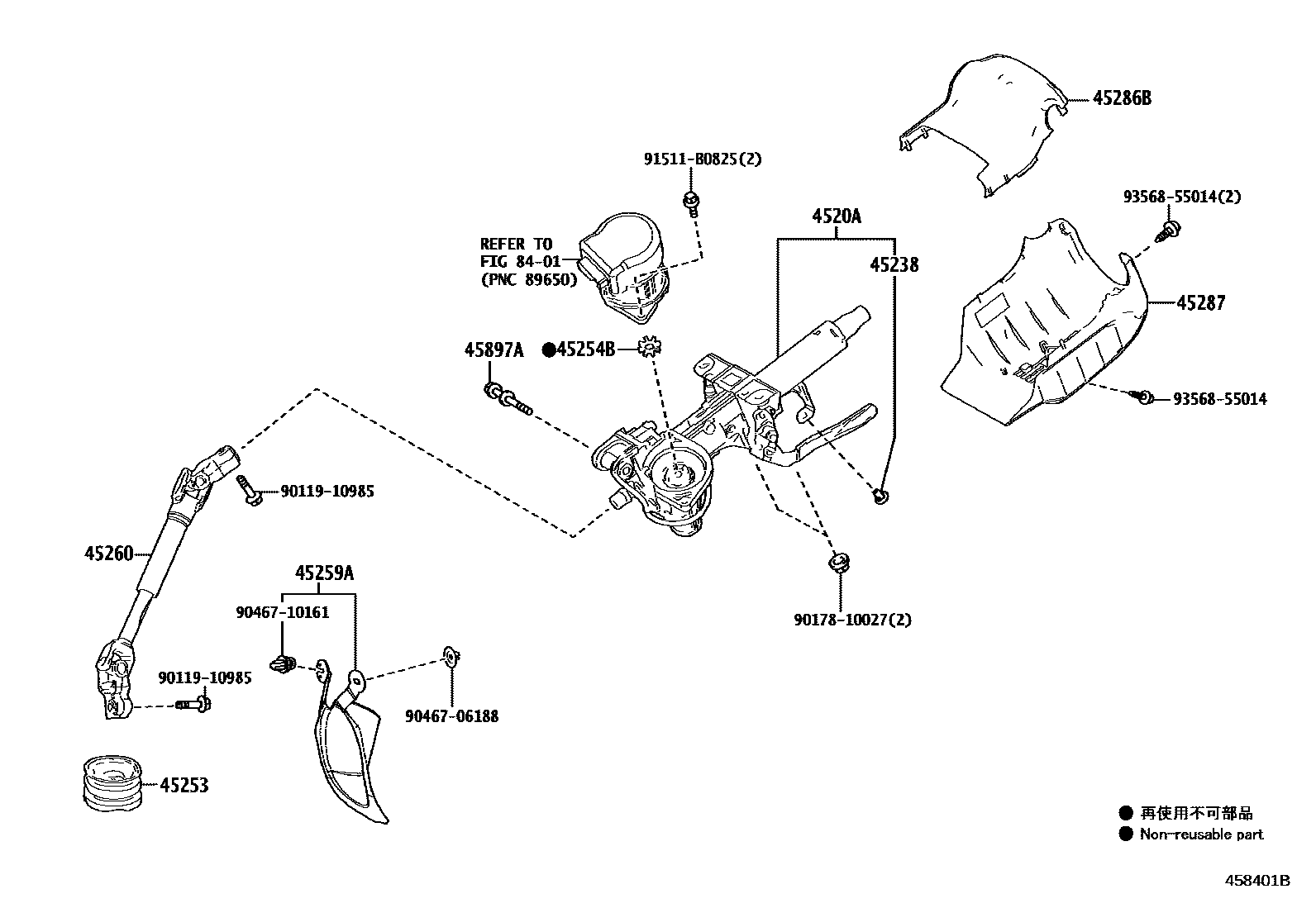

STEERING COLUMN & SHAFT

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52510iMXPC10..N202207-202405

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMXPC10..N202207-202405

45253COVER, STEERING COLUMN HOLE

main45253-K0010iMXPC10..N202207-202405

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXPC10..N202207-202405

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52050iMXPC10..N202207-202405

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-K0010iMXPC10..N202207-202405

45286BCOVER, STEERING COLUMN, UPR

main45286-52210-C1iMXPC10..N202207-202405

BLACK,TRIM2#

main45286-52210-C1iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-52040-C1iMXPC10..N202207-202405

BLACK,TRIM2#

main45024-52040-C1iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMXPC10..N202207-202405

8401

9011910985

main90119-10985

9017810027

main90178-10027

9046706188

main90467-06188

9046710161

main90467-10161

91511B0825

main91511-B0825

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
