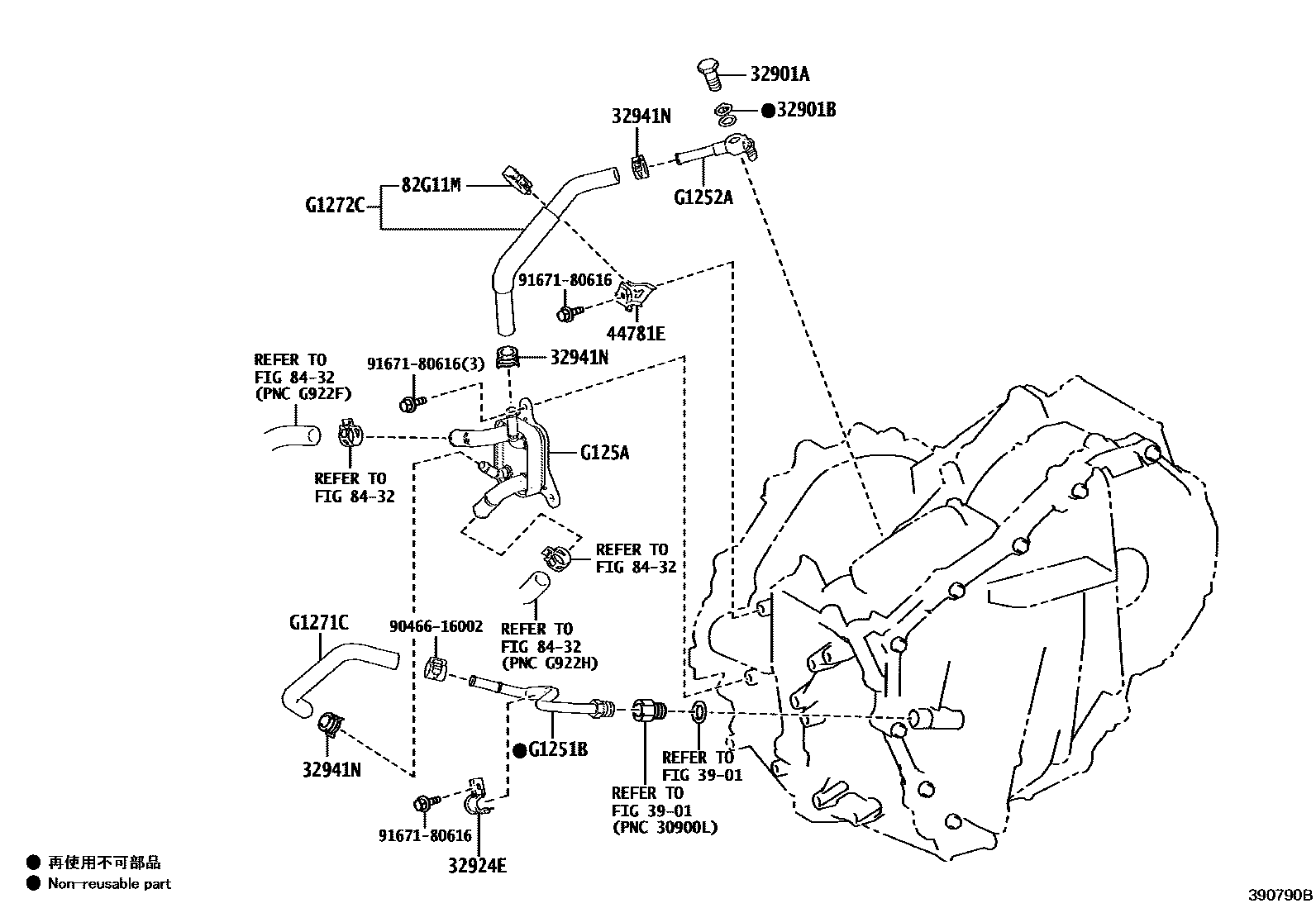

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMXPL10¥390202207

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMXPL10¥80202207

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iMXPL10¥200202207

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iMXPL10¥180202207

3901

44781EBRACKET, HOSE

main44781-52070iMXPL10..U¥320202207

NO.1:REFER ILLUST.

main44781-K0010iMXPL10..N¥210202207

NO.2:REFER ILLUST.

82G11MCLAMP, WIRING HARNESS

main82711-51020iMXPL10¥160202207

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125152030iMXPL10..U202207

mainG1251K0010iMXPL10..N202207

G1252APIPE, MOTOR COOLING, NO.2

mainG1252K0010iMXPL10202207

G125ACOOLER, MOTOR COOLING

mainG125AK0010iMXPL10202207

G1271CHOSE, MOTOR COOLING, NO.1

mainG127152030iMXPL10..U202207

mainG1271K0010iMXPL10..N202207

G1272CHOSE, MOTOR COOLING, NO.2

mainG1272K0010iMXPL10202207

9046616002

main90466-16002¥220

9167180616

main91671-80616¥60

15 parts on this diagram · 2 diagrams in section
