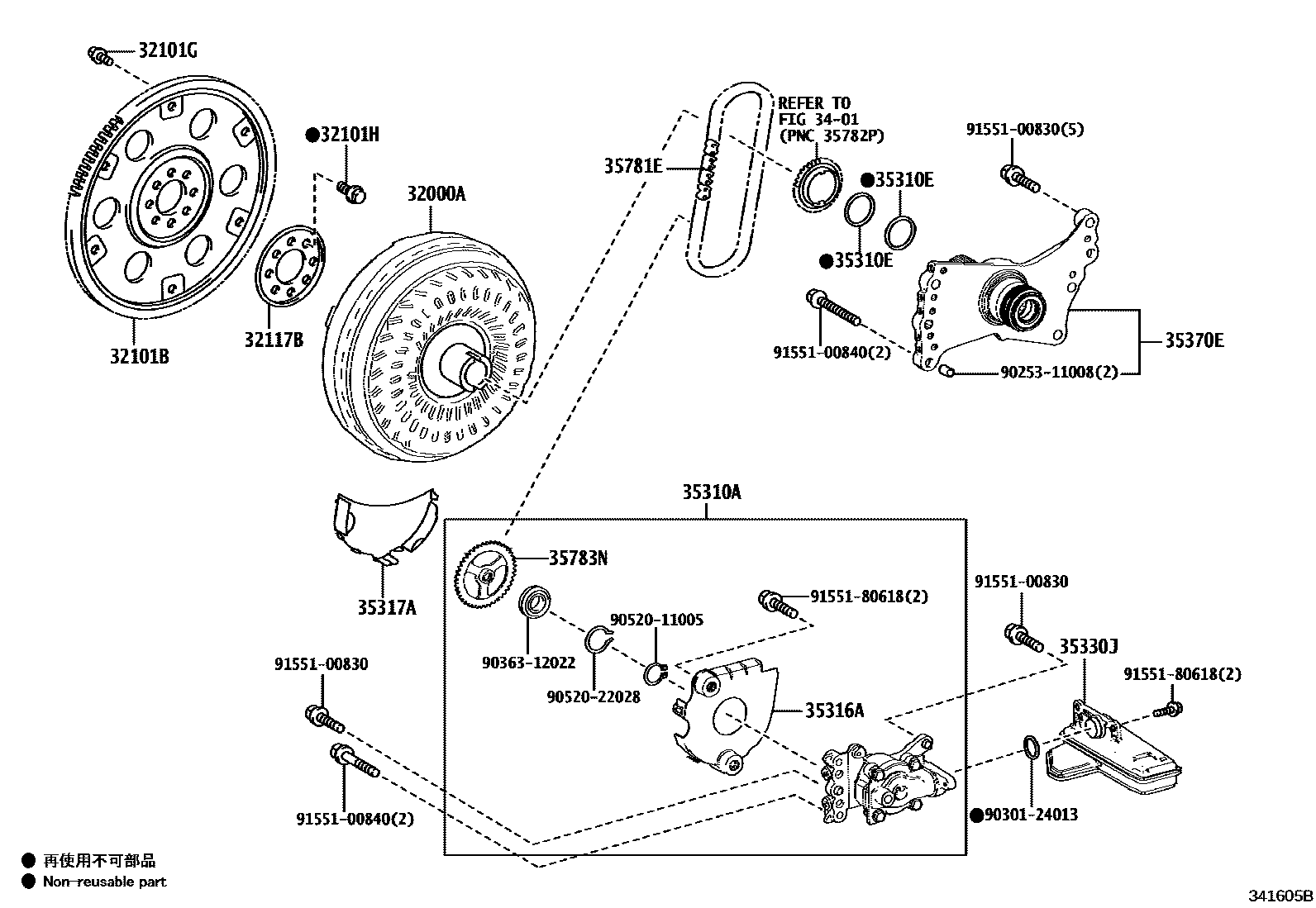

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-K0010iMXPC10..N¥74,000202207-202405

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52100iMXPC10..N¥11,600202207-202405

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iMXPC10..U¥80202207-202405

*8-1.25PX12-8.4,BLACK

main90119-08498iMXPC10..U¥80202207-202405

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXPC10..N¥100202207-202405

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXPC10..N¥920202207-202405

3401

35310APUMP ASSY, FRONT OIL

main35300-12020iMXPC10..N¥48,000202207-202405

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12080iMXPC10..N¥160202207-202405

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXPC10..N¥980202207-202405

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXPC10..N¥590202207-202405

35330JSTRAINER ASSY, OIL

main35330-12070iMXPC10..N¥3,950202207-202405

35370ESHAFT ASSY, STATOR (CVT)

main35370-K0011iMXPC10..N¥14,900202207-202405

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXPC10..N¥5,100202207-202405

35783NSPROCKET, DRIVEN

main35783-12060iMXPC10..N¥1,310202207-202405

9025311008

main90253-11008¥70

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

22 parts on this diagram · 1 diagram in section
