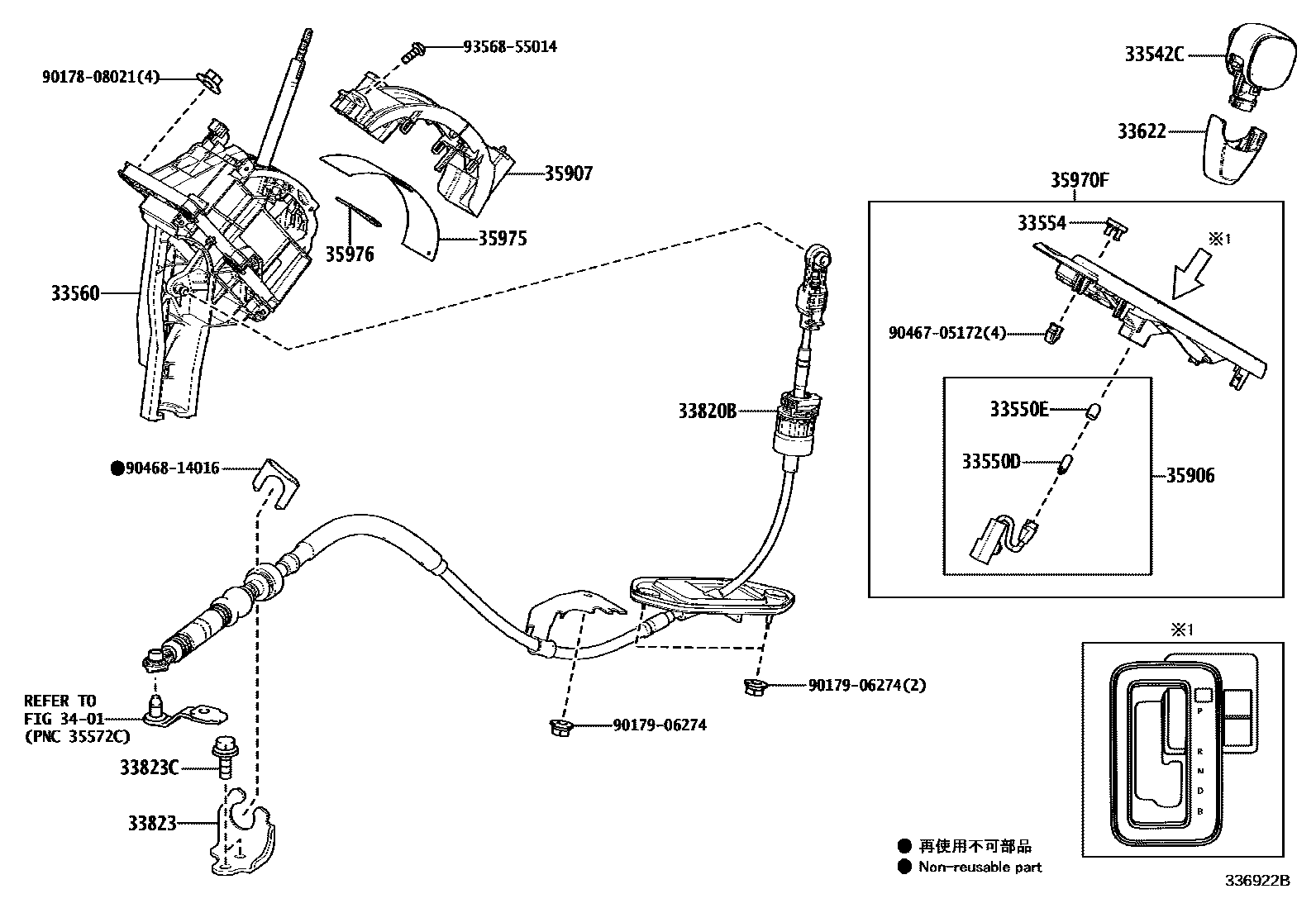

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33542CKNOB, SHIFT LEVER

main33542-52270iMXPC10..N202207-202405

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iMXPC10..N202207-202405

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main35956-52060iMXPC10..N202207-202405

33554CAP, SHIFT LEVER

main33554-52180iMXPC10..N202207-202405

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52740iMXPC10..N202207-202405

main33560-52760iMXPL10..N202207

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-52110iMXPC10..N202207-202405

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52B10iMXPC10..N202207-202405

main33820-52B20iMXPL10..N202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-K0040iMXPC10..N202207-202405

main33823-K0050iMXPL10..N202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMXPC10..N202207-202405

main91671-80820iMXPL10..N202207

3401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52300iMXPC10..N202207-202508

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-52400iMXPC10..N202207-202405

main35907-52410iMXPL10..N202207

35970FHOUSING ASSY, POSITION INDICATOR

main35970-52290iMXPC10..N202207-202508

main35970-52310iMXPL10..N202207-202508

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-28050iMXPC10..N202207-202405

main35975-28060iMXPL10..N202207

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-26030iMXPC10..N202207-202405

9017808021

main90178-08021

9017906274

main90179-06274

9046705172

main90467-05172

9046814016

main90468-14016

9356855014

main93568-55014

20 parts on this diagram · 3 diagrams in section
