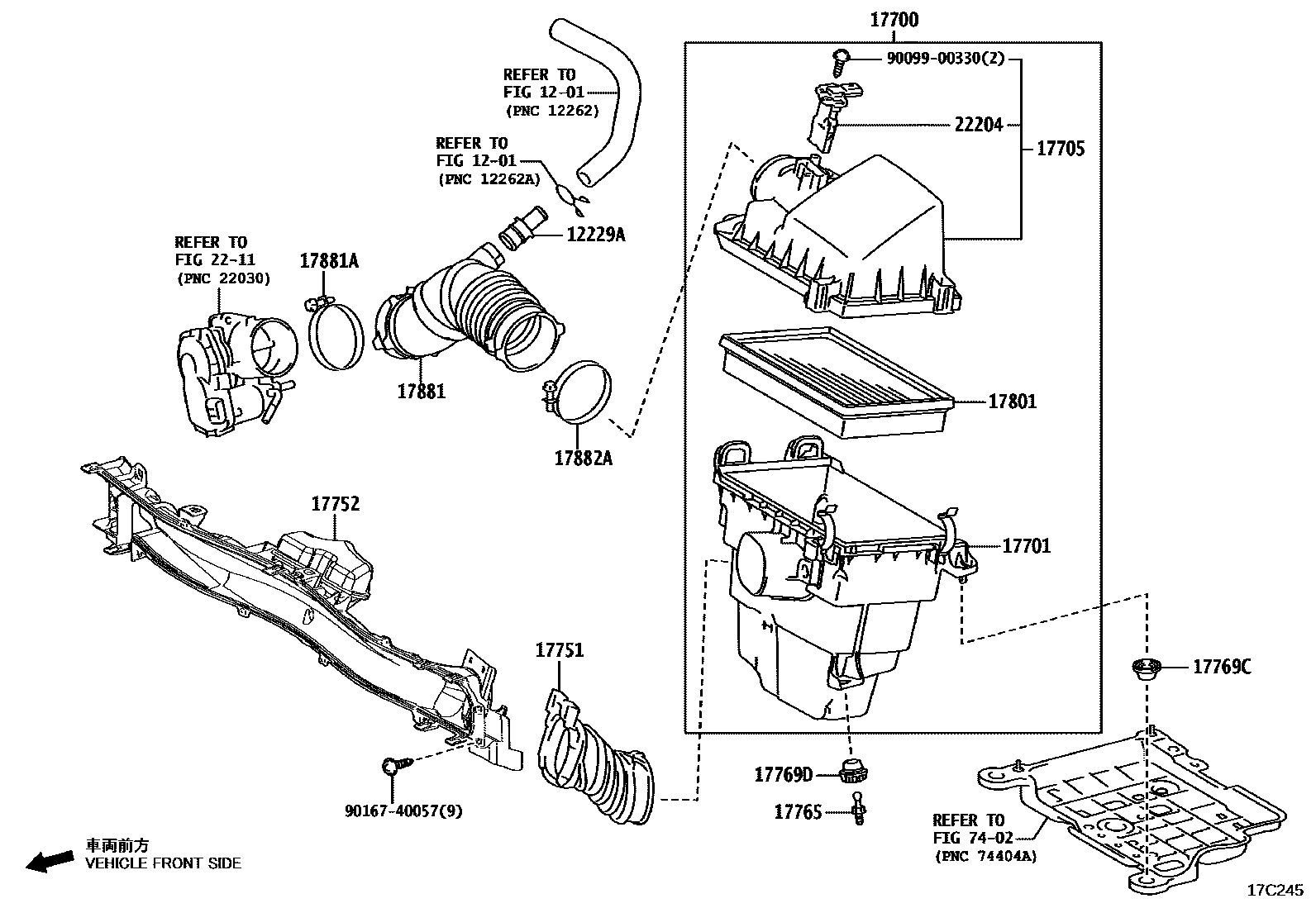

AIR CLEANER
1201
12229APIPE, VENTILATION
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17765STAY, AIR CLEANER, NO.1
17769CSUPPORT, AIR CLEANER, NO.1
17769DSUPPORT, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
7402
9009900330
main90099-00330
9016740057
main90167-40057
19 parts on this diagram · 2 diagrams in section
