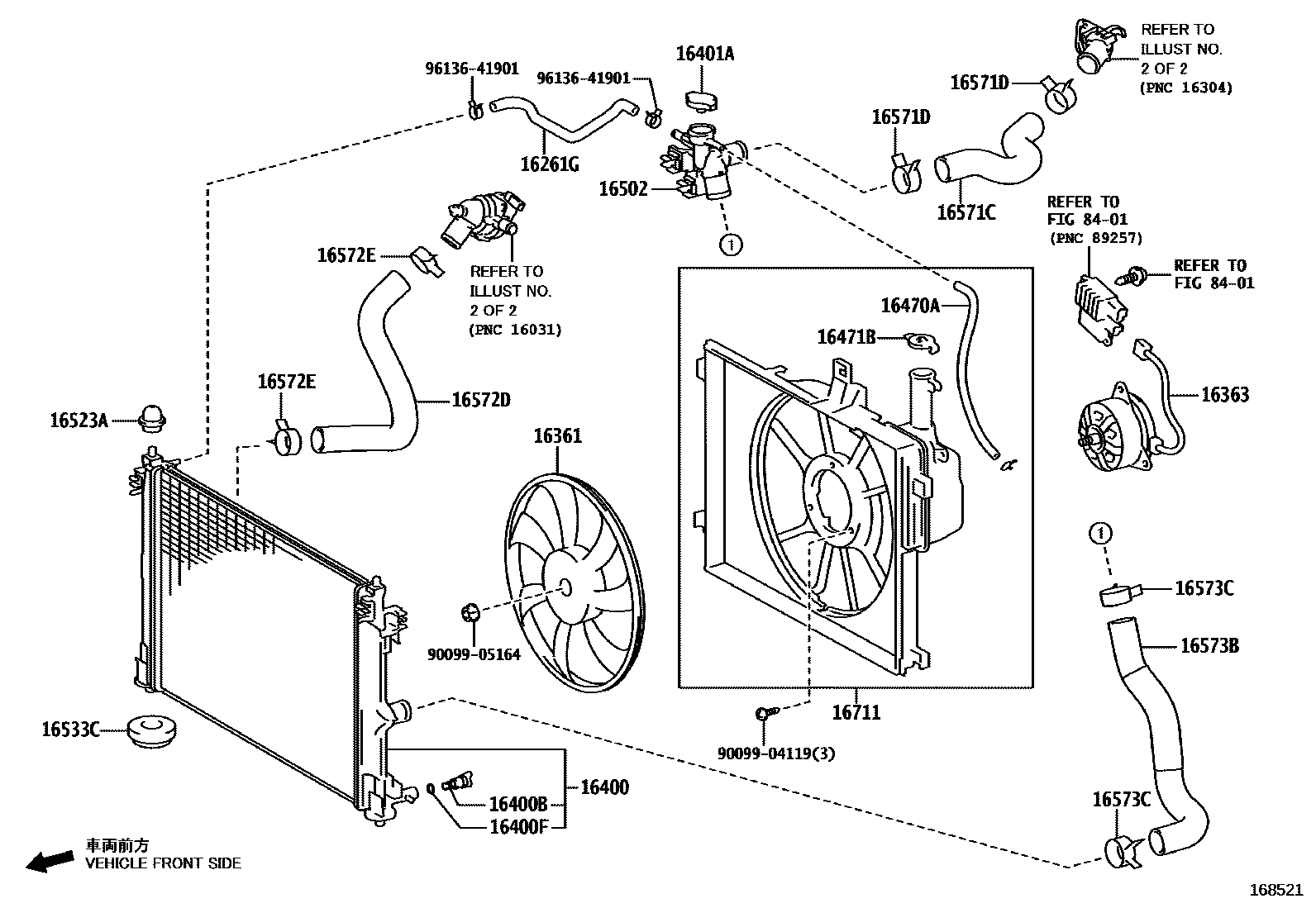

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16361FAN
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
SINGAPORE SPEC
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16711SHROUD, FAN
8401
9009904119
main90099-04119
9009905164
9613641901
23 parts on this diagram · 4 diagrams in section
