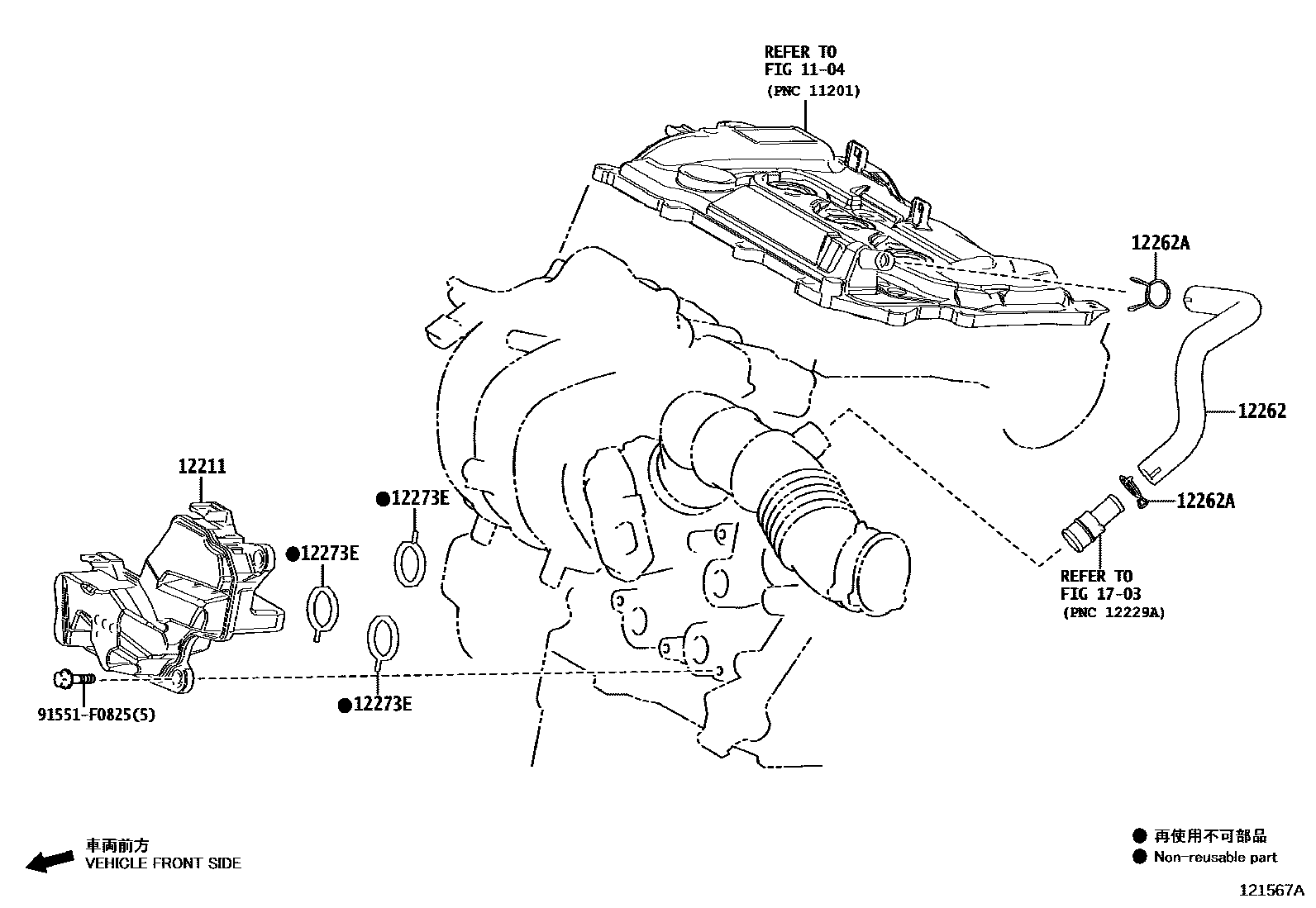

VENTILATION HOSE

1104

12211CASE, VENTILATION, NO.1

main12211-15060iM15#..MXPC10,MXPL10202207-202303

sub12211-15061

main12211-15061iM15AFKS..MXPC10..N202304-202405

12262HOSE, VENTILATION, NO.2

main12262-15100iM15AFKS..MXPC10..N202207-202405

main12262-15110iM15AFXE..MXPL10202207

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM15AFKS..MXPC10..N202207-202405

12273EGASKET(FOR VENTILATION CASE)

main12273-15010iM15AFKS..MXPC10..N202207-202405

1703

91551F0825

main91551-F0825

7 parts on this diagram · 1 diagram in section
