ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52C20iNHP170201507-202207

main86101-52C30iNSP170201506-202207

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52C10iNHP170,NSP170201506-202207

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52680iNHP170,NSP170201506-202207

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iNHP170,NSP170201506-202207

86396NUT, ANTENNA

main86396-47010iNHP170,NSP170201506-202207

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906A07

main90119-06A07

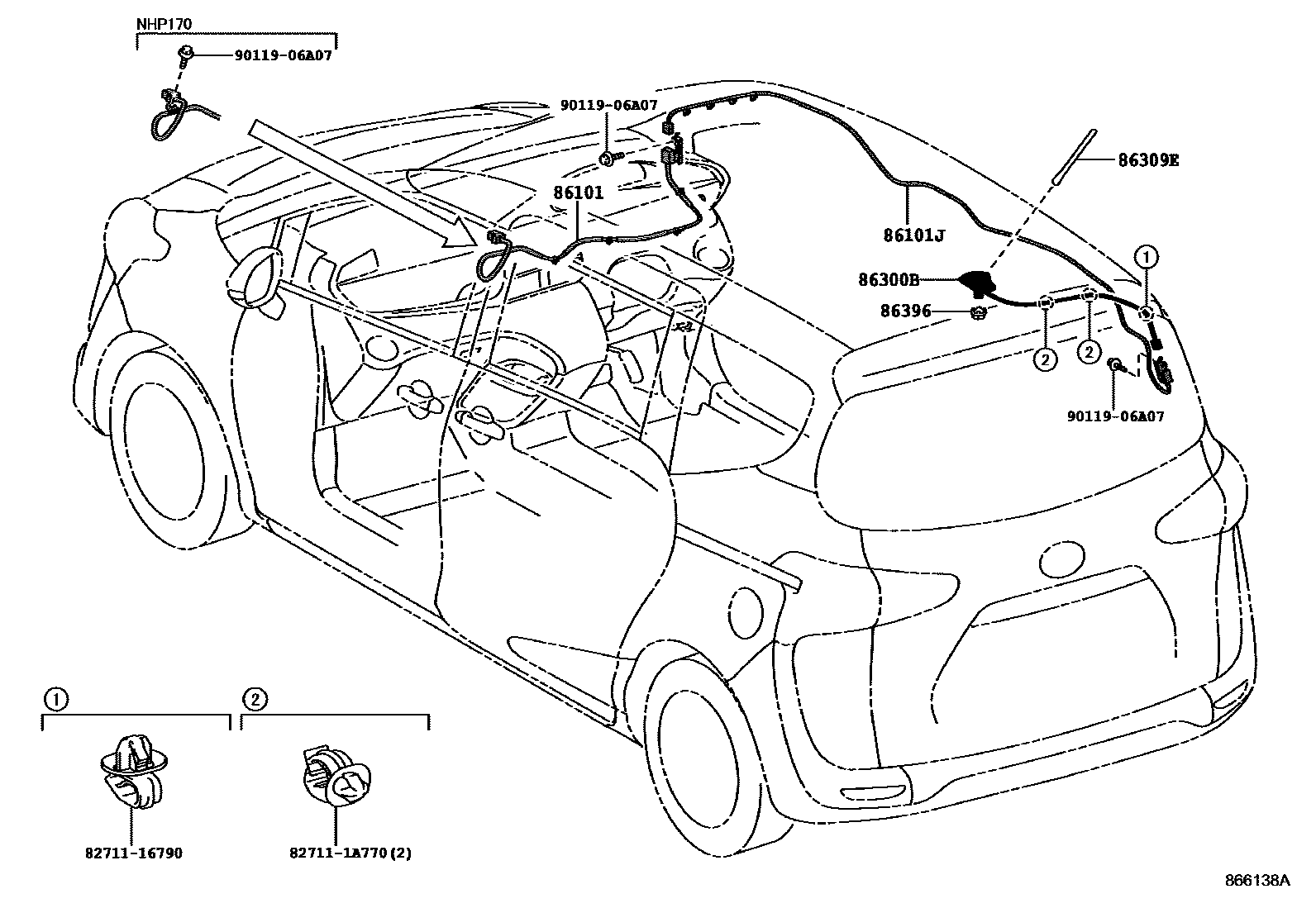

8 parts on this diagram · 1 diagram in section
