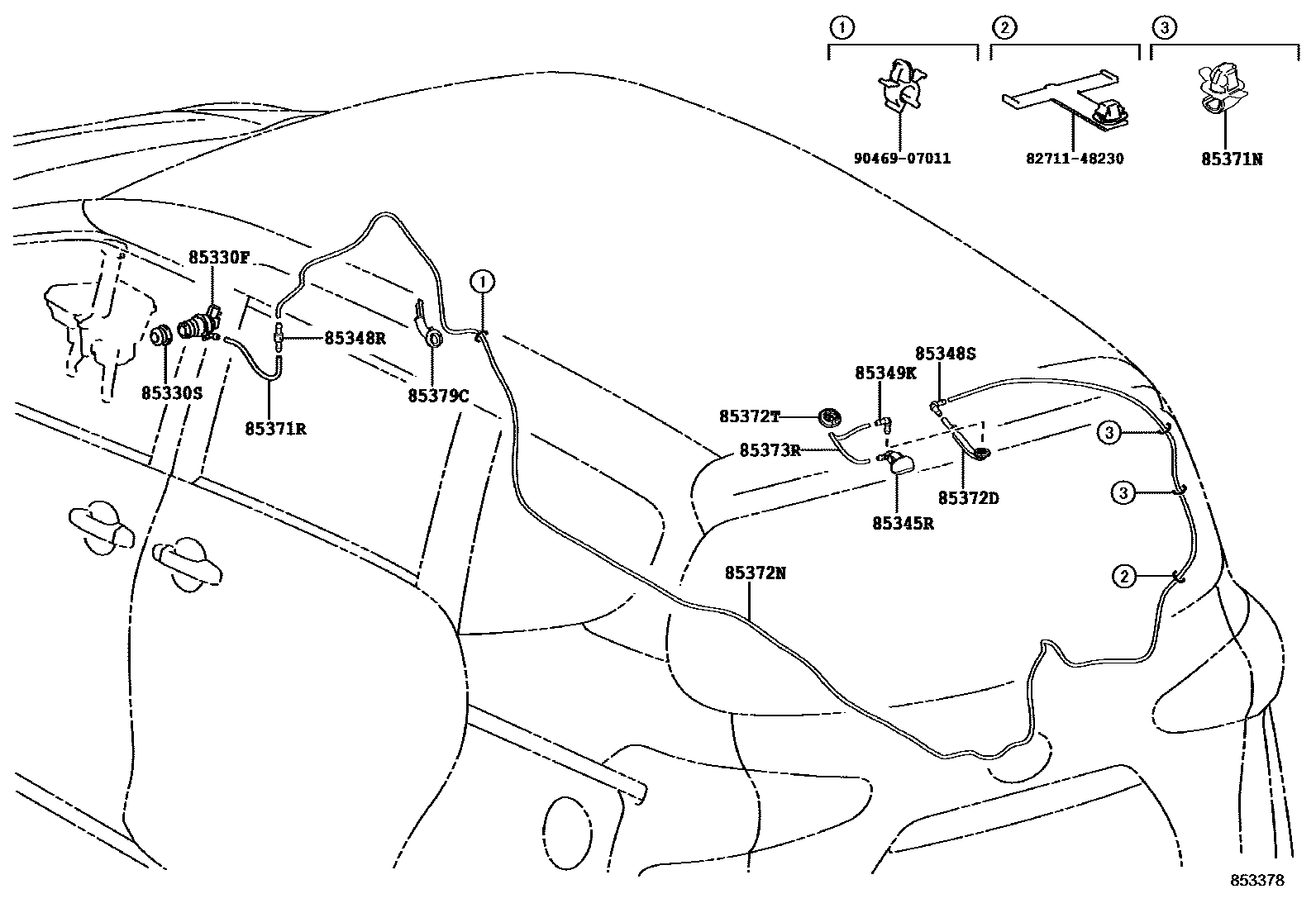

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNHP170,NSP170201506-201809

85330SBUSH, REAR WASHER JAR

main85336-60300iNHP170,NSP170201506-201809

85345RNOZZLE, REAR WASHER

main85391-52190iNHP170,NSP170201506-201809

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNHP170,NSP170201506-201809

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNHP170,NSP170201506-201809

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNHP170,NSP170201506-201809

85371NCLAMP, REAR WASHER HOSE

main85371-12040×2iNHP170,NSP170201506-201809

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNHP170,NSP170201506-201809

L=1450(*H,L=100)

85372DGROMMET, REAR WASHER HOSE

main85372-20040iNHP170,NSP170201506-201809

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59390iNHP170,NSP170201506-201809

L=5355

main90099-59402iNHP170,NSP170201809-202207

L=5425

85372TGROMMET, WASHER

main85372-20020iNHP170,NSP170201506-201809

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNHP170,NSP170201506-201611

L=1000(*H,L=265)

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-52530iNHP170,NSP170201506-201809

8271148230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48230

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
