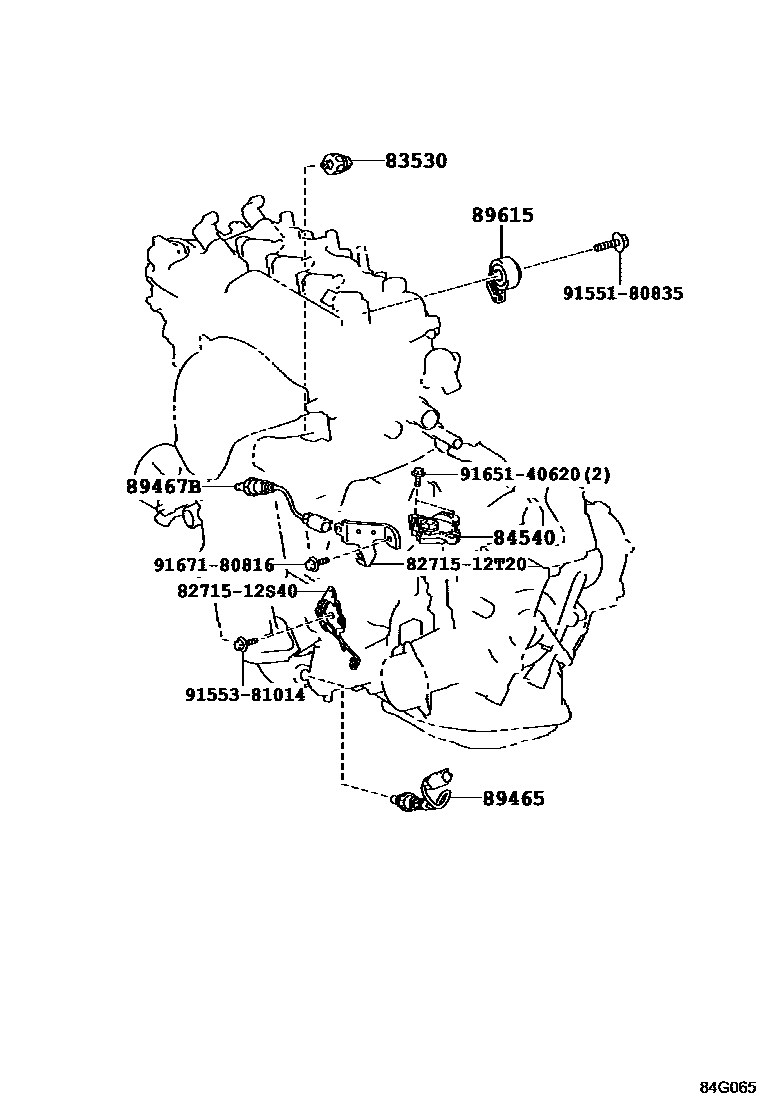

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR 0012 1FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNHP170,NSP170¥1,970201506-202207

DENSO,*369

main83530-60020iNHP170,NSP170¥1,970201506-202207

YAZAKI,*369

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP170¥7,600201506-202207

89465SENSOR, OXYGEN

main89465-52670iNHP170¥6,500201507-202207

main89465-52740iNSP170¥6,500201506-202207

89467BSENSOR, AIR FUEL RATIO

main89467-52080iNHP170¥9,900201507-202207

main89467-52240iNSP170¥9,900201506-202207

89615SENSOR, KNOCK CONTROL

main89615-20090iNHP170,NSP170¥2,370201506-202207

8271512S40BRACKET,WIRING HARNESS CLAMP

main82715-12S40¥540

8271512T20BRACKET,WIRING HARNESS CLAMP

main82715-12T20¥540

9155180835

main91551-80835¥80

9155381014

main91553-81014¥100

9165140620

main91651-40620¥70

9167180816

main91671-80816¥80

11 parts on this diagram · 12 diagrams in section
