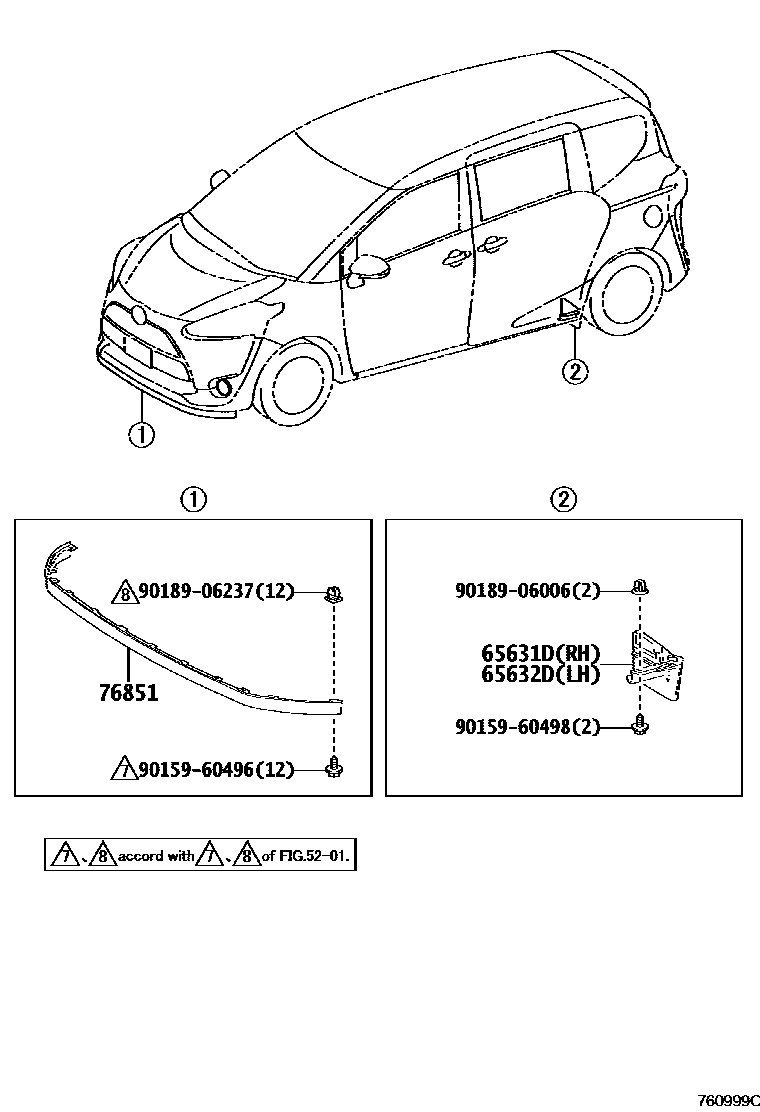

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52140iNHP170,NSP170201506-202207

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52140iNHP170,NSP170201506-202207

76851COVER, FRONT SPOILER

main76851-52170iNHP170,NSP170201506-202207

9015960496

main90159-60496

9015960498

main90159-60498

9018906006

main90189-06006

9018906237

main90189-06237

7 parts on this diagram · 1 diagram in section
