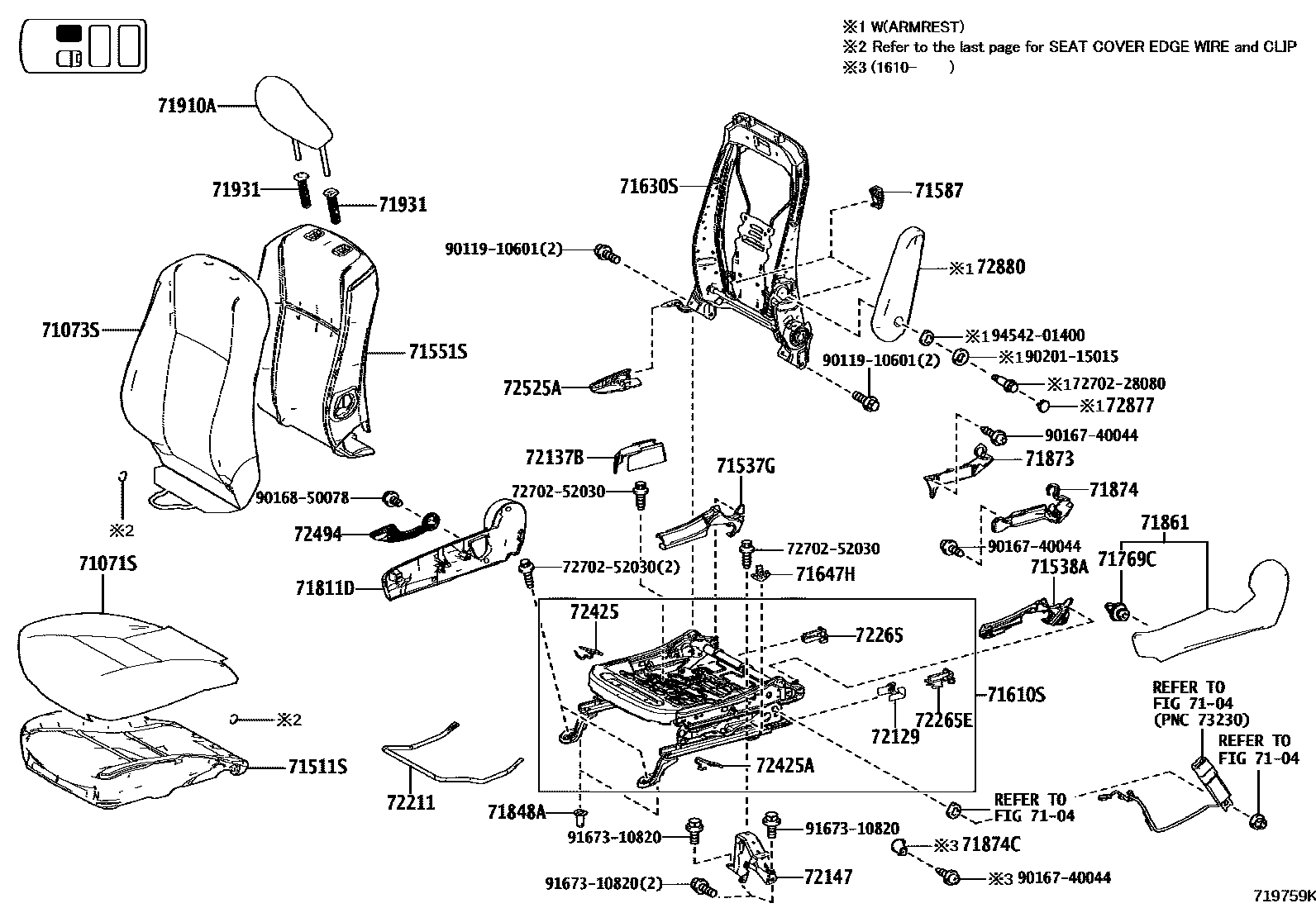

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1SEAT COVER EDGE WIRE & CLIP

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-52M90-B0iNHP170,NSP170..N201506-201809

FROMAGE/DK.GRAY,TRIM0#

sub71071-52N10

main71071-52M90-B1iNHP170,NSP170..N201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

sub71071-52N10

main71071-52P10-B0iNHP170,NSP170..Q201506-201809

DK.BROWN/DK.GRAY,TRIM0#

sub71071-52P30

main71071-52P10-B1iNHP170,NSP170..Q201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

sub71071-52P30

main71071-52Z20-A0iNHP170,NSP170..07S..N201809-202102

FROMAGE/DK.GRAY,TRIM0#

sub71071-5CC60

main71071-52Z20-A1iNHP170,NSP170..07S..N202102-202207

FROMAGE/BLACK,TRIM0#

sub71071-5CC60

main71071-52Z20-C0iNHP170,NSP170..N201809-202102

BLACK/DK.GRAY,TRIM2#

sub71071-5CC60

main71071-52Z20-C1iNHP170,NSP170..N202102-202207

BLACK/BLACK,TRIM2#

sub71071-5CC60

main71071-5CB40-B0iNHP170,NSP170..Q201809-202102

DK.GRAY,TRIM2#

sub71071-5CB60

main71071-5CB40-B1iNHP170,NSP170..Q202102-202207

DK.GRAY/BLACK,TRIM2#

sub71071-5CB60

main71071-5CB40-E0iNHP170,NSP170..07S..Q201809-202102

DK.BROWN/DK.GRAY,TRIM0#

sub71071-5CB60

main71071-5CB40-E1iNHP170,NSP170..07S..Q202102-202207

DK.BROWN/BLACK,TRIM0#

sub71071-5CB60

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-52R50-A0iNHP170,NSP170..N201506-201809

FROMAGE/DK.BROWN,TRIM0#

main71073-52R50-C0iNHP170,NSP170..N201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main71073-52Y70-C0iNHP170,NSP170..Q201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main71073-52Y70-E0iNHP170,NSP170..Q201506-201809

DK.BROWN,TRIM0#

main71073-5C450-B1iNHP170,NSP170..Q201809-202006

DK.GRAY,TRIM2#

main71073-5C450-E1iNHP170,NSP170..Q201809-202006

DK.BROWN,TRIM0#

main71073-5C820-A0iNHP170,NSP170..N201809-202006

FROMAGE/DK.BROWN,TRIM0#

main71073-5C820-C0iNHP170,NSP170..N201809-202006

BLACK/DK.GRAY,TRIM2#

main71073-5C880-A0iNHP170,NSP170..07S..N202006-202207

FROMAGE/DK.BROWN,TRIM0#

sub71073-5C880

main71073-5C880-C0iNSP170..05S..N202006-202102

BLACK/DK.GRAY,TRIM2#

sub71073-5C880

main71073-5C880-C1iNHP170,NSP170..N202102-202207

BLACK/BLACK,TRIM2#

sub71073-5C880

main71073-5CP40-B1iNSP170..05S..Q202006-202102

DK.GRAY,TRIM2#

sub71073-5CP40

main71073-5CP40-B2iNHP170,NSP170..Q202102-202207

DK.GRAY/BLACK,TRIM2#

sub71073-5CP40

main71073-5CP40-E1iNHP170,NSP170..07S..Q202006-202207

DK.BROWN,TRIM0#

sub71073-5CP40

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-52740iNHP170,NSP170201506-201907

main71511-52870iNHP170,NSP170201806-202207

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-52150-C0iNHP170,NSP170201506-202207

BLACK,TRIM0#,2#

main71537-52150-C0iNSP170..05S202006-202207

BLACK,TRIM2#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-52090-C0iNHP170,NSP170..07S201506-202207

BLACK,TRIM0#,2#

main71538-52090-C0iNSP170..05S202006-202207

BLACK,TRIM2#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-52D30iNHP170,NSP170..Q201506-202207

main71551-52D50iNHP170,NSP170..N201506-202207

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52040iNHP170,NSP170201506-202207

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-52300iNHP170,NSP170201506-202207

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-52680iNHP170,NSP170..Q201506-202207

main71630-52730iNHP170,NSP170..N201506-202207

71647HPROTECTOR, FRONT SEAT CUSHION EDGE

main71537-52180iNHP170,NSP170201809-202207

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-47020iNHP170,NSP170201506-202207

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52440-C0iNHP170,NSP170201506-202207

BLACK,TRIM0#,2#

main71811-52440-C0iNSP170..05S202006-202207

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-48050iNHP170,NSP170201506-202207

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52330-C0iNHP170,NSP170201506-202207

BLACK,TRIM0#,2#

main71861-52330-C0iNSP170..05S202006-202207

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iNHP170,NSP170201506-202207

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iNHP170,NSP170201506-202207

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71873-68020iNHP170,NSP170201610-202207

71910AHEADREST ASSY, FRONT SEAT

main71910-52A50-C1iNHP170,NSP170..Q201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main71910-52A50-E0iNHP170,NSP170..Q201506-201809

DK.BROWN,TRIM0#

main71910-52E90-A0iNHP170,NSP170..N201506-201809

FROMAGE/DK.BROWN,TRIM0#

main71910-52E90-C1iNHP170,NSP170..N201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main71910-52L80-B0iNHP170,NSP170..N201809-202102

DK.GRAY/BLACK,TRIM2#

main71910-52L80-C0iNHP170,NSP170..N202102-202207

BLACK,TRIM2#

main71910-52L80-E0iNHP170,NSP170..07S..N201809-202207

DK.BROWN/FROMAGE,TRIM0#

main71910-52N80-B0iNHP170,NSP170..Q201809-202102

DK.GRAY/BLACK,TRIM2#

main71910-52N80-C0iNHP170,NSP170..Q202102-202207

BLACK/BLACK,TRIM2#

main71910-52N80-E0iNHP170,NSP170..07S..Q201809-202207

DK.BROWN,TRIM0#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C0iNHP170,NSP170201506-201610

W(LOCK),BLACK,TRIM0#,2#

main71930-47050-C5iNSP170..05S202006-202207

W(LOCK),BLACK,TRIM2#

main71930-47050-C5iNHP170,NSP170201610-202207

W(LOCK),BLACK,TRIM0#,2#

main71931-47030-C0iNHP170,NSP170201506-201610

W/O(LOCK),BLACK,TRIM0#,2#

main71931-47030-C4iNHP170,NSP170..07S201610-202207

W/O(LOCK),BLACK,TRIM0#,2#

main71931-47030-C4iNSP170..05S202006-202207

W/O(LOCK),BLACK,TRIM2#

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-52180iNHP170,NSP170201506-202207

72137BCOVER, SEAT TRACK, RH

main72137-52160-C0iNHP170,NSP170201506-202207

BLACK,TRIM0#,2#

main72137-52160-C0iNSP170..05S202006-202207

BLACK,TRIM2#

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-52180iNHP170,NSP170201506-202207

72211HANDLE, SEAT TRACK ADJUSTING

main72211-12350iNHP170,NSP170202006-202207

main72211-47020iNHP170,NSP170201506-201607

main72211-52220iNHP170,NSP170201608-202006

sub72211-12350

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-52030iNHP170,NSP170201506-201808

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-52040iNHP170,NSP170201506-201808

72425BAR, VERTICAL ADJUSTER TORSION, NO.1

main72425-52020iNHP170,NSP170201506-202207

72425ABAR, VERTICAL ADJUSTER TORSION NO.2

main72426-52010iNHP170,NSP170201506-202207

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-68010-C0iNHP170,NSP170201506-201511

BLACK,TRIM0#,2#

sub72494-68010

main72494-68011-C0iNHP170,NSP170201511-202207

BLACK,TRIM0#,2#

sub72494-68011

main72494-68011-C0iNSP170..05S202006-202207

BLACK,TRIM2#

sub72494-68011

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iNHP170,NSP170201506-201710

BLACK,TRIM0#,2#

sub72525-47010

sub72525-52050

main72525-47010-C1iNHP170,NSP170201710-202207

BLACK,TRIM0#,2#

sub72525-47010

sub72525-52050

main72525-47010-C1iNSP170..05S202006-202207

BLACK,TRIM2#

sub72525-47010

sub72525-52050

72877COVER, SEAT ARMREST, RH

main71877-68010-C0iNHP170,NSP170..Q201506-202207

BLACK,TRIM0#,2#

main71877-68010-C0iNSP170..05S..Q202006-202207

BLACK,TRIM2#

72880ARMREST ASSY, SEAT, C RH

main72810-52180-B0iNHP170,NSP170..Q201506-201809

DK.GRAY,TRIM2#

main72810-52180-E1iNHP170,NSP170..Q201506-201809

DK.BROWN,TRIM0#

main72810-52220-B0iNHP170,NSP170..Q201809-202102

DK.GRAY,TRIM2#

main72810-52220-B0iNHP170,NSP170..Q202102-202106

DK.GRAY,TRIM20

main72810-52220-C0iNHP170,NSP170..Q202102-202106

BLACK/LT.BROWN,TRIM20

main72810-52220-C0iNHP170,NSP170..Q202106-202207

BLACK/LT.BROWN,TRIM2#

main72810-52220-E0iNHP170,NSP170..07S..Q201809-202207

DK.BROWN,TRIM0#

7270228080BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28080

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9020115015

main90201-15015

9167310820

main91673-10820

9454201400

main94542-01400

40 parts on this diagram · 3 diagrams in section
