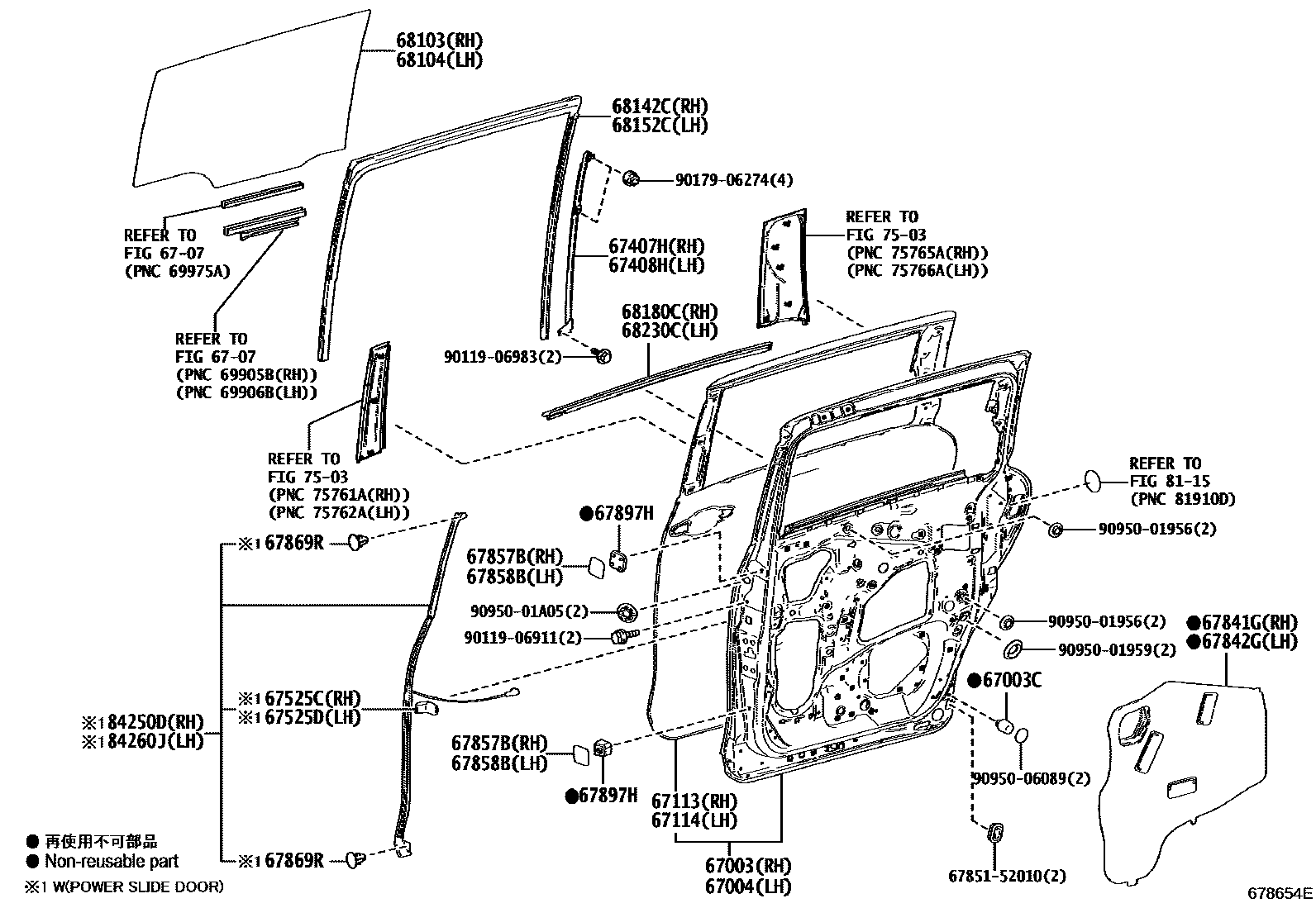

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52570iNHP170,NSP170..Q201506-202207

main67003-52580iNHP170,NSP170..N201506-202207

67003CCUSHION, REAR DOOR PANEL

main67897-52060iNHP170,NSP170201506-202207

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-52610iNHP170,NSP170201506-202207

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-52230iNHP170,NSP170201506-202207

67114PANEL, REAR DOOR, OUTER LH

main67114-52260iNHP170,NSP170201506-202207

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-52200iNHP170,NSP170201506-202207

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-52190iNHP170,NSP170201506-202207

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-52010iNHP170,NSP170..Q201506-202207

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-52010iNHP170,NSP170201506-202207

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-52120iNHP170,NSP170201506-202203

sub67841-52121

main67841-52121iNHP170,NSP170202204-202207

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-52190iNHP170,NSP170201506-202203

sub67842-52191

main67842-52191iNHP170,NSP170202204-202207

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-52120iNHP170,NSP170201506-202207

LOWER

main67857-52140iNHP170,NSP170201506-202207

UPPER

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-52110iNHP170,NSP170201506-202207

LOWER

main67858-52120iNHP170,NSP170201506-202207

UPPER

67869RCLIP(FOR POWER SLIDE DOOR SENSOR)

main67869-28020iNHP170,NSP170..Q201506-202207

67897HCUSHION, REAR DOOR

main67897-52040iNHP170,NSP170201506-202207

UPPER

main67897-52050iNHP170,NSP170201506-202207

LOWER

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-52370iNHP170,NSP170201506-202207

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-52400iNHP170,NSP170201506-202207

68142CRUN, REAR DOOR GLASS, RH

main68142-52210iNHP170,NSP170201506-202207

68152CRUN, REAR DOOR GLASS, LH

main68152-52220iNHP170,NSP170201506-202207

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52190iNHP170,NSP170201506-201909

sub68180-52191

main68180-52191iNHP170,NSP170201910-202207

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52190iNHP170,NSP170201506-201909

sub68230-52191

main68230-52191iNHP170,NSP170201910-202207

7503

8115

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-52280iNHP170,NSP170..Q201506-202207

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-52040iNHP170,NSP170201506-202207

6785152010WEATHERSTRIP, CENTER DOOR, SIDE, FRONT

main67851-52010

9011906911

main90119-06911

9011906983

main90119-06983

9017906274

main90179-06274

9095001956

main90950-01956

9095001959

main90950-01959

9095001A05

main90950-01A05

9095006089

main90950-06089

34 parts on this diagram · 2 diagrams in section
