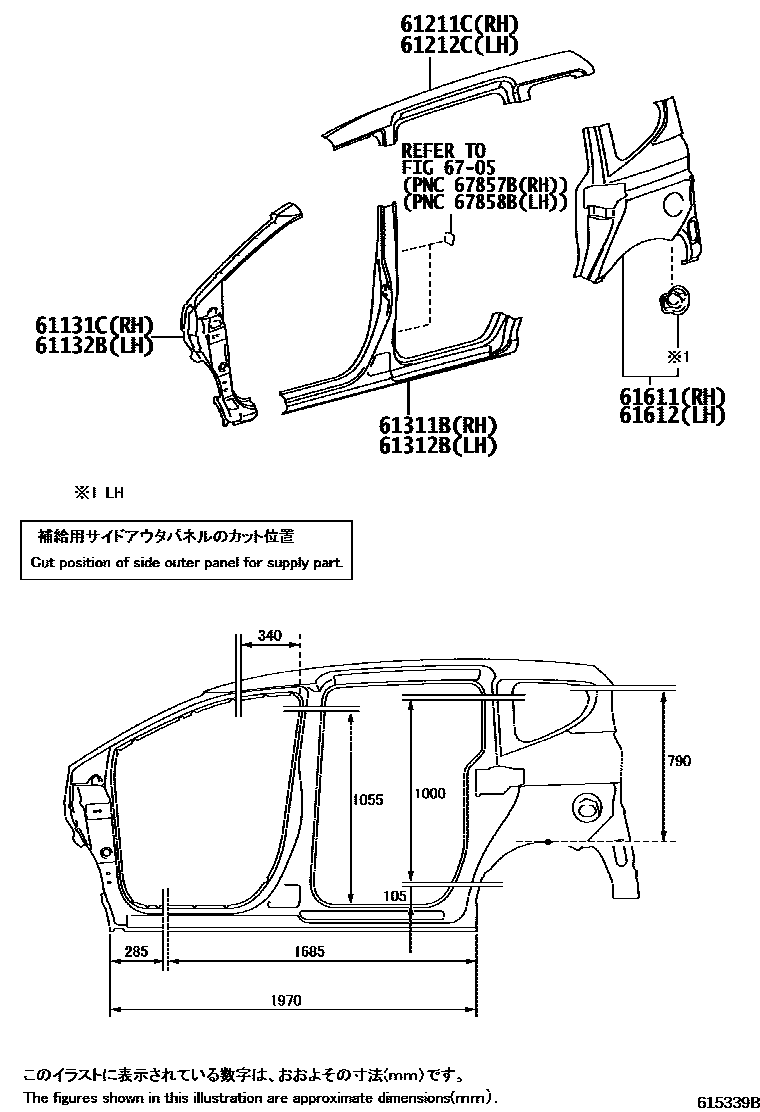

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-52370iNHP170,NSP170201506-202207

61132BPILLAR, FRONT BODY, OUTER LH

main61132-52330iNHP170,NSP170201506-202207

61211CRAIL, ROOF SIDE, RH

main61211-52220iNHP170,NSP170201506-202207

61212CRAIL, ROOF SIDE, LH

main61212-52240iNHP170,NSP170201506-202207

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52080iNHP170,NSP170201506-202207

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52070iNHP170,NSP170201506-202207

61611PANEL, QUARTER, RH

main61611-52490iNHP170,NSP170201506-202207

61612PANEL, QUARTER, LH

main61602-52800iNHP170,NSP170201506-202207

6705

9 parts on this diagram · 3 diagrams in section
