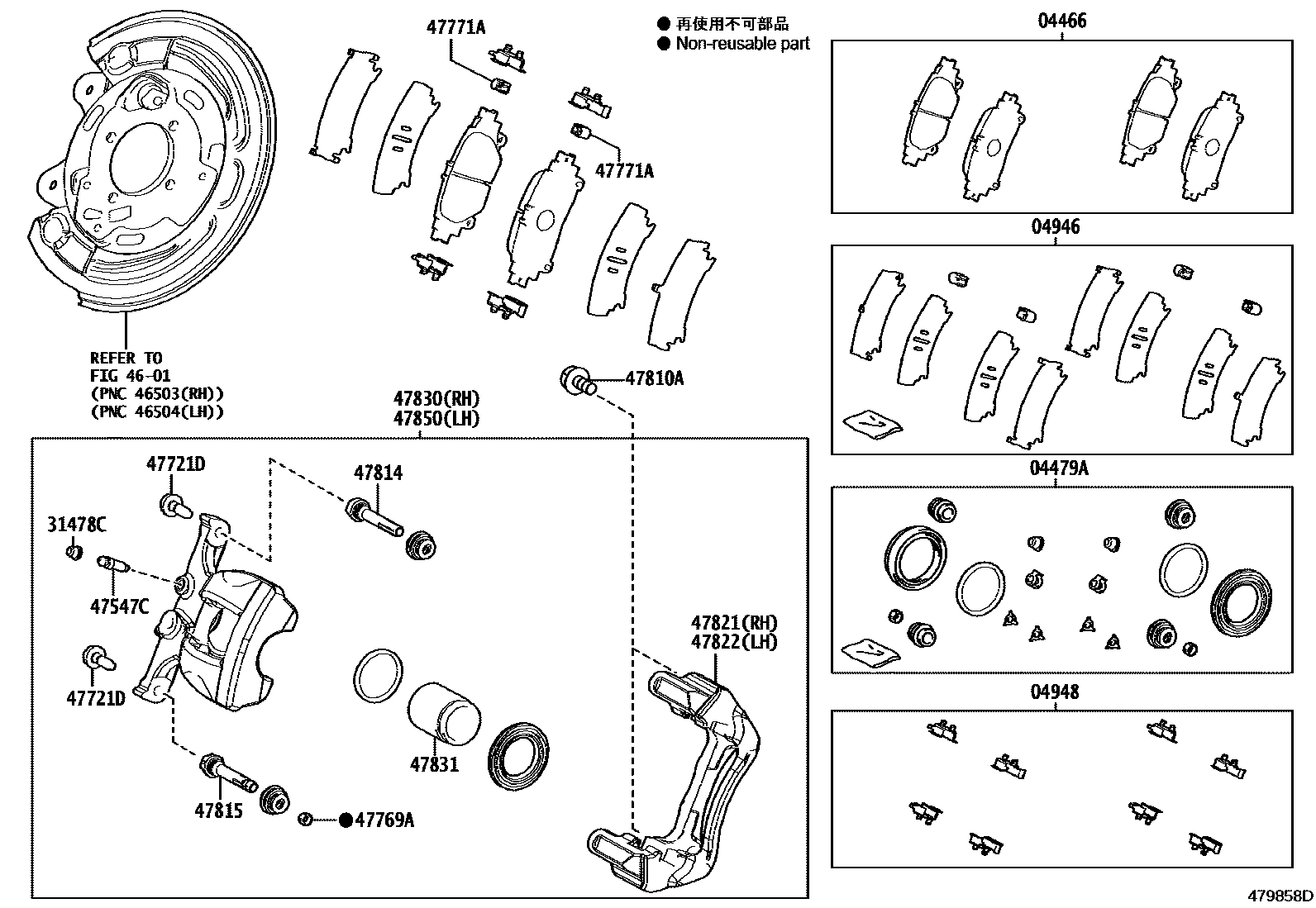

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52180iNHP170,NSP170201506-202207

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52260iNHP170,NSP170201506-202207

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47080iNHP170,NSP170201506-202207

04948FITTING KIT, DISC BRAKE, REAR

main04948-30240iNHP170,NSP170201506-202207

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iNHP170,NSP170201506-202207

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iNHP170,NSP170201506-202207

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iNHP170,NSP170201506-202207

*8-1.00PX23-15

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iNHP170,NSP170201506-202207

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-72010iNHP170,NSP170201506-202207

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12430iNHP170,NSP170201506-202207

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iNHP170,NSP170201506-202207

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iNHP170,NSP170201506-202207

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-52210iNHP170,NSP170201506-202207

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-52210iNHP170,NSP170201506-202207

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52210iNHP170,NSP170201506-202207

47831PISTON, REAR DISC BRAKE

main47831-30330iNHP170,NSP170201506-202207

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52210iNHP170,NSP170201506-202207

18 parts on this diagram · 1 diagram in section
