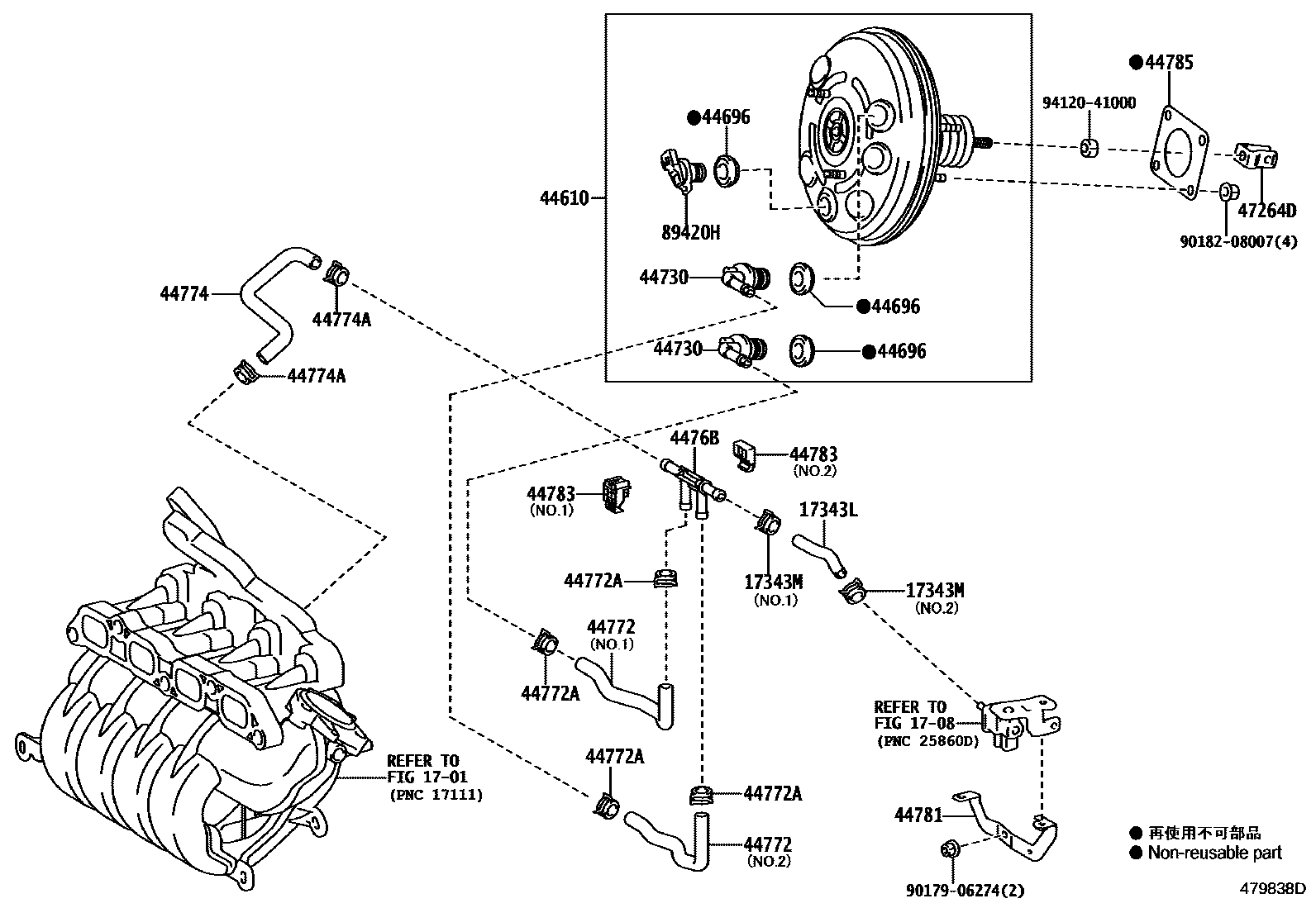

BRAKE BOOSTER & VACUUM TUBE
1701
1708
17343LHOSE, AIR, NO.3
17343MCLIP(FOR AIR HOSE NO.3)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
LOWER
UPPER
4476BEJECTOR, BRAKE BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
NO.1:REFER ILLUST.
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44781BRACKET, HOSE
44783CLAMP, VACUUM HOSE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
89420HSENSOR ASSY, VACUUM
9017906274
9018208007
9412041000
20 parts on this diagram · 1 diagram in section
