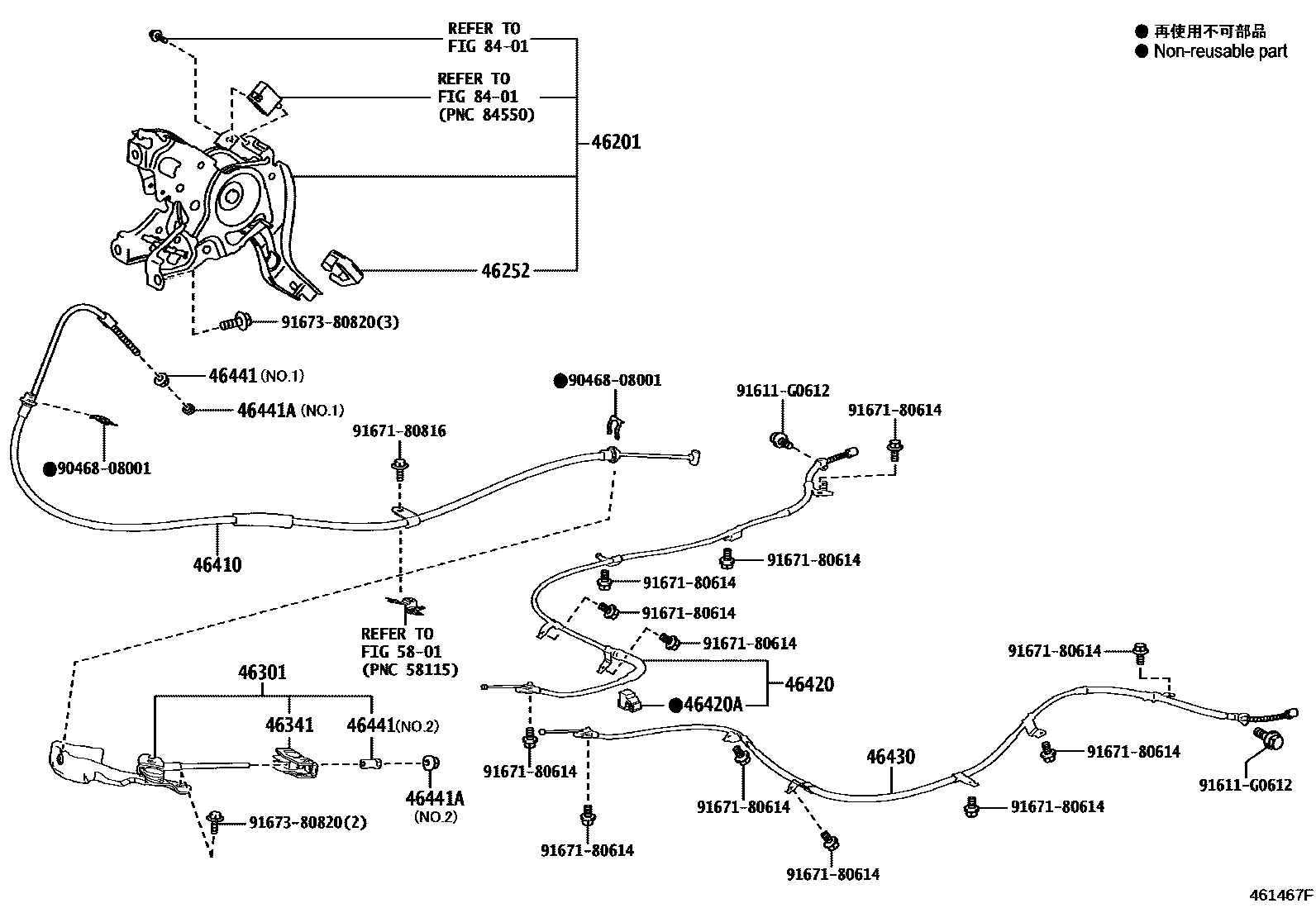

PARKING BRAKE & CABLE

0001 1 0002 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52110iNHP170,NSP170201506-202207

46252PAD, PARKING PEDAL

main46252-52020iNHP170,NSP170201506-202207

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52031iNHP170,NSP170201506-202207

46341EQUALIZER, PARKING BRAKE

main46341-52030iNHP170,NSP170201506-202207

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52120iNHP170,NSP170201506-202207

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52250iNHP170,NSP170201506-202207

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-52060iNHP170,NSP170201506-202207

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52310iNHP170,NSP170201506-202207

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iNHP170,NSP170201506-202207

NO.1:REFER ILLUST.

main46441-52010iNHP170,NSP170201506-202207

NO.2:REFER ILLUST.

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iNHP170,NSP170201506-202207

NO.1:REFER ILLUST.

main94151-80600iNHP170,NSP170201506-202207

NO.2:REFER ILLUST.

5801

8401

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167180816

main91671-80816

9167380820

main91673-80820

17 parts on this diagram · 2 diagrams in section
