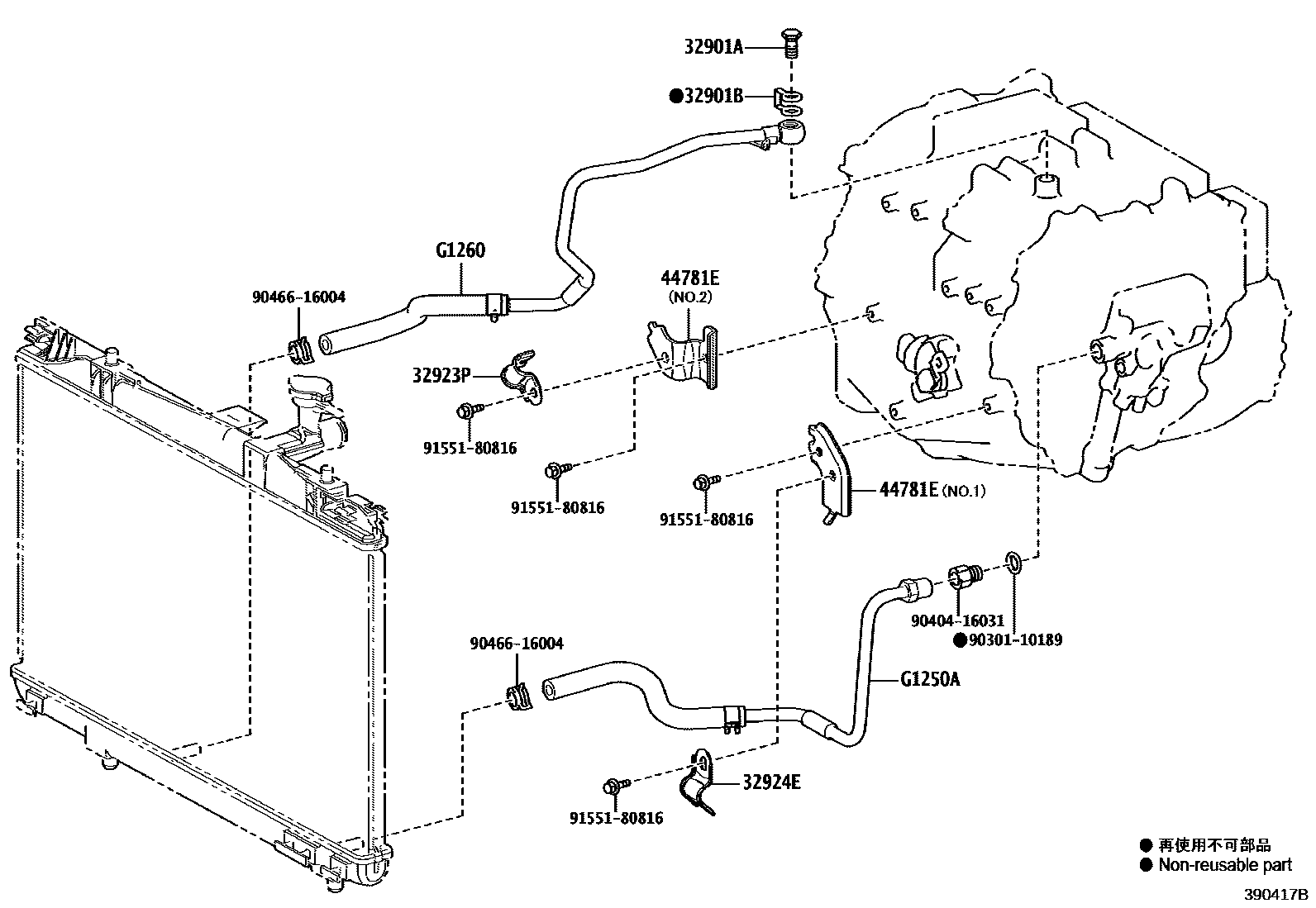

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iNHP170¥390201507-202207

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iNHP170¥80201507-202207

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iNHP170¥200201507-202207

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-52040iNHP170¥200201507-202207

44781EBRACKET, HOSE

main44781-52050iNHP170¥320201507-202207

NO.1:REFER ILLUST.

main44781-52060iNHP170¥440201507-202207

NO.2:REFER ILLUST.

G1250APIPE ASSY, MOTOR COOLING

mainG125052020iNHP170201507-202207

G1260PIPE ASSY, MOTOR COOLING, NO.2

mainG126052010iNHP170201507-202207

9030110189

main90301-10189¥170

9040416031

main90404-16031¥340

9046616004

main90466-16004¥180

9155180816

main91551-80816¥80

11 parts on this diagram · 1 diagram in section
