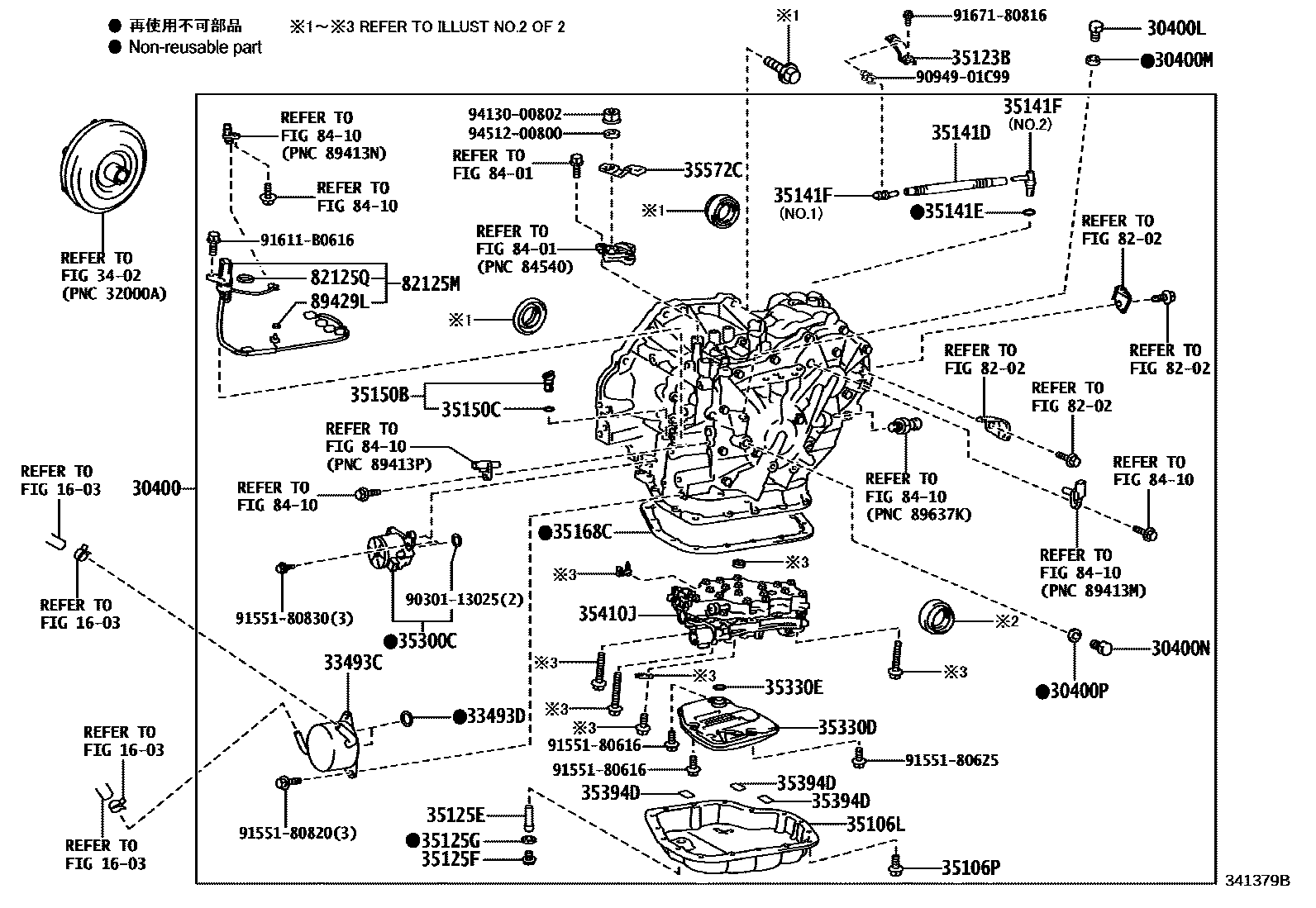

TRANSAXLE ASSY(CVT)

0001 1K312 0002 1K312

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52320iNSP170¥347,000201506-202207

K312

sub30400-52321¥347,000

30400LPLUG , FILLER(CVT)

main90341-12025iNSP170¥190201506-202207

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNSP170¥200201506-202207

30400NPLUG, REFILL(CVT)

main90341-18077iNSP170¥190201506-202207

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP170¥110201506-202207

33493CCOOLER, TRANSMISSION OIL

main33493-52010iNSP170¥6,500201506-202207

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNSP170¥170201506-202207

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12170iNSP170¥5,200201506-201601

sub35106-12171¥3,270

main35106-12171iNSP170¥3,270201602-202207

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNSP170¥80201506-202207

35123BSKIRT,TRANSMISSION BREATHER

main35123-52050iNSP170¥340201506-202207

35125ETUBE, OVERFLOW(CVT)

main35125-12430iNSP170¥130201506-202207

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP170¥190201506-202207

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP170¥90201506-202207

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iNSP170¥590201506-202207

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iNSP170¥170201506-201604

main90301-06021iNSP170¥140201605-202207

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iNSP170¥220201506-202207

NO.1

main90930-03191iNSP170¥260201506-202207

NO.2

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNSP170¥280201506-202207

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNSP170¥140201506-202207

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNSP170¥370201506-202207

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iNSP170¥42,500201506-202207

35330DSTRAINER ASSY, OIL

main35330-0W110iNSP170¥4,480201506-202207

35330ERING, O (FOR OIL STRAINER)

main90301-22014iNSP170¥130201506-201604

main90301-22019iNSP170¥130201605-202207

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iNSP170¥360201506-202207

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12862iNSP170¥72,700201506-202207

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12170iNSP170¥370201506-202207

8202

82125MWIRE, TRANSMISSION

main82125-12641iNSP170¥2,370201506-201807

sub82125-12642¥1,790

main82125-12642iNSP170¥1,790201809-202207

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNSP170¥170201506-202207

8401

8410

89429LRING, O(FOR OIL TEMPERATURE SENSOR)

main90301-06004iNSP170¥120201506-202207

9030113025

main90301-13025¥170

9094901C99

main90949-01C99¥100

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9155180830

main91551-80830¥80

91611B0616

main91611-B0616¥110

9167180816

main91671-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

43 parts on this diagram · 2 diagrams in section
