FUEL INJECTION SYSTEM

0001 1 0002 1

1603

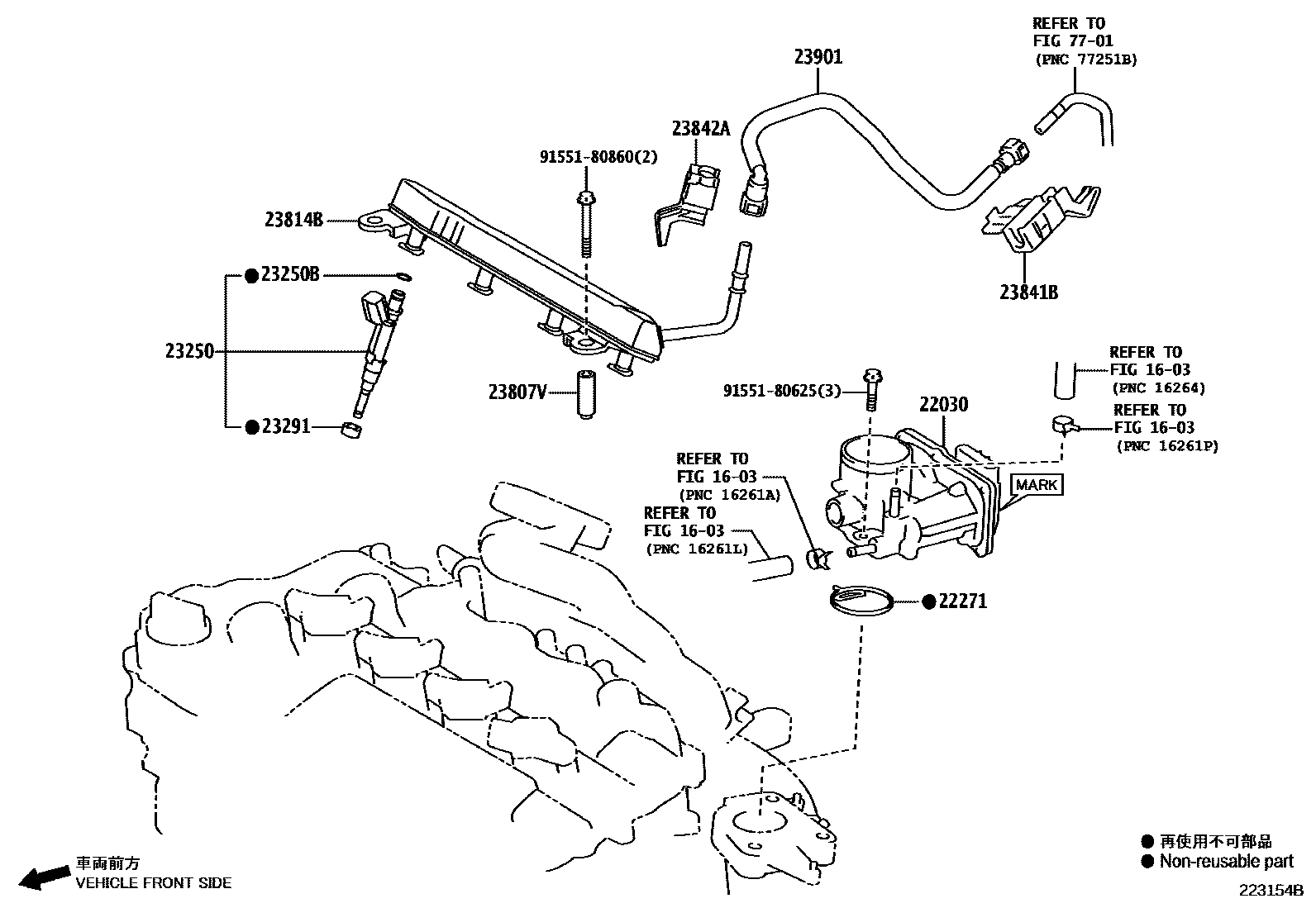

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47040i1NZFXE..NHP170201507-202207

main22030-47060i2NRFKE..NSP170201506-202207

MARK=22030-47060

main22030-47090i2NRFKE..NSP170201506-202207

MARK=22030-47090

22271GASKET, THROTTLE BODY

main22271-21070i1NZFXE..NHP170201507-202207

main22271-47050i2NRFKE..NSP170201506-202207

23250INJECTOR ASSY, FUEL

main23209-21091i1NZFXE..NHP170201507-201809

main23209-21110i1NZFXE..NHP170201809-202207

main23209-49245i2NRFKE..NSP170201506-202207

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1NZFXE,2NRFKE..NHP170,NSP170201506-202207

main90301-07037i1NZFXE..NHP170201908-202207

(J)

main90301-C0072i1NZFXE..NHP170201908-202207

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1NZFXE,2NRFKE..NHP170,NSP170201506-202207

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFXE..NHP170201507-202207

main23891-47030i2NRFKE..NSP170201506-202207

23814BPIPE, FUEL DELIVERY

main23814-21073i1NZFXE..NHP170201507-202207

main23814-47050i2NRFKE..NSP170201506-201805

sub23814-47051

main23814-47051i2NRFKE..NSP170201806-202207

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFXE..NHP170201507-202207

main23841-37090i2NRFKE..NSP170201506-202207

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21050i2NRFKE..NSP170201506-202207

23901TUBE SUB-ASSY, FUEL

main23901-21220i1NZFXE..NHP170201507-202207

main23901-47080i2NRFKE..NSP170201506-202207

7701

9155180625

main91551-80625

9155180860

main91551-80860

14 parts on this diagram · 2 diagrams in section
