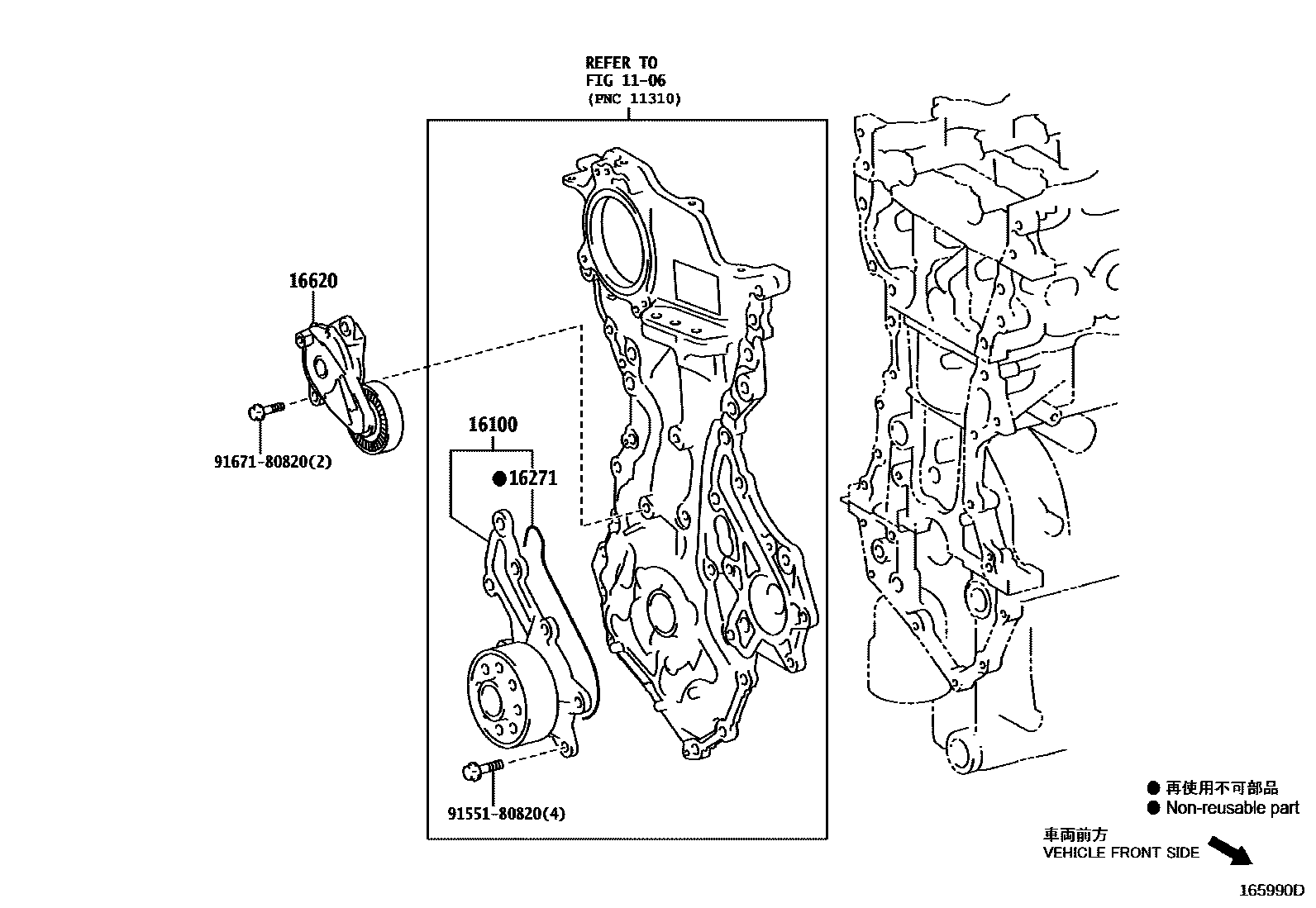

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-80013i2NRFKE..NSP170¥7,900201506-202105

sub16100-80018¥7,900

main16100-80018i2NRFKE..NSP170¥7,900202105-202207

main161A0-29015i1NZFXE..NHP170¥15,000201507-201809

main161A0-39035i1NZFXE..NHP170¥15,000201809-202207

16271GASKET, WATER PUMP

main16271-0Y030i2NRFKE..NSP170¥650201506-202207

main16271-37020i1NZFXE..NHP170¥470201507-202207

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47030i2NRFKE..NSP170¥13,500201506-202007

sub16620-47031¥10,100

main16620-47031i2NRFKE..NSP170¥10,100202007-202207

9155180820

main91551-80820¥80

9167180820

main91671-80820¥80

6 parts on this diagram · 2 diagrams in section
