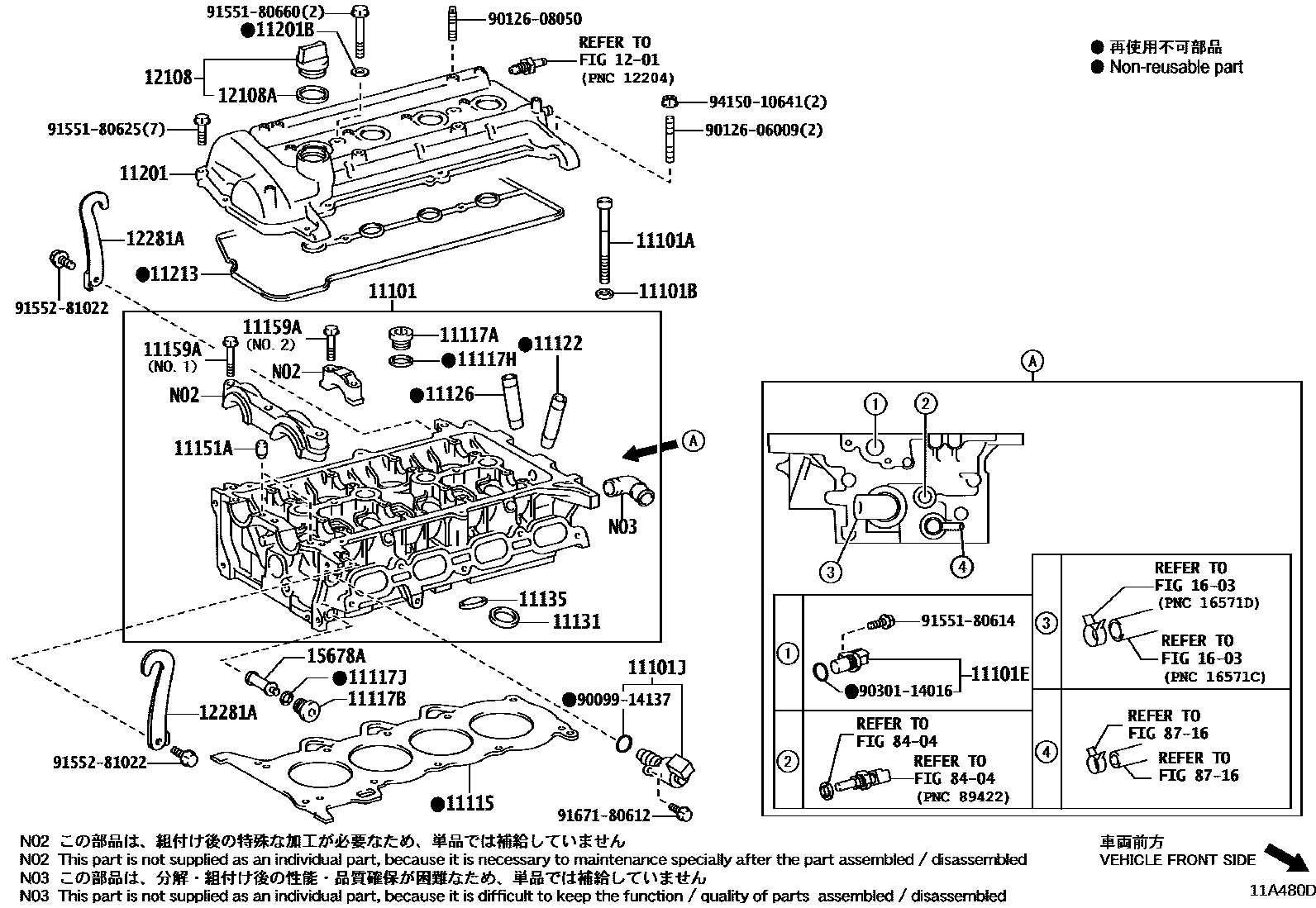

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD,*120
STD,*272
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
L=12.5,OD=8
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
sub91551-80635
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
15678AFILTER, OIL CONTROL VALVE
1603
8404
8716
9009914137
main90099-14137
9012606009
main90126-06009
9012608050
main90126-08050
9030114016
main90301-14016
9155180614
main91551-80614
9155180625
main91551-80625
9155180660
main91551-80660
9155281022
main91552-81022
9167180612
main91671-80612
9415010641
main94150-10641
36 parts on this diagram · 4 diagrams in section
