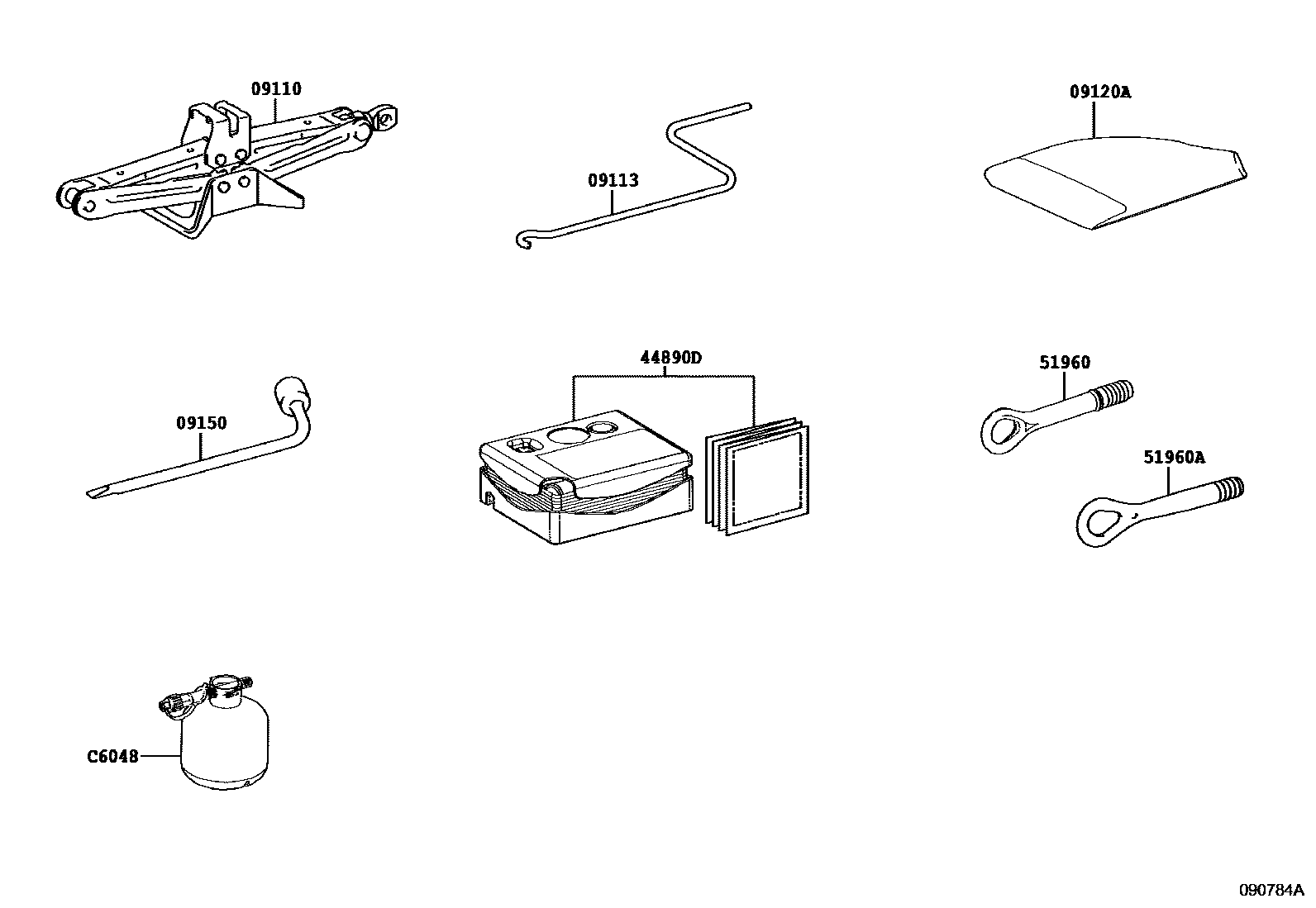

STANDARD TOOL

09110JACK ASSY

main09111-72020iNHP170,NSP170201506-202207

09113HANDLE, JACK

main09113-20050iNHP170,NSP170201506-201705

main09113-52060iNHP170,NSP170201706-202207

09120ACASE, TOOL

main09120-52080iNHP170,NSP170201506-202207

09150WRENCH, HUB NUT BOX

main09150-40010iNHP170,NSP170201506-202207

44890DCOMPRESSOR ASSY, AIR

main42680-52020iNHP170,NSP170201506-202009

sub42680-52021

main42680-52021iNHP170,NSP170202010-202207

51960HOOK ASSY, FRONT

main51961-12020iNHP170,NSP170201711-202207

main51961-42040iNHP170,NSP170201506-201711

51960AHOOK ASSY, REAR

main51961-12021iNHP170,NSP170201506-202207

C6048REPAIR SET, TIRE

mainC604852050iNHP170,NSP170201506-202009

subC6048-52051

mainC604852051iNHP170,NSP170202010-202207

8 parts on this diagram · 1 diagram in section
