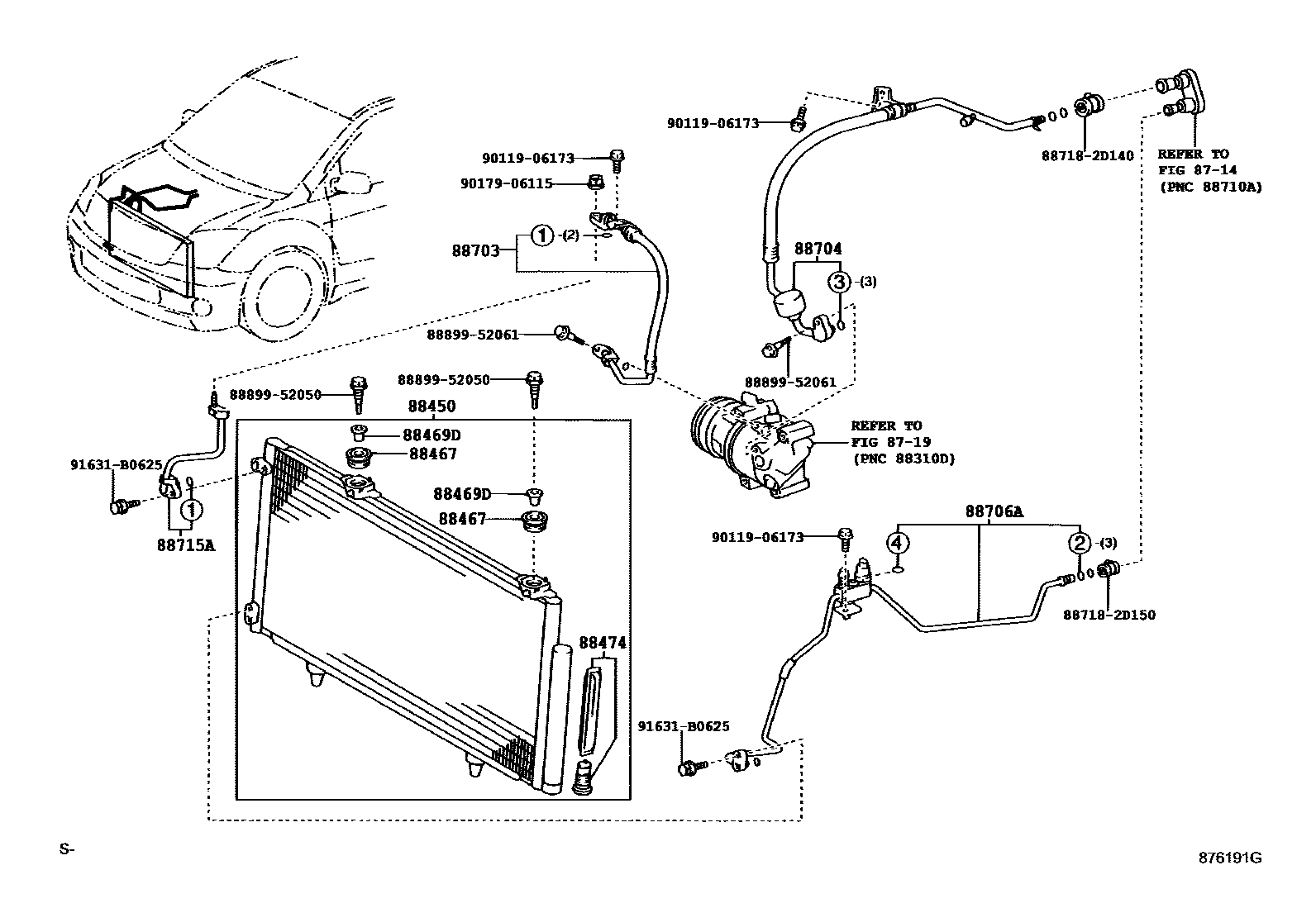

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-52151iNCP61200308-200507

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iNCP61200308-200507

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNCP61200308-200507

88474DRYER, COOLER

main88474-17010iNCP61200308-200507

88703HOSE SUB-ASSY, DISCHARGE

main88703-52060iNCP61200308-200507

88704HOSE SUB-ASSY, SUCTION

main88704-52070iNCP61200308-200507

88706ATUBE SUB-ASSY, LIQUID, A

main88706-52250iNCP61200308-200507

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-52090iNCP61200308-200507

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952050COVER, EVAPORATOR

main88899-52050

8889952061COVER, EVAPORATOR

main88899-52061

9011906173

main90119-06173

9017906115

main90179-06115

91631B0625

main91631-B0625

17 parts on this diagram · 2 diagrams in section
