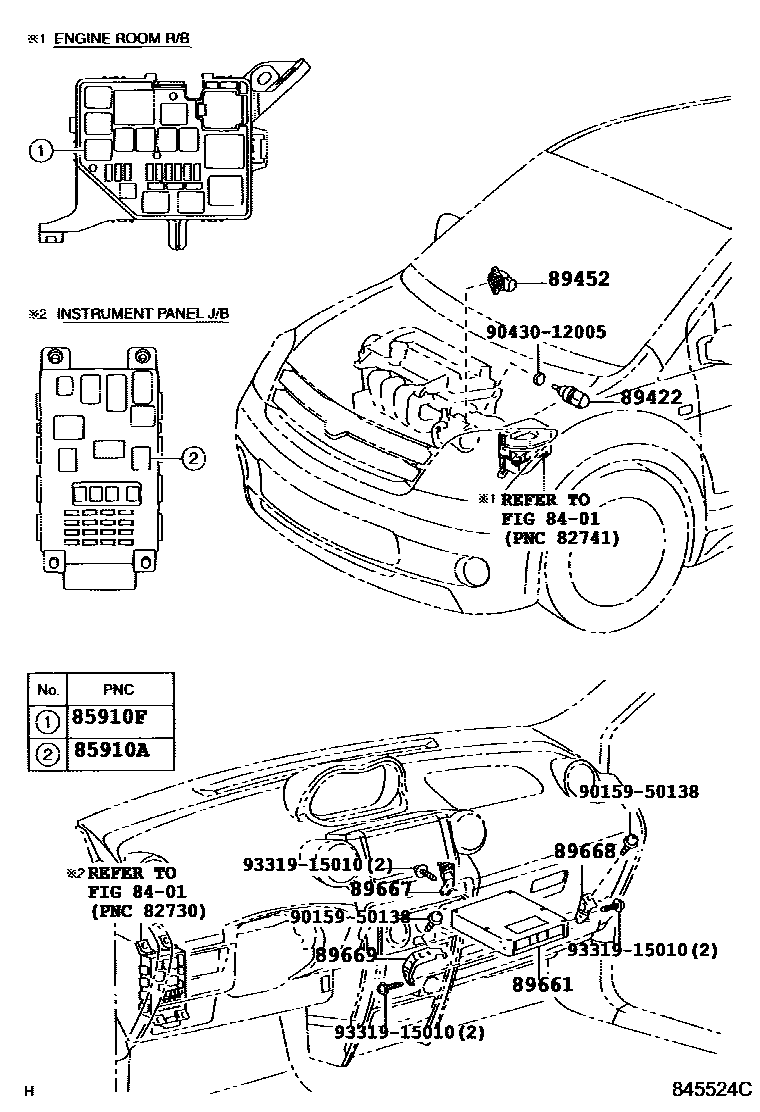

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNCP61200308-200507

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iNCP61200308-200507

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP61200308-200507

MARK 89422-16010*369

main89422-16010iNCP61200507-200612

main89422-22030iNCP61200308-200507

MARK 89422-22030*369

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP61200308-200612

89661COMPUTER, ENGINE CONTROL

main89666-52320iNCP61..5F200308-200507

main89666-52330iNCP61..4FC200308-200507

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52120iNCP61200308-200507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52130iNCP61200308-200507

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52080iNCP61200308-200507

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
