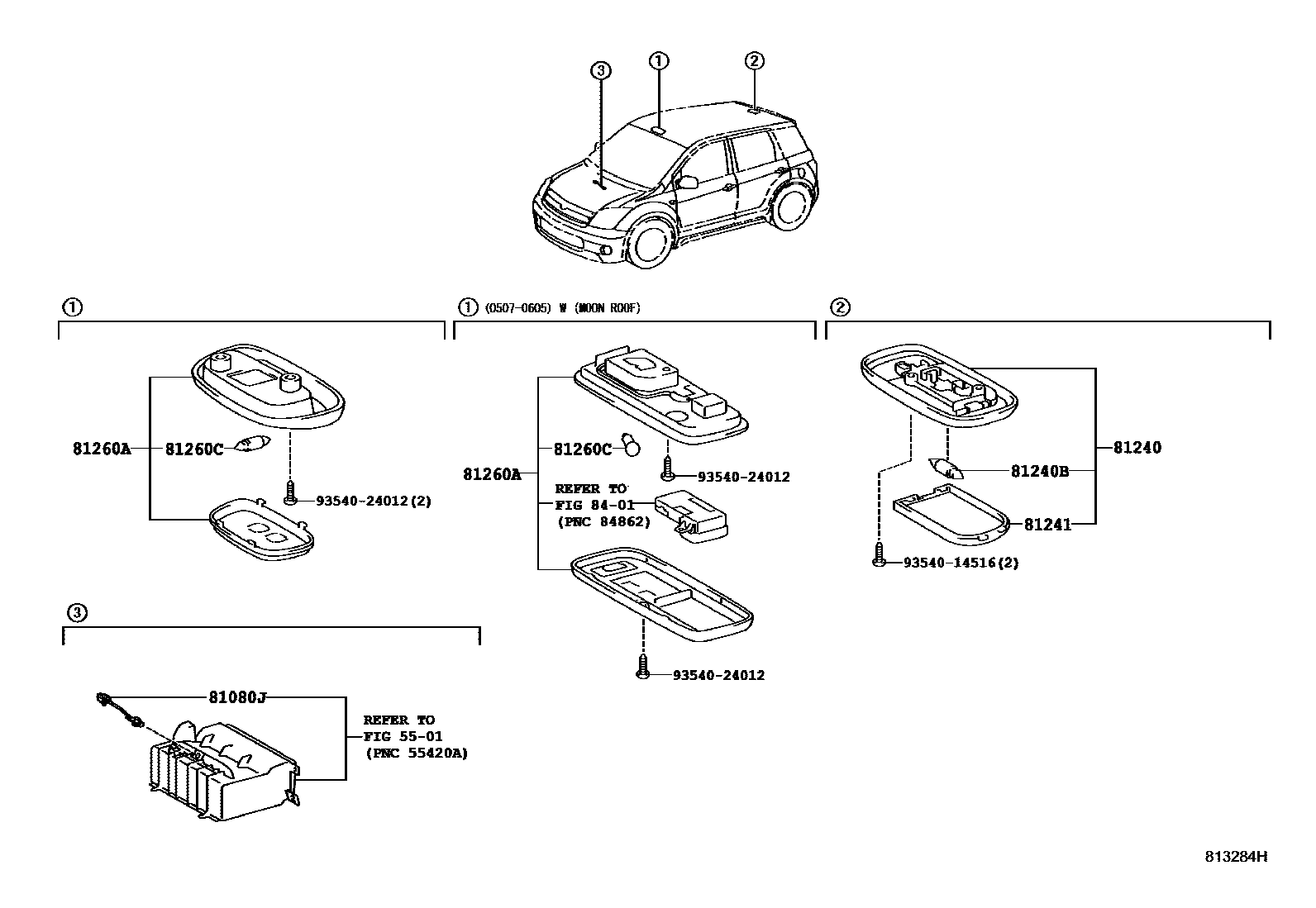

INTERIOR LAMP

5501

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-52020iNCP61200507-200612

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0iNCP61200308-200507

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP61200308-200507

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP61200507

81260ALAMP ASSY, MAP

main81260-20280-B1supersedes 81260-46010-B2iNCP61200507-200605

WITH(MOON ROOF),LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12014supersedes 90981-14004iNCP61200507-200605

12V 10W,WITH(MOON ROOF)

8401

9354014516

main93540-14516

9354024012

main93540-24012

10 parts on this diagram · 1 diagram in section
